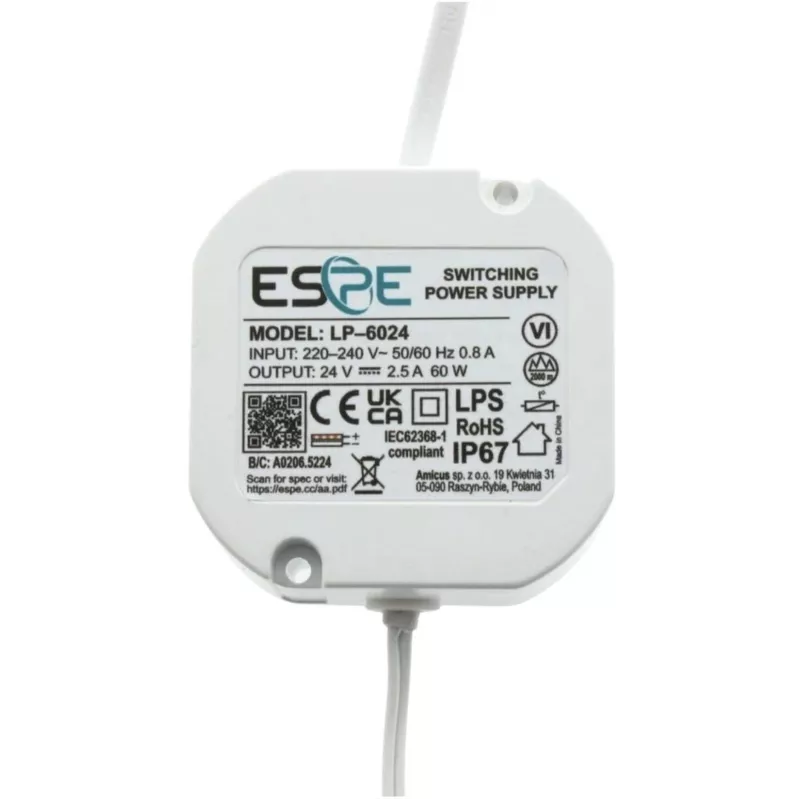

ESPE LP-6024 alimentatore switching 24V 60W 2,5A IP67

The ESPE LP-6024 is a high-quality flush-mount switching power supply designed for reliable performance in demanding environments. With an IP67 rating, it is dust-tight and protected against temporary immersion in water, making it ideal for outdoor or industrial applications. This constant voltage power supply delivers a stable 24V DC output at 2.5A (60W) and operates from a universal AC input of 100-240V.

Advantages

Compact and robust design with passive cooling ensures silent operation and long service life. Built-in protection features including overload, short circuit, over voltage, and over temperature safeguard connected equipment. High efficiency of 87% reduces energy waste and heat generation.

Suitable for

• LED lighting systems
• Industrial automation and control panels
• Security and surveillance equipment
• Outdoor electronic devices requiring a sealed power source

Key specifications

• Input: 100-240V AC, 50/60Hz
• Output: 24V DC, 2.5A, 60W
• IP67 rated for dust and water ingress protection
• Protection: OCP, SCP, OVP, OTP
• Operating temperature: -20°C to +50°C
• Certifications: CE, RoHS

Recommendations

For best performance, ensure adequate ventilation around the power supply. Use appropriate wire gauges for input and output connections. This unit is not suitable for direct connection to moving parts or in locations subject to continuous vibration.
