EXP-Zigbee-RN Ropam Gateway Zigbee per pannelli di controllo serie Neo-IP-64

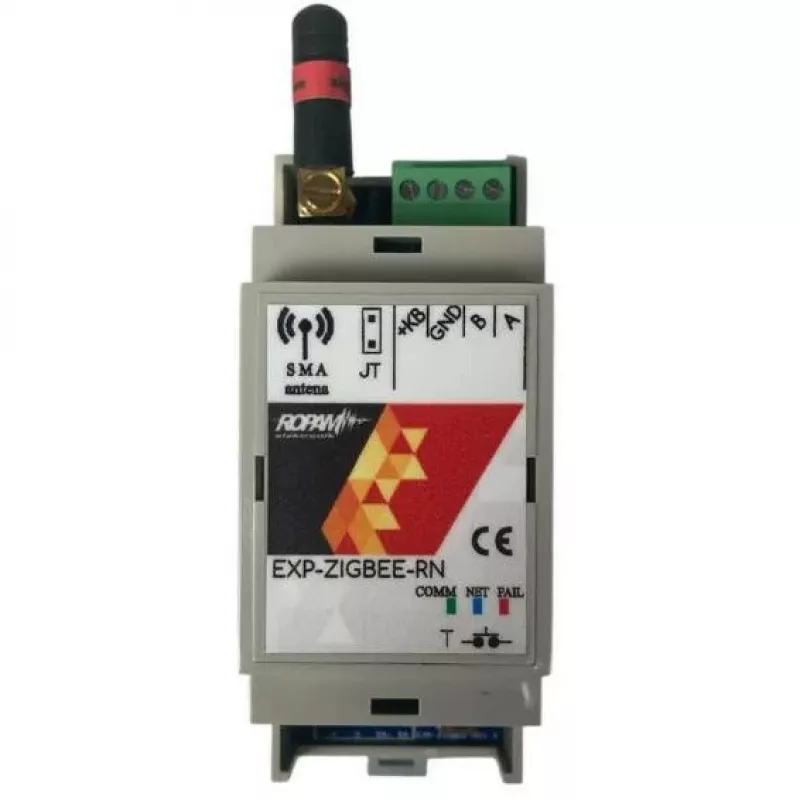

The EXP-Zigbee-RN is a dedicated Zigbee gateway designed by Ropam to seamlessly integrate Zigbee devices with control panels from the Neo-IP-64 series. It acts as a bridge between Zigbee wireless sensors and actuators and the RopamNET RS485 bus, enabling advanced home and building automation functionalities.

Advantages

This gateway allows you to expand your Ropam security and automation system with a wide range of Zigbee 3.0 compatible devices. It supports up to 64 Zigbee devices, providing extensive coverage for smart lighting, temperature control, door locks, and more. The compact design and easy wall or enclosure mounting make installation straightforward. Firmware updates can be performed via USB or over the RopamNET bus, ensuring future compatibility and feature enhancements.

Suitable for

• Integration of Zigbee sensors and actuators with Ropam Neo-IP-64, NeoGSM-IP-64, NeoGSM-IP-64-PLUS, and NeoGSM-IP-64-GPS control panels
• Smart home and building automation projects requiring wireless expansion
• Security systems that need to incorporate Zigbee-based detectors and alarms

Key specifications

• Wireless Protocol: Zigbee 3.0
• Operating Frequency: 2.4 GHz
• Max Zigbee Devices Supported: Up to 64
• Communication Interface (Panel): RopamNET (RS485 bus)
• Power Supply: 12V DC (from RopamNET bus)
• Max Current Consumption: 50 mA
• Antenna Type: Internal
• Typical Indoor Range: Up to 20m (environment dependent)
• LED Indicators: Power, RopamNET status, Zigbee network status
• Firmware Update: Via USB or RopamNET
• Security: AES-128 encryption
• Operating Temperature: -10°C to +55°C
• Humidity Range: 10% to 90% RH (non-condensing)
• Enclosure Material: Plastic
• Mounting Type: Wall mount / Enclosure mount
• Certification: CE

Recommendations

For optimal performance, ensure your Ropam control panel firmware is up to date. The gateway is designed for indoor use only. When mounting, avoid placing it in metal enclosures that may shield the Zigbee signal. Use the USB port for initial configuration or firmware updates if needed.
