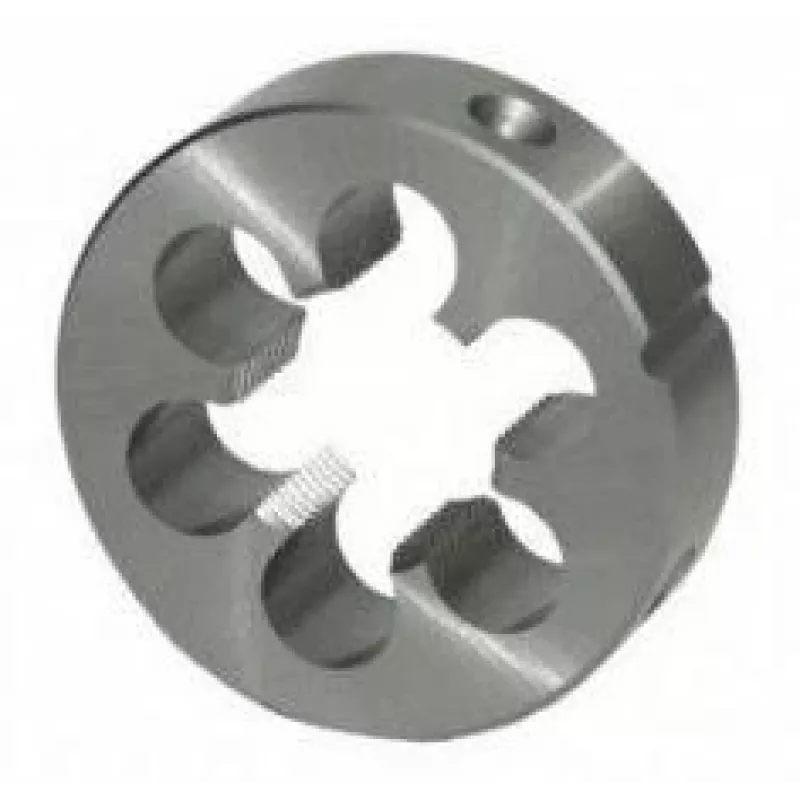

FANAR M24x2 DIN 22568 (6g) HSS 800 filiera circolare

The FANAR NARZYNKA M24x2 DIN-22568 (6g) HSS 800 is a high-quality round die designed for external threading of metric ISO threads. Manufactured from premium high-speed steel (HSS), this die offers excellent durability and cutting performance for a wide range of materials including steel, cast iron, and non-ferrous metals. With a thread tolerance class of 6g, it ensures precise and consistent thread profiles. The die features a bright finish and is suitable for use with a compatible die stock size of 65 mm.

Advantages

This round die provides reliable and accurate threading, thanks to its high-speed steel construction and precise manufacturing standards. The 4 cutting edges ensure efficient material removal and smooth thread formation. The die's hardness of 62-64 HRC guarantees long tool life even under demanding conditions. Its compatibility with standard die stocks makes it easy to integrate into existing setups.

Suitable for

• External threading of metric ISO threads (M24x2)
• General purpose threading on steel, cast iron, and non-ferrous metals
• Workshop and industrial applications requiring precise thread tolerances (6g)
• Use with die stocks having a 65 mm opening

Key specifications

• Thread Type: Metric ISO Thread
• Nominal Thread Diameter: M24
• Thread Pitch: 2.0 mm
• Thread Standard: DIN 22568
• Thread Tolerance Class: 6g
• Material: High-Speed Steel (HSS)
• Die Type: Round Die (Circular Die)
• Cutting Direction: Right-Hand
• Outer Diameter: 65 mm
• Thickness: 18 mm
• Number of Cutting Edges: 4
• Finish: Bright (Uncoated)
• Manufacturing Standard: ISO 2568
• Hardness: 62-64 HRC
• Thread Profile Angle: 60°
• Product Series: HSS 800

Recommendations

For optimal results, use this die with a compatible die stock (65 mm) and apply appropriate cutting fluid. Ensure the workpiece is securely clamped and the die is aligned correctly to achieve accurate threads. Regular cleaning and lubrication will extend the tool's lifespan.
