Faro Brennenstuhl 1178030901 30W LED grigio IP44

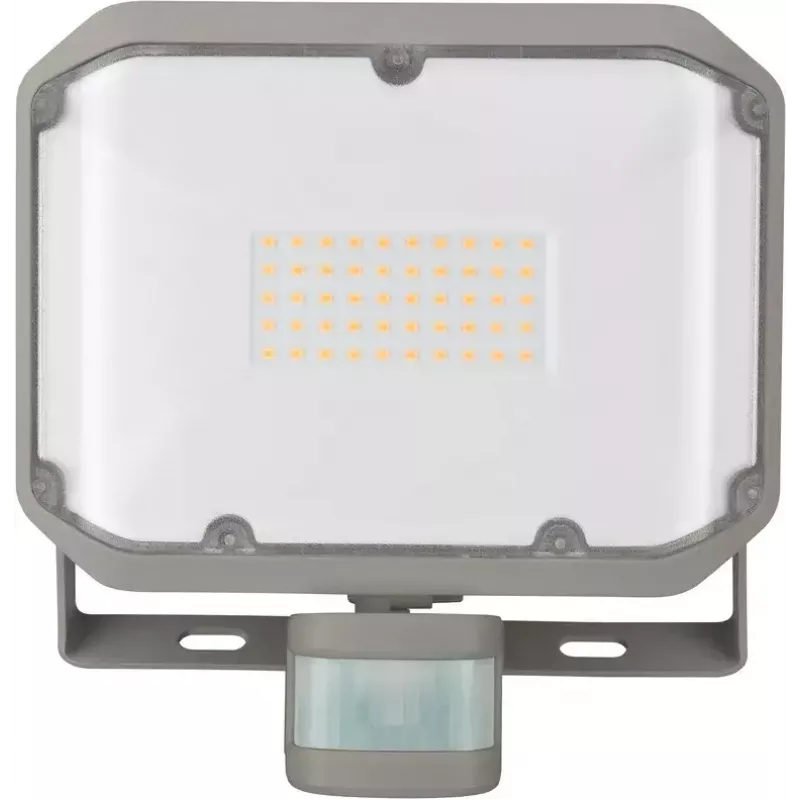

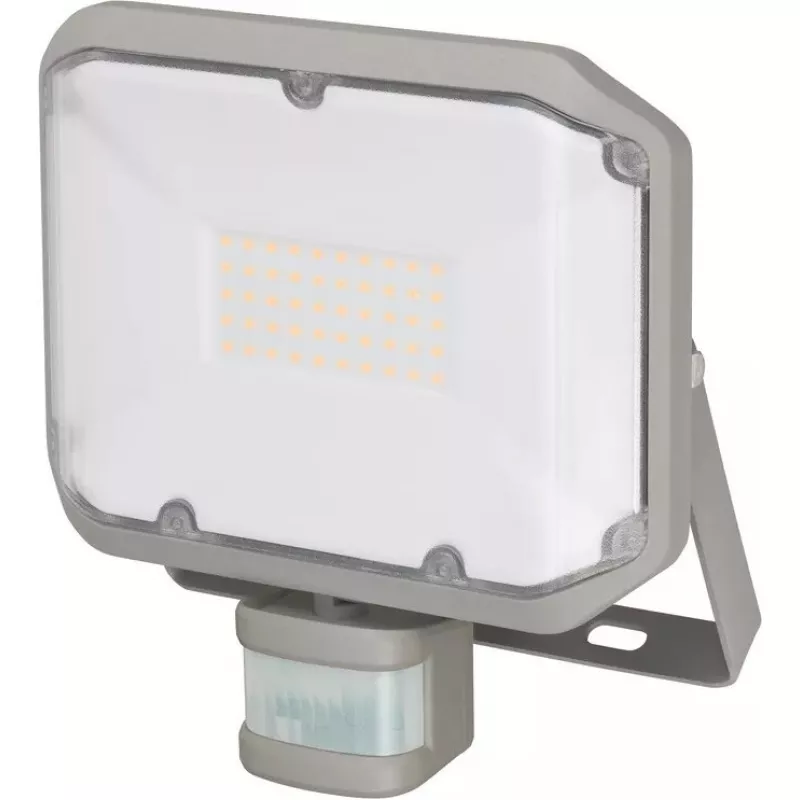

The LED Floodlight AL 3050 with PIR for wall mounting is a 30 W LED floodlight designed for indoor and outdoor use. It features an aluminium housing with safety glass, IP44 protection against foreign bodies and splash water, and a passive infrared (PIR) motion detector with an adjustable twilight switch. The unit houses 50 OSRAM SMD LEDs for long service life and wide-area light diffusion and is intended for mounting on walls in locations such as entrances, driveways or carports.

Advantages

The floodlight provides energy-efficient 30 W LED illumination with a compact grey metal housing and safety glass for impact protection. IP44 rating allows use in sheltered outdoor areas. The PIR motion detector offers adjustable detection up to 12 m and a 180° coverage angle, while the lighting duration is configurable from 10 seconds to about 4 minutes. The included OSRAM SMD LEDs ensure long life and even light distribution for wide-area coverage.

Suitable for

• Entrance areas and porches
• Driveways and pathways
• Carports and garage perimeters
• Sheltered outdoor walls and covered terraces

Key specifications

• Brand: Brennenstuhl, MPN: 1178030901, EAN: 4007123675753
• Power: 30 W
• Protection class: IP44 (protected against solid objects and splash water)

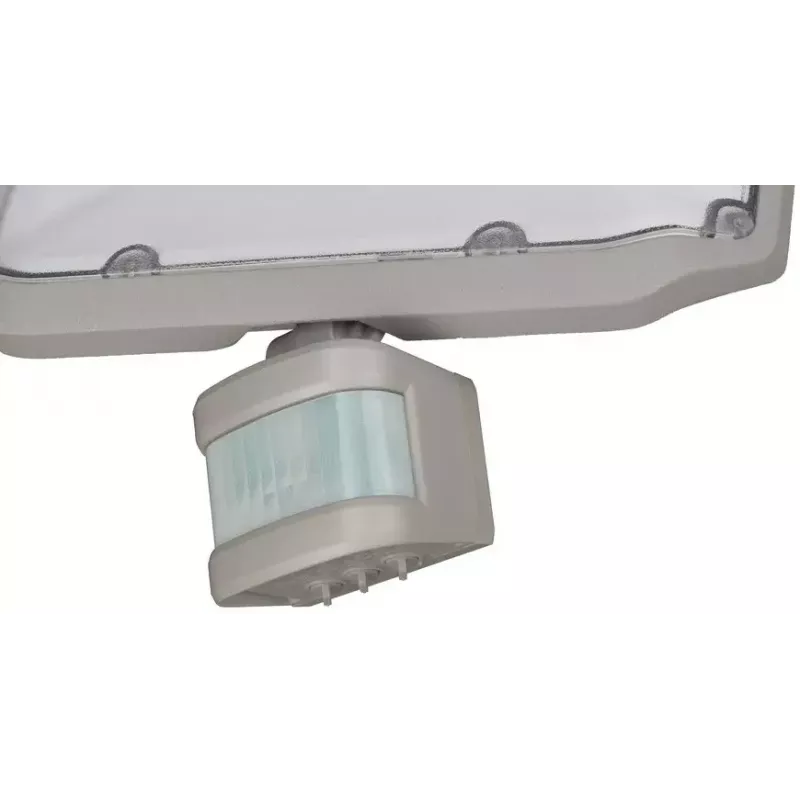

• Sensor: PIR motion detector, detection range up to 12 m, 180° coverage
• LEDs: 50 OSRAM SMD LEDs

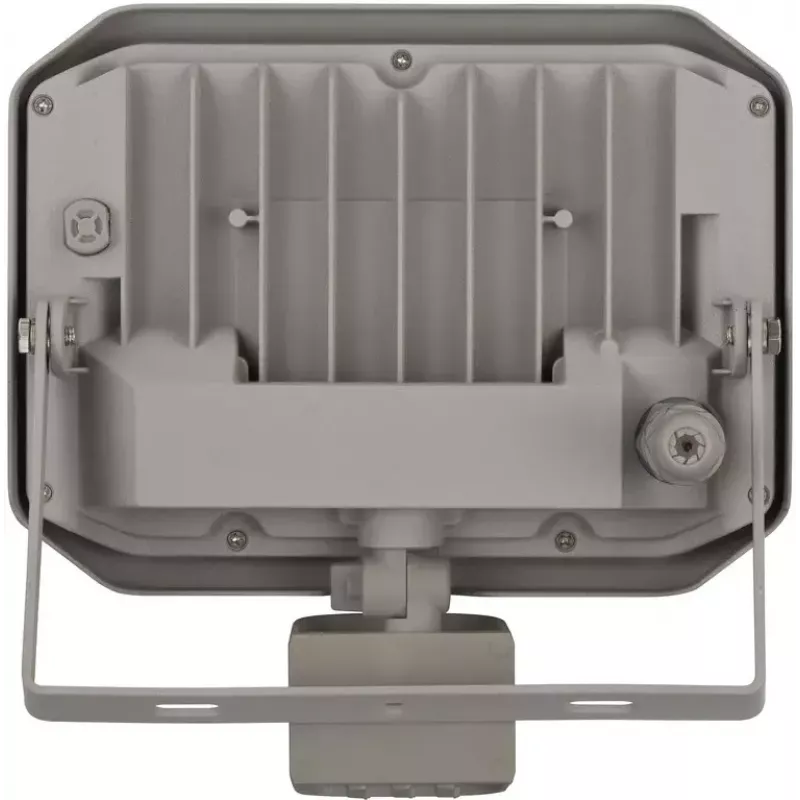

• Housing material: aluminium with safety glass pane
• Dimensions (approx.): width 52 mm, depth 216 mm, height 220 mm
• Colour: Grey
• Weight: 0.86 kg

How to use

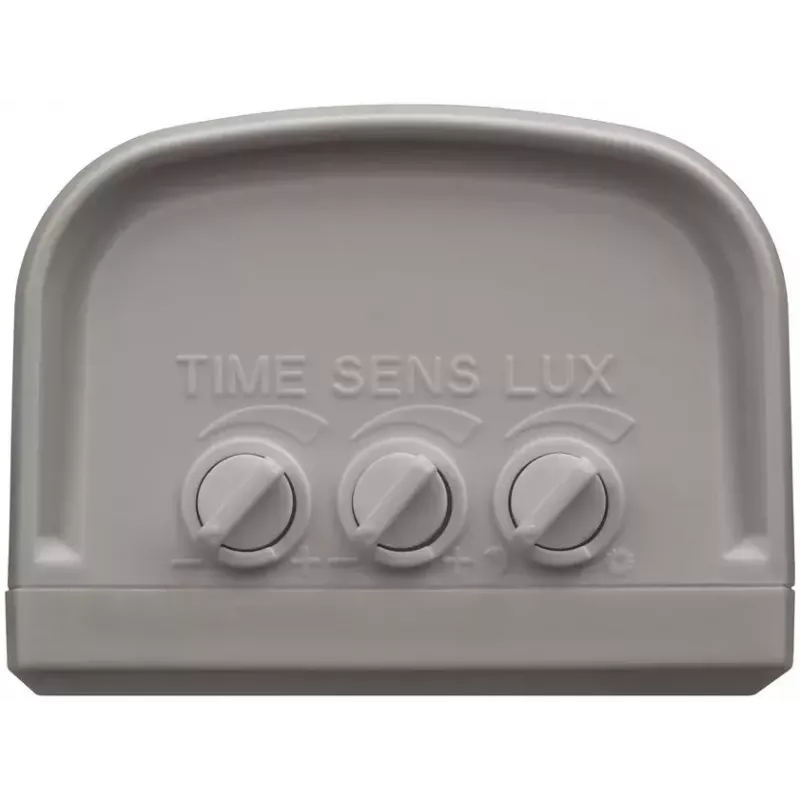

Mount the floodlight on a suitable wall surface following local electrical regulations and switch off power before installation. Position and fix the unit with appropriate screws and anchors for the wall material, then connect the supply cable to the mains wiring according to the wiring diagram. Adjust the PIR motion detector horizontally and vertically to set the preferred detection zone. Set the twilight threshold and the lighting duration between 10 seconds and approximately 4 minutes to match the desired behaviour.

Recommendations

For reliable outdoor operation, install the floodlight under partial shelter when possible and ensure the PIR sensor has an unobstructed view of the area to avoid false triggers. Clean the safety glass periodically and check mounting hardware and electrical connections during routine maintenance.
