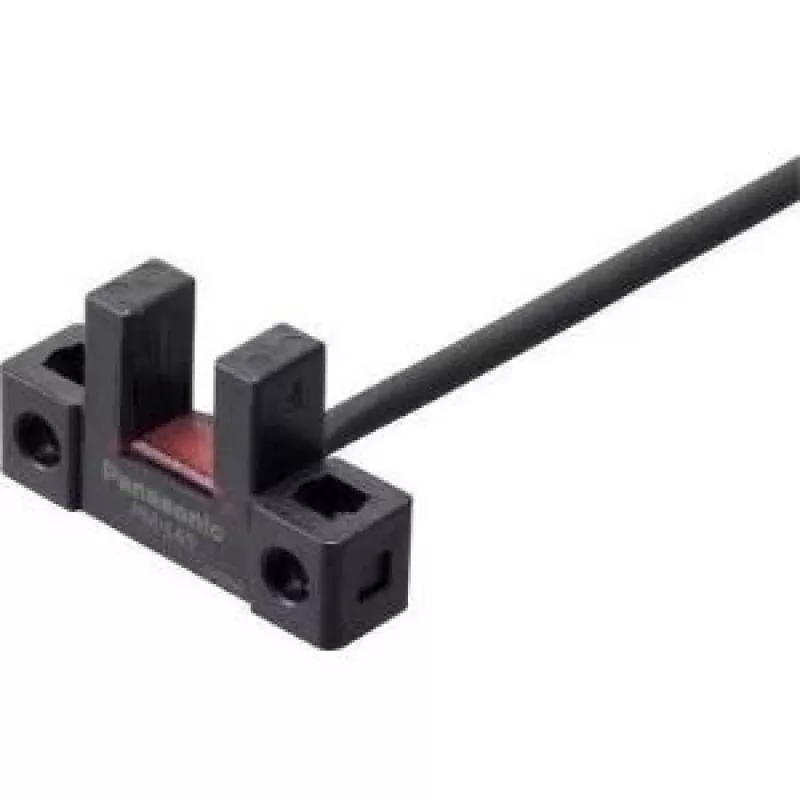

Fotocellula Panasonic PM-L45, tipo L, commutazione chiaro/scuro, 5–24 V DC

The Panasonic PM-L45 is an L-type photocell light barrier designed for compact, reliable optical switching in industrial and automation applications. Operating on a 5–24 V DC supply, it supports both bright-on and dark-on switching modes to detect object presence, passage or position. Its L-shaped housing and straightforward electrical characteristics make it suitable for integration into conveyor systems, access control mechanisms and machine monitoring tasks where a small but dependable light sensor is required.

Advantages

The PM-L45 provides flexible switching logic with selectable bright/dark operation, allowing adaptation to different target reflectivity and installation layouts without changing hardware. Its wide supply range of 5–24 V DC allows compatibility with common control systems and power supplies. The L-type form factor supports easy mounting near conveyor belts, guides or narrow machine openings, and the optical design ensures consistent detection of objects and presence even with varying surface conditions.

Suitable for

• Object detection on conveyor lines
• Presence sensing in access control and gates
• Part counting and position verification in assembly lines
• Automation sensors in packaging and material handling

Key specifications

• Operational voltage: 5–24 V DC
• Switching modes: bright-on and dark-on selectable
• Form factor: L-type housing for corner or narrow-space mounting
• Function: optical light barrier / photoelectric sensor for object detection
• Typical applications: conveyor monitoring, presence detection, machine automation

How to use

Install the PM-L45 so the sensing axis aligns with the target path; the L-shaped housing facilitates mounting in tight spaces or at corners. Connect the sensor to a compatible 5–24 V DC supply and the control input according to the system wiring diagram. Select the required switching logic (bright-on or dark-on) based on whether the detected objects are more reflective or absorbent relative to the background. After mounting and wiring, perform an alignment and sensitivity check by passing representative targets through the detection zone and verify reliable switching under actual operating conditions.

Recommendations

Position the sensor to minimize exposure to stray ambient light and avoid direct sunlight on the sensing aperture. For stable detection, use consistent background surfaces or adjust the switching mode to suit object reflectivity. Regularly inspect the sensing window for dust or debris and clean with a soft, dry cloth to maintain performance.
