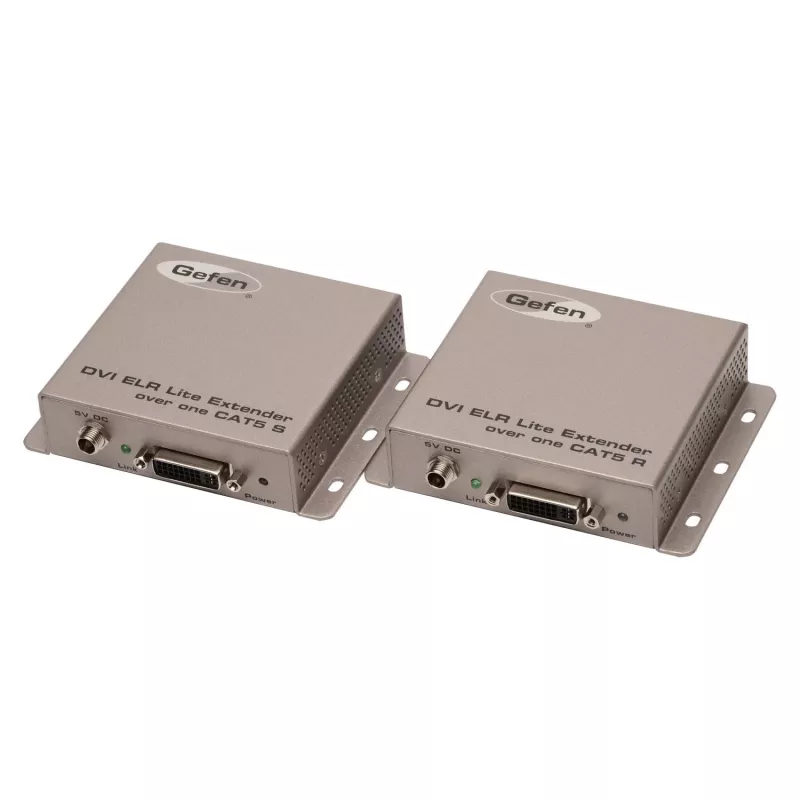

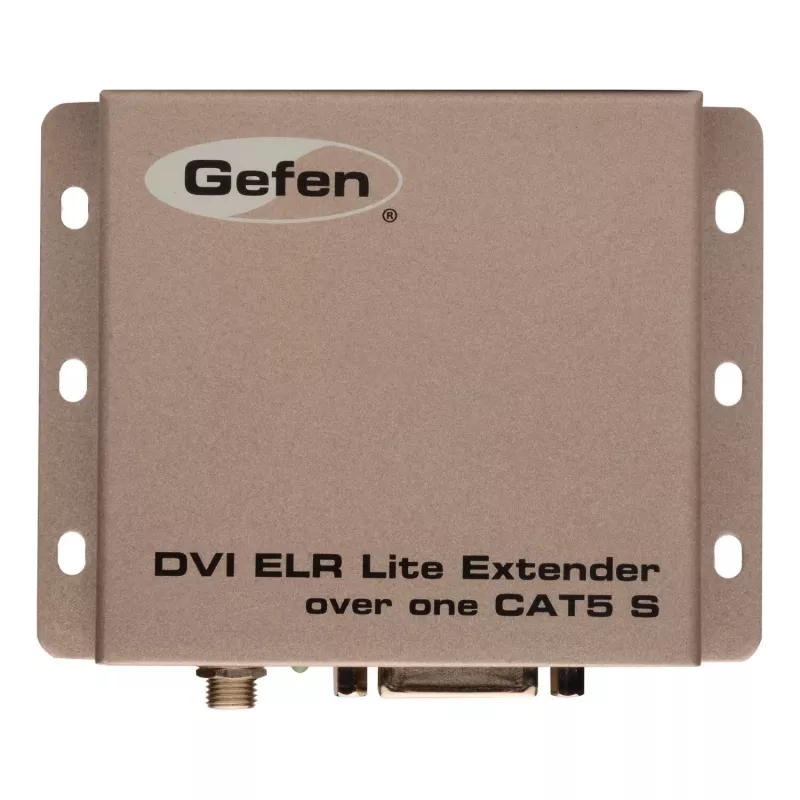

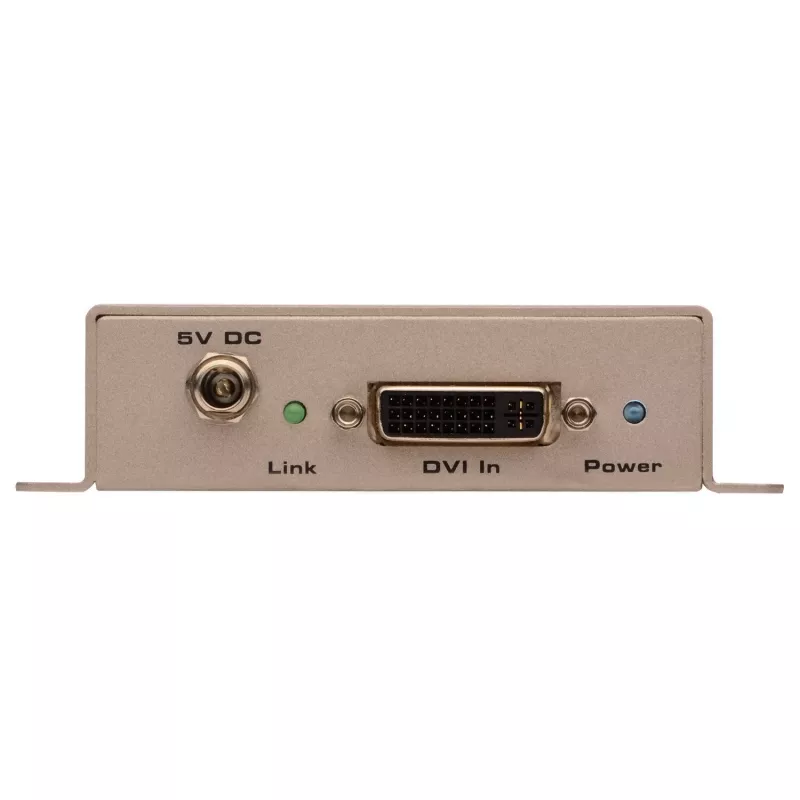

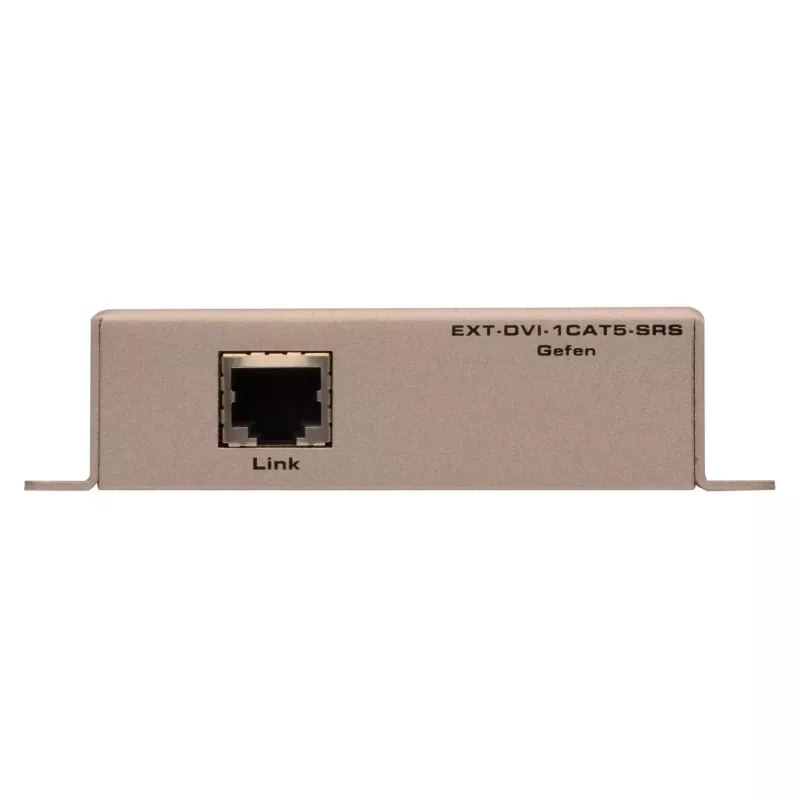

Gefen DVI ELR-Lite extender su CAT5, unità trasmettitore e ricevitore

DVI extender set transmits DVI-D single-link video up to 50 meters over a single CAT5e/6 cable, supporting resolutions up to 1920x1200 or 1080p Full HD. The sender and receiver pair extends digital video signals reliably for professional AV installations.

Advantages

Extends DVI signals beyond standard cable limits using cost-effective CAT5e/6 cabling. Supports HDCP and EDID pass-through for compatibility with source devices and displays. Metal housings with included mounting brackets allow secure installation in equipment racks or behind displays.

Suitable for

• Digital signage and video walls in retail or corporate environments
• Classroom and conference room AV systems with remote displays
• Home theater setups requiring long cable runs from source to projector

Key specifications

• Signal type: DVI-D single link
• Maximum resolution: 1920x1200 (WUXGA) or 1080p Full HD
• Maximum distance: 50 meters (165 feet) over CAT5e/6
• Connectors: DVI-I input/output, RJ-45 link
• Power supply: 5V DC (two units included)
• Operating temperature: 0 to +40 °C

Recommendations

For reliable long-distance DVI extension, use solid-core CAT6 cable and ensure proper grounding to maintain signal integrity.
