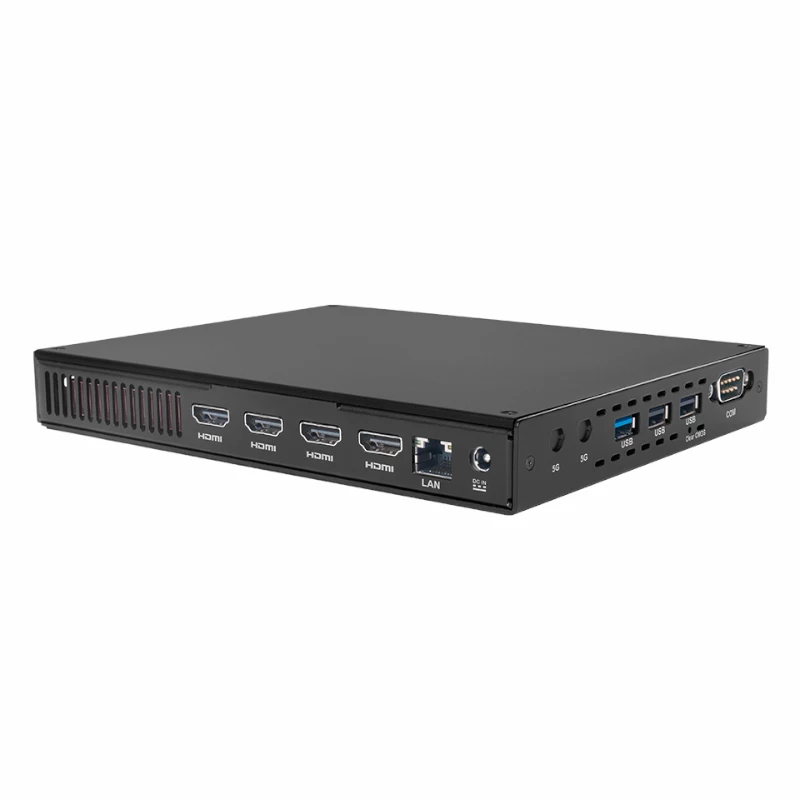

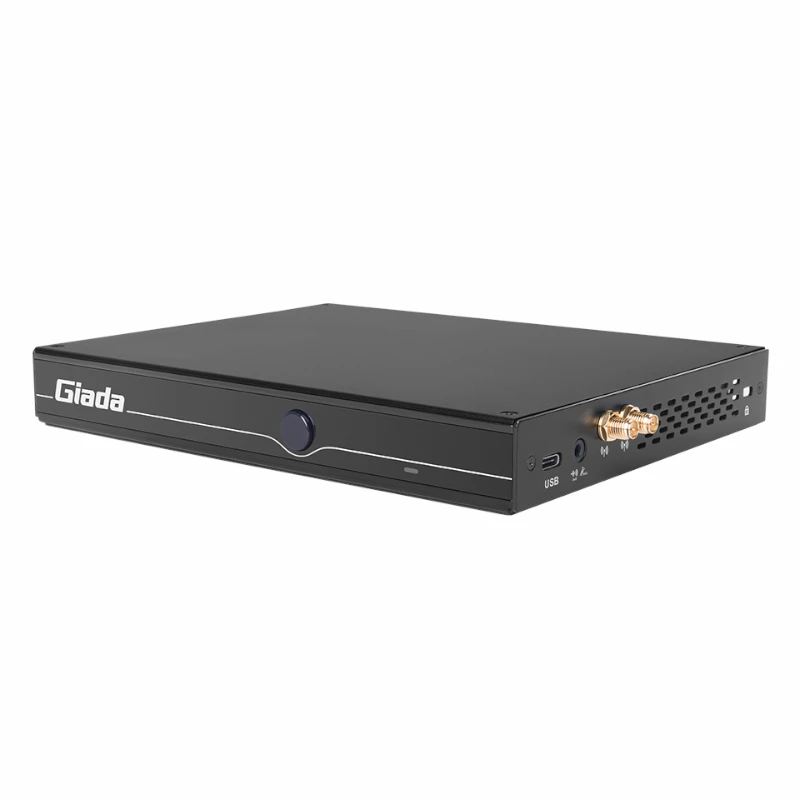

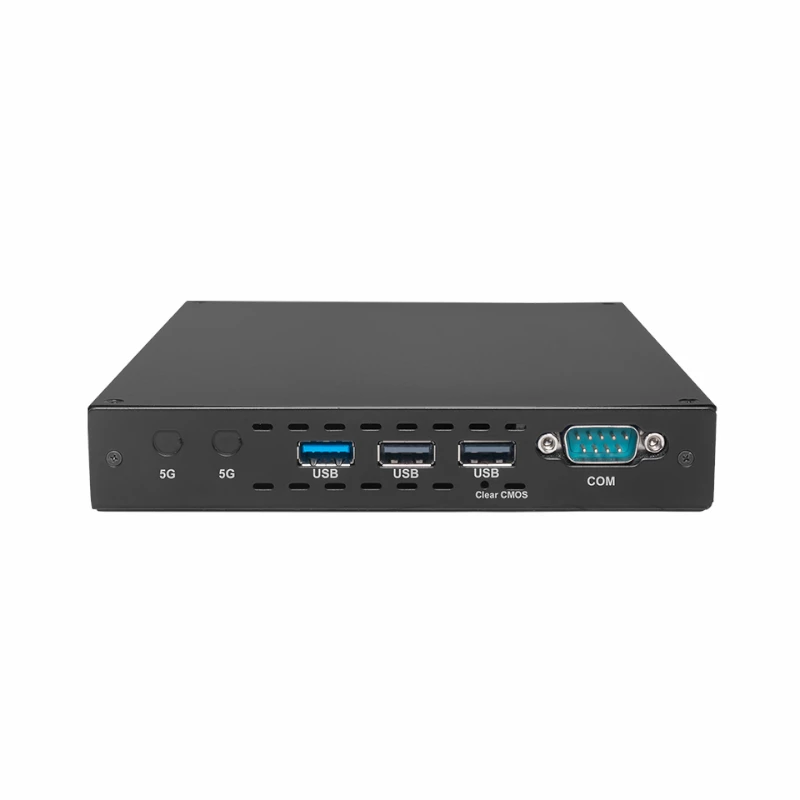

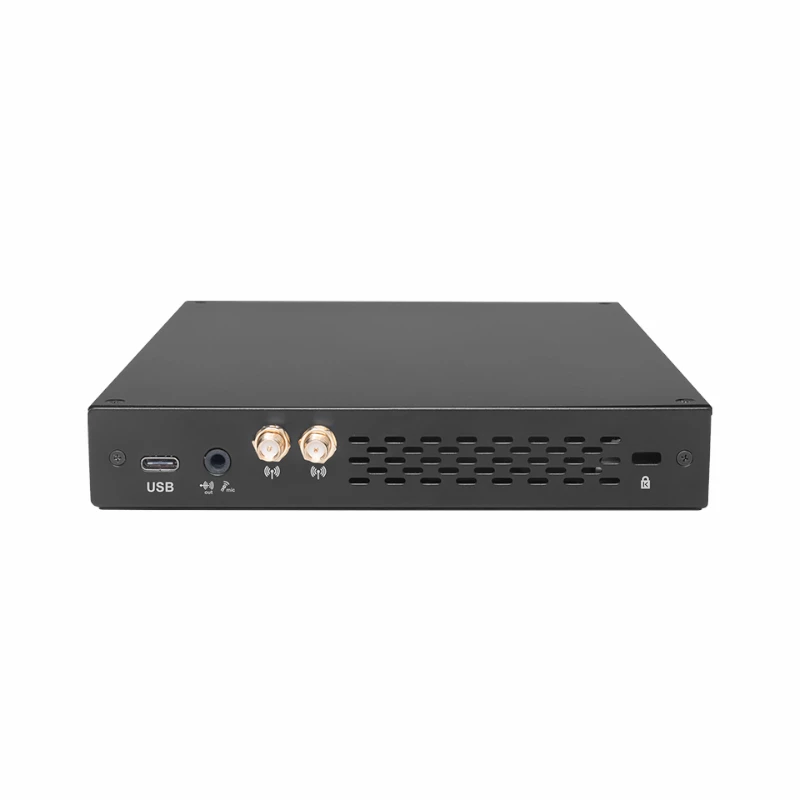

Giada D613 Mini PC, Intel Core i3-1315U, 2x DDR4 3200MHz

The Giada D613 Mini PC is powered by an Intel Core i3-1315U processor and supports up to 64GB of DDR4-3200MHz memory. It features four HDMI ports that can drive 4K displays simultaneously, making it suitable for digital signage and multimedia applications.

Key features

• Intel Core i3-1315U processor
• 4 x HDMI, supporting 4K display
• 2 x SO-DIMM DDR4 memory, up to 64GB
• 1 x M-key M.2 (2242/2280) for SSD
• Supports RJ45, Wi-Fi 6 (CNVi), and 3G/4G/5G Ethernet access
• Intel Hardware Shield
• Supports 5G via Quectel RM50XQ module (certified compatible with D613)
• Watchdog timer 0~255 second time out support
• Auto power on
• Desk/wall mounting and VESA mounting kit (JZ183)

Specifications

• Brand: Giada
• MPN: D613-1315U40N0G-GIA
• Processor: Intel Core i3-1315U, 3.30GHz (up to 4.50GHz), 6 cores
• BIOS: AMI EFI 64 Mbit
• Memory type: DDR4-3200MHz
• Memory socket: 2 x SO-DIMM
• Max memory size: 64GB
• GPU: Intel UHD Graphics
• Graphic engine: DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K 60fps 12b 4:2:0 HEVC/VP9/SCC
• HDMI: 4 x HDMI (max. 4096 x 2304 @60 Hz)
• Network controller: 1 x Intel i219LM Gigabit Ethernet
• Interface: 1 x RJ45
• Mobile network: 1 x B-Key M.2 (3042/3052) for 3G/4G/5G, 1 x SIM slot
• Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT, support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi)
• USB: 1 x USB3.2 Gen2, 2 x USB2.0
• USB Type-C: 1 x USB Type-C3.2 Gen2
• Serial port: 1 x RS232
• Audio: 1 x 2-in-1 headset (MIC-IN & AUDIO-OUT)
• Button: 1 x power on, 1 x CLR-CMOS
• Storage: 1 x M-key M.2 (2242/2280) for NVMe
• Operating system installed: Windows 11 (64bit)
• Operating system supported: Linux Ubuntu (64bit), Chrome OS
• Power type: DC-IN
• Input voltage: 19 V/4.74 A
• Operating temperature: 0°C ~ 40°C (32°F ~ 104°F) at 0.7m/s air flow
• Relative humidity: 95%@40°C (non-condensing)
• Certification: CE, FCC Class B, CCC
• Construction: Metal
• Colour: Black
• Dimensions: 18.9 x 14.8 x 2.6 cm
