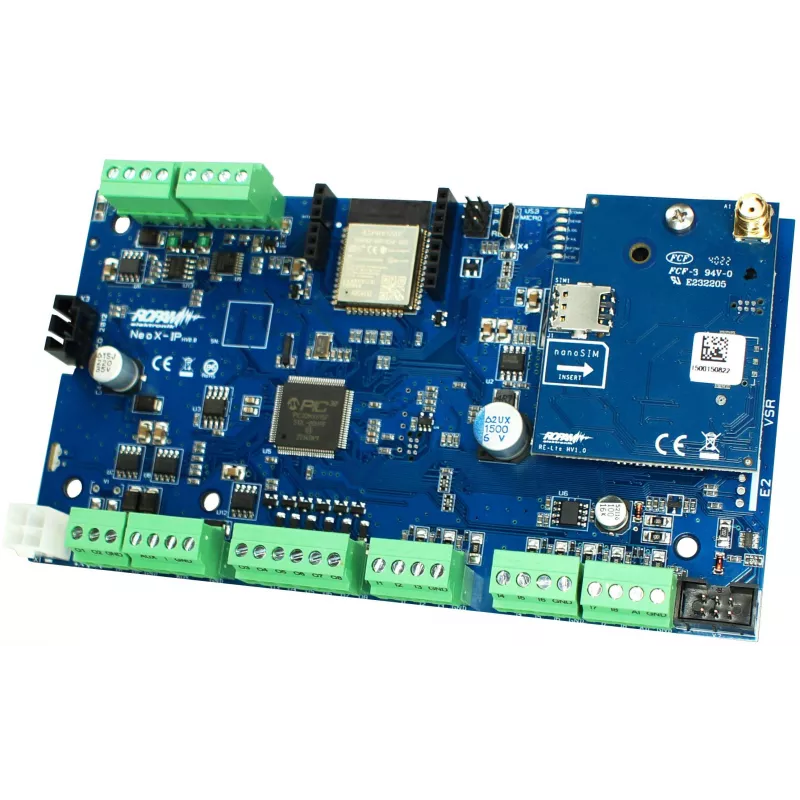

GREENCELL ROPAM NEOLTE-IP pannello di controllo

The GREENCELL ROPAM NEOLTE-IP Control Panel is a versatile and powerful alarm control panel designed for modern security systems. With built-in LTE/GSM (2G/3G/4G) and Ethernet communication, it ensures reliable connectivity for remote monitoring and control. This panel supports up to 8 zones (expandable to 32) and 4 OC-type outputs (expandable to 32), making it suitable for both residential and commercial applications.

Advantages

Integrated LTE/GSM and Ethernet modules eliminate the need for additional communication hardware. The panel supports up to 32 users and 4 independent partitions, allowing flexible access control. Smart home integration enables control of lighting, gates, and heating. Firmware updates via USB or remote (RopamBridge) ensure the system stays current.

Suitable for

• Residential security systems
• Small to medium commercial premises
• Smart home automation projects
• Remote monitoring via smartphone app

Key specifications

• Communication: Built-in LTE/GSM (2G/3G/4G) and Ethernet (IP)
• Zones: 8 inputs (expandable to 32)
• Outputs: 4 OC type (expandable to 32)
• Power Supply: 17-20V AC or 20-28V DC (main), 12V DC max 2A (peripherals)
• Battery Backup: 12V lead-acid (7Ah or 17Ah recommended)
• Users: Up to 32
• Partitions: 4 independent
• Keypad Support: Up to 4 keypads (e.g., TK-32, TK-32W)
• Control Methods: RopamDroid/RopamBridge app, SMS, DTMF, local keypad
• Event Memory: 10,000 events
• Operating Temperature: -10°C to +55°C
• Housing Material: Plastic enclosure
• Firmware Update: Via USB or Remote (RopamBridge)
• Reporting Protocols: SIA-IP, Contact ID, SMS, PUSH notifications
• Siren Outputs: 2 x 12V DC, max 1A each
• Expansion Bus: Ropam RopamNET bus

Recommendations

For optimal performance, use a 12V 7Ah or 17Ah lead-acid battery for backup. Pair with Ropam keypads and the RopamDroid app for full functionality.
