Gruppo di continuità APC Smart-UPS RT 1000VA

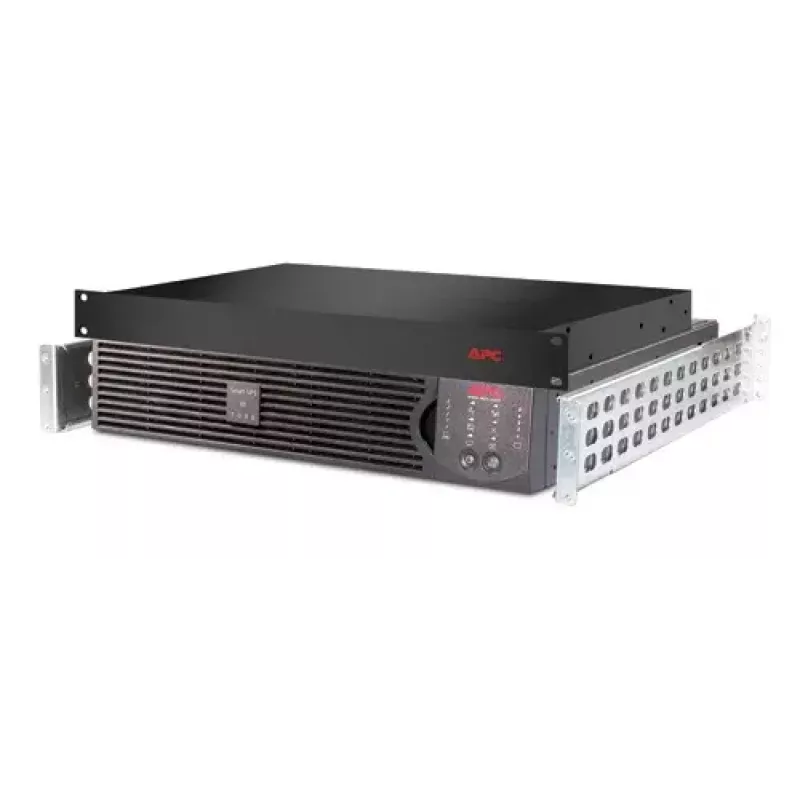

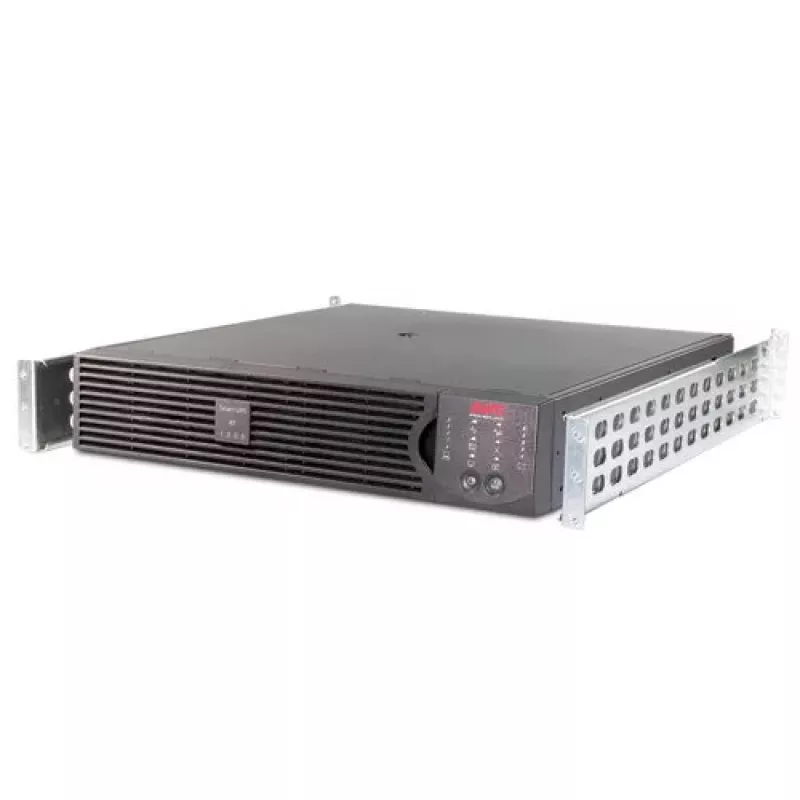

APC Smart-UPS RT 1000VA is an on-line uninterruptible power supply providing 1 kVA (1000 VA) capacity and 700 W output power. Designed for rackmount installation in a 2U chassis, it features eight C13 AC outlets, an RS-232 DB-9 communication port and a SmartSlot for optional management cards. The unit includes a sealed lead‑acid battery with a typical recharge time of 3 hours and is supplied with monitoring software (CD), an RS-232 signalling cable and a user manual.

Advantages

The on-line topology delivers continuous, regulated power without transfer time to battery, ensuring clean sine-wave output for sensitive equipment. The 2U rack form factor and compact dimensions make it suitable for data racks and server rooms where space is limited. Built-in communication ports and SmartSlot support remote monitoring and graceful shutdown through included software.

Suitable for

• Rack servers and network switches
• Telecommunications and critical IT equipment
• Small data centres and server closets
• Workstations requiring clean, continuous power

Key specifications

• Output power: 700 W
• Capacity: 1 kVA (1000 VA)
• AC outlets: 8 × C13
• Input / Output voltage: 230 V nominal
• Communication: DB-9 RS-232 port and SmartSlot
• Battery type: sealed lead‑acid, typical recharge time 3 hours
• Rack height: 2U
• Dimensions (W×D×H): 85 mm × 483 mm × 432 mm
• Weight: 23 kg
• Colour: Black

How to use

Mount the UPS in a standard 19-inch rack occupying 2U of height. Connect incoming AC mains to the UPS input and connect protected devices to the C13 outlets. Install the included monitoring software from the supplied CD or use a compatible network/management card in the SmartSlot for remote monitoring. Use the RS-232 cable for local serial communication if required. Follow the user manual for battery charging, initialisation and safe shutdown procedures.

Recommendations

For reliable operation, place the UPS in a well-ventilated rack area, avoid blocking ventilation, perform periodic battery self-tests, and replace batteries according to the manufacturer’s lifecycle recommendations. Ensure connected load does not exceed the rated 700 W output.
