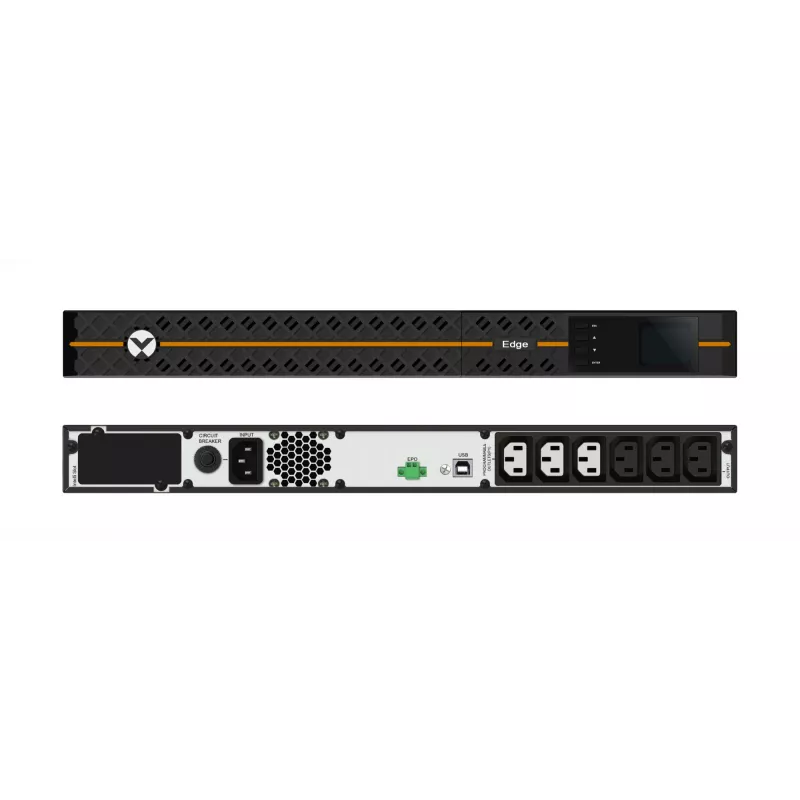

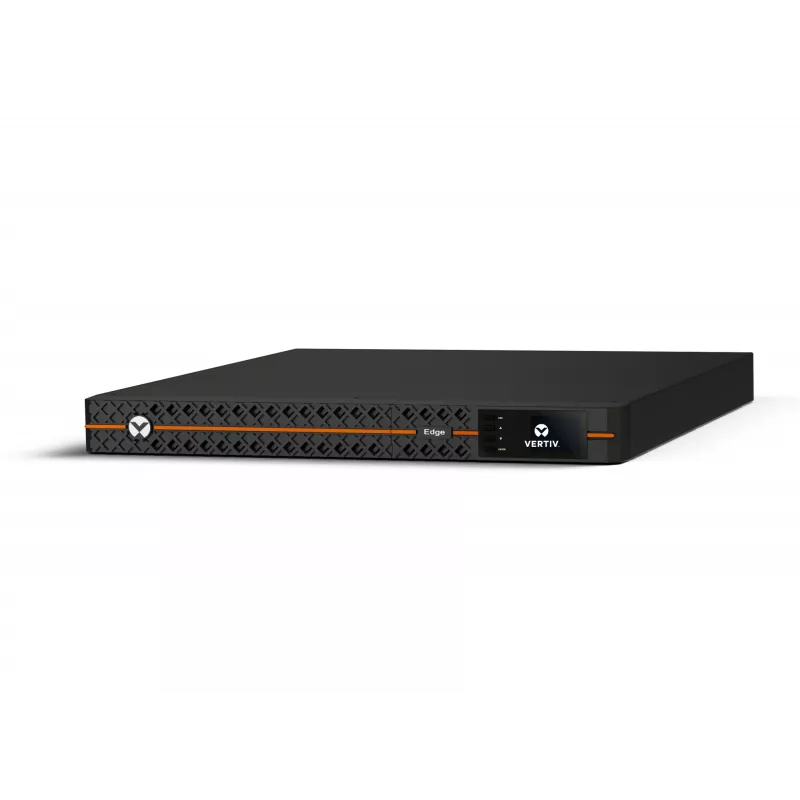

Gruppo di continuità (UPS) Vertiv Liebert Edge – 1500 VA 1350 W 230 V 1U line-interactive AVR rackmount | PF 0,9

The Vertiv Liebert Edge 1500VA (1350W) UPS is a compact 1U rackmount uninterruptible power supply designed to protect servers and networking equipment in distributed and Edge IT environments. It provides line-interactive power conditioning with sine wave output and Automatic Voltage Regulation (AVR) to reduce the impact of power spikes, swells and brownouts while extending battery life. The unit includes six C13 AC outlets, operates at 230V, and achieves up to 98% efficiency in normal operation. Optional Vertiv Intellislot SNMP/Webcards and free Vertiv Power Assist software support remote power management and orderly OS shutdowns.

Advantages

This 1500VA UPS delivers reliable short-term power backup and voltage regulation in a space-saving 1U rack form factor. Line-interactive topology with AVR and sine wave output protects connected equipment from common mains disturbances. High operating efficiency reduces energy losses during normal conditions. The unit is compatible with optional network management cards for remote monitoring and supports fast battery recharge (approx. 3 hours). It is certified to CE, CB Report, EAC, RCM and UKCA standards and meets RoHS requirements.

Suitable for

• Small server racks and network closets
• Edge data centers and distributed IT sites
• Rack-mounted telecommunications equipment
• Critical network devices requiring short-term power holdover and voltage regulation

Key specifications

• Output power: 1350 W
• Apparent power: 1500 VA
• Input/output voltage: 230 V
• Form factor: 1U rackmount

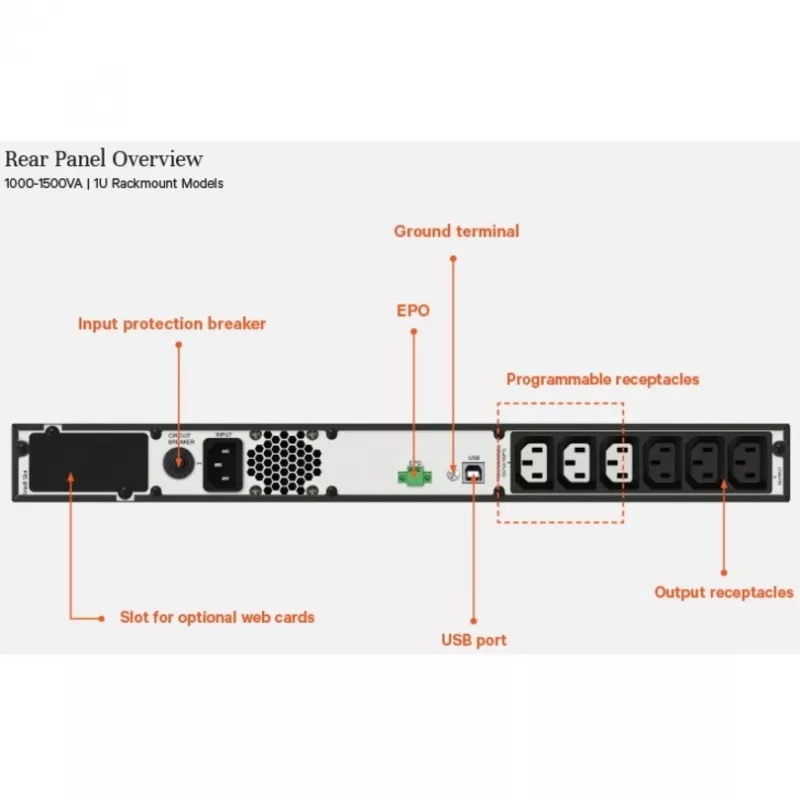

• AC outlets: 6 × C13
• Topology: Line-interactive with AVR and sine wave output
• Efficiency: Up to 98% (normal operation)
• Battery recharge time: approx. 3 hours
• Weight: 23 kg
• Certifications: CE, CB Report, EAC, RCM, UKCA; RoHS compliant
• Model/MPN: EDGE-1500IRM1U

How to use

Install the UPS in a standard 19" rack using the included hardware or place it in a rack/tower configuration as needed. Connect essential servers and networking equipment to the six C13 outlets. For best results, configure optional Intellislot SNMP/Webcards if remote management is required and install Vertiv Power Assist software on connected systems to enable automatic shutdown during extended outages. Ensure the UPS is connected to a stable mains supply and allow the battery to fully recharge after initial installation or a full discharge cycle.

Recommendations

Place the UPS in a climate-controlled rack space with adequate ventilation, avoid overloading beyond the rated 1350 W output, and perform periodic battery tests and replacements in accordance with Vertiv maintenance guidelines to ensure continuous protection.
