Hager universN quadro completo con trasformatori di corrente 250 A 5 poli 1350 mm UF53WBW1

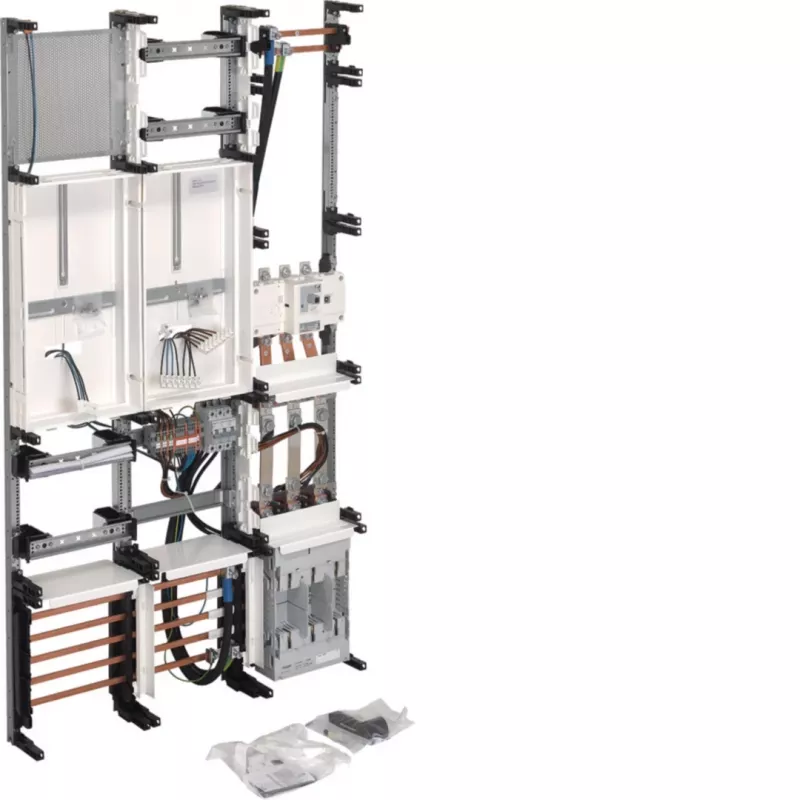

The Hager UF53WBW1 is a current transformer complete field from the universN series, engineered for indirect metering applications up to 250 A in 5-pole distribution boards. Unlike basic metering panels, this unit integrates a 5-pole busbar system and a dedicated mounting area for standard current transformers, simplifying installation and ensuring compliance with DIN VDE 0603-1 and DIN 43870-1.

Highlights

• Rated current: 250 A
• 5-pole configuration for three-phase systems with neutral
• Height: 1350 mm, width: 250 mm, installation depth: 210 mm
• Sheet steel enclosure, grey (RAL 7035)
• Degree of protection: IP2XC (installed)
• Vertical mounting position

In daily use

Designed for current transformer metering in distribution boards, this complete field provides a ready-to-install solution for indirect metering. The screw terminal connection technology and top/bottom busbar connections offer flexibility during wiring. The enclosure is made of sheet steel and finished in grey (RAL 7035), suitable for standard electrical installations.

Full specifications

• Product type: Current Transformer Complete Field
• Series: universN
• Max rated current: 250 A
• Number of poles: 5-pole
• Height: 1350 mm
• Width: 250 mm
• Depth (installation): 210 mm
• Metering type: Indirect metering
• Application: For current transformer metering in distribution boards
• Busbar system compatibility: 5-pole busbar system
• Transformer mounting: For standard current transformers
• Rated operational voltage: 400/230 V AC
• Material: Sheet steel
• Mounting position: Vertical
• Degree of protection (installed): IP2XC
• Standards: DIN VDE 0603-1, DIN 43870-1
• Number of metering points: 1
• Connection technology: Screw terminals
• Busbar connection: Top/Bottom
• Colour: Grey (RAL 7035)

Final note

A reliable and compliant solution for current transformer metering in 5-pole distribution systems.
