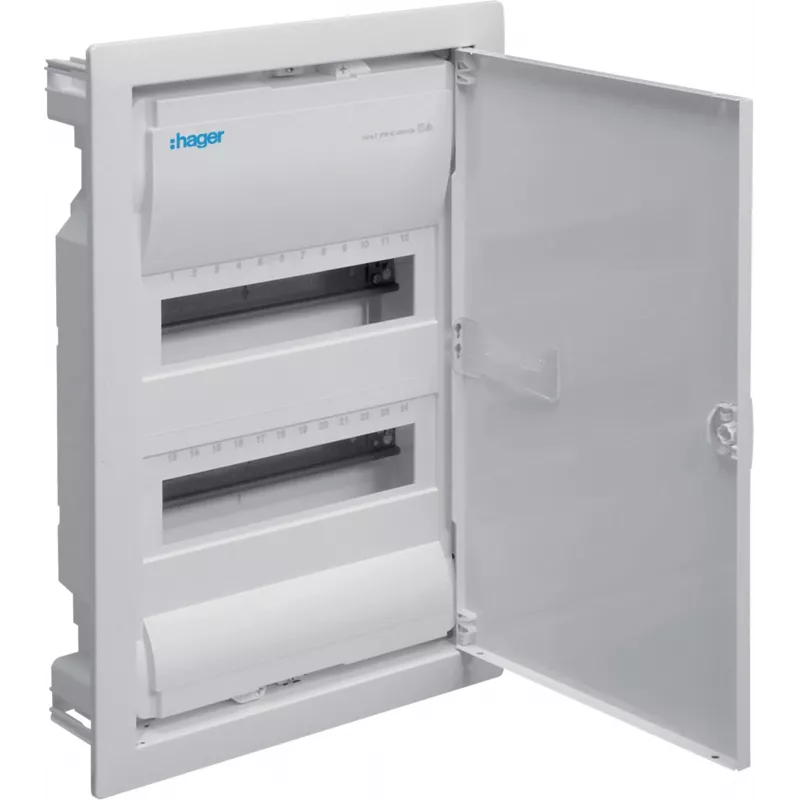

HAGER Volta VU24NE quadro da incasso, 2 file, 24 moduli, IP30, porta in metallo, bianco

The HAGER Volta VU24NE is a high-quality flush-mounted distribution board designed for residential and commercial electrical installations. With 2 rows and 24 modules (12 per row), it provides ample space for circuit breakers and other DIN rail components. The metal door with a white RAL 9010 finish ensures durability and a clean aesthetic, while the IP30 protection rating makes it suitable for indoor use.

Advantages

Robust construction with a steel sheet door and polystyrene enclosure ensures long-lasting performance. Pre-assembled N and PE terminals simplify installation, and the flush-mount design integrates seamlessly into walls. The board complies with EN 61439-3 and EN 62208 standards, guaranteeing safety and reliability.

Suitable for

• Residential electrical distribution systems
• Commercial building power distribution
• Industrial control panels requiring flush mounting
• Installations needing up to 63 A rated current and 400 V AC voltage

Key specifications

• Mounting Type: Flush-mounted (recessed)
• Number of Rows: 2
• Total Modules: 24 (12 per row)
• IP Protection Rating: IP30
• Protection Class: II (double insulated)
• Door Type: Metal (steel sheet)
• Door Color: White (RAL 9010)
• Enclosure Material: Plastic (polystyrene)
• Rated Current (In): Up to 63 A
• Rated Voltage (Un): 400 V AC
• Glow Wire Test: 850 °C
• Impact Resistance: IK07
• Installation Depth: 72 mm
• Wall Cut-out Dimensions (H x W): 360 x 280 mm
• Terminal Blocks: Pre-assembled N and PE
• Standards Compliance: EN 61439-3, EN 62208
• Cable Entry: Top, bottom, side knockouts
• Operating Temperature: -5 to +40 °C

Recommendations

For optimal performance, use with HAGER circuit breakers and accessories. Ensure proper wall cut-out dimensions (360 x 280 mm) before installation. This distribution board is ideal for new constructions or renovations requiring a reliable and space-efficient electrical distribution solution.
