Header pin USB Lian Li LAN216-1 nero 19 pin USB 3.0

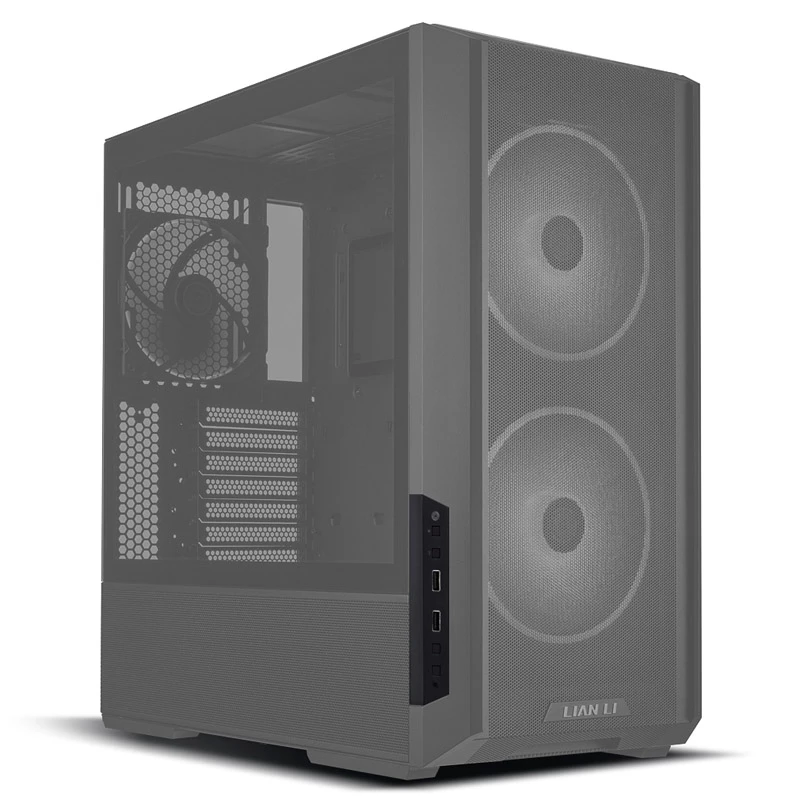

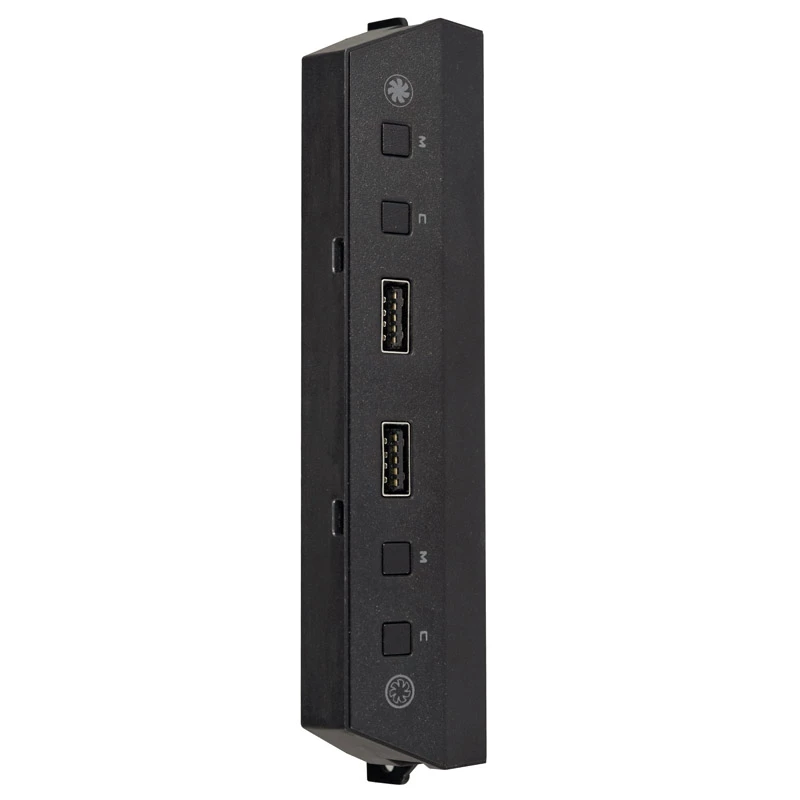

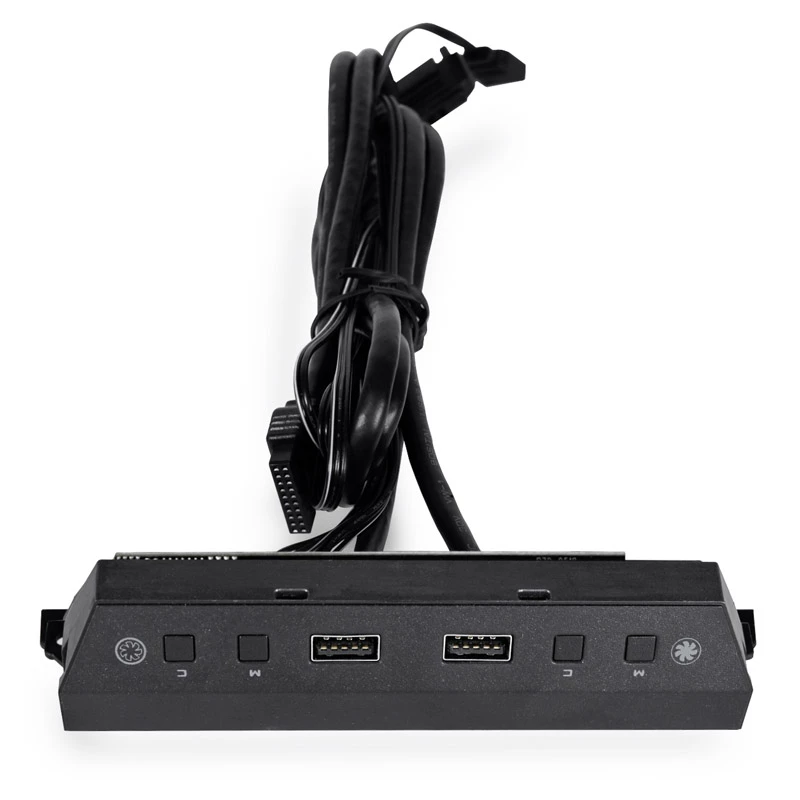

The Lian Li LAN216-1 USB pin header (19-pin, USB 3.0) is an ARGB control and USB module designed for installation at the side or top of a front panel. It provides two additional USB 3.0 ports and an ARGB I/O interface to manage front-panel ARGB fans. The module has a black housing and a 0.82 m cable, and its compact dimensions make it suitable for integration into compatible PC cases.

Advantages

The module separates control of fan rim LEDs and fan blade LEDs, allowing independent or combined lighting effects. The controller supports 10 lighting modes and 7 lighting colors. Side or top mounting options simplify access and cable routing, and the additional USB 3.0 ports expand front-panel connectivity.

Suitable for

• Adding front-panel USB 3.0 ports
• Controlling ARGB front fans with separate rim and blade lighting
• Cases that support a side or top-mounted 19-pin USB/ARGB module

Key specifications

• Manufacturer: Lian Li
• Model: LAN216-1 (LAN216-1X / LAN216-1W referenced)
• Function: ARGB control + USB 3.0 module
• Connector: 19-pin USB 3.0 header
• Cable length: 0.82 m
• Housing color: Black
• Dimensions (W x D x H): 147.8 mm x 26.5 mm x 30.7 mm

How to use

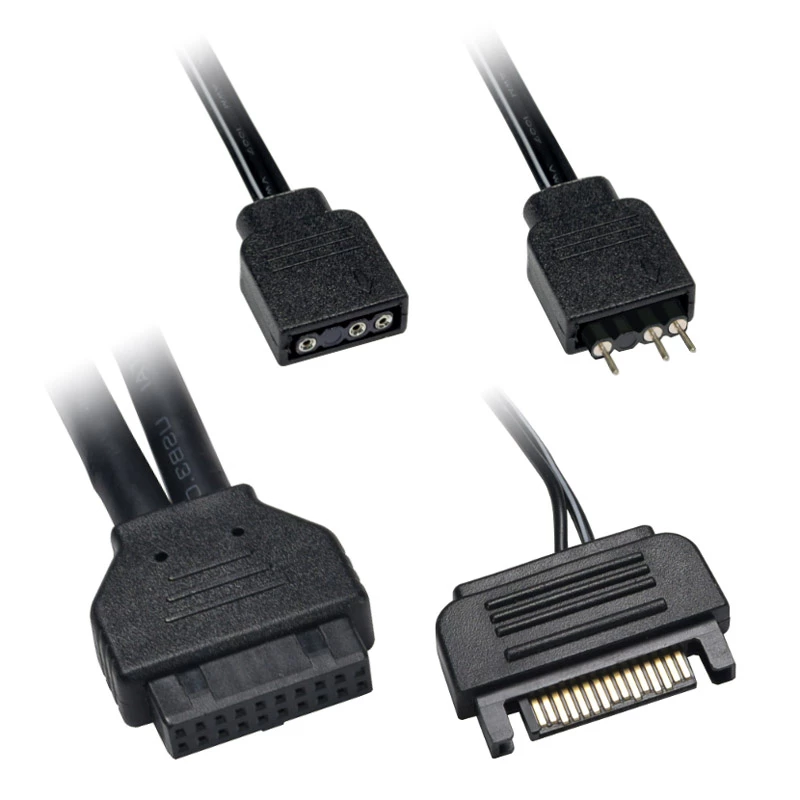

Mount the module at the side or top position of the front panel according to your case’s compatible cutouts. Connect the 19-pin USB 3.0 header to the corresponding motherboard connector and route the ARGB cable to the front fan ARGB headers or controller. Use the provided mounting location to gather cables through the bottom gap of the fan bracket for a cleaner installation.

Recommendations

Ensure your motherboard supports a 19-pin USB 3.0 header and that front-panel cutouts match the module’s mounting style. When configuring lighting, verify ARGB fan compatibility and avoid forcing incompatible connectors.
