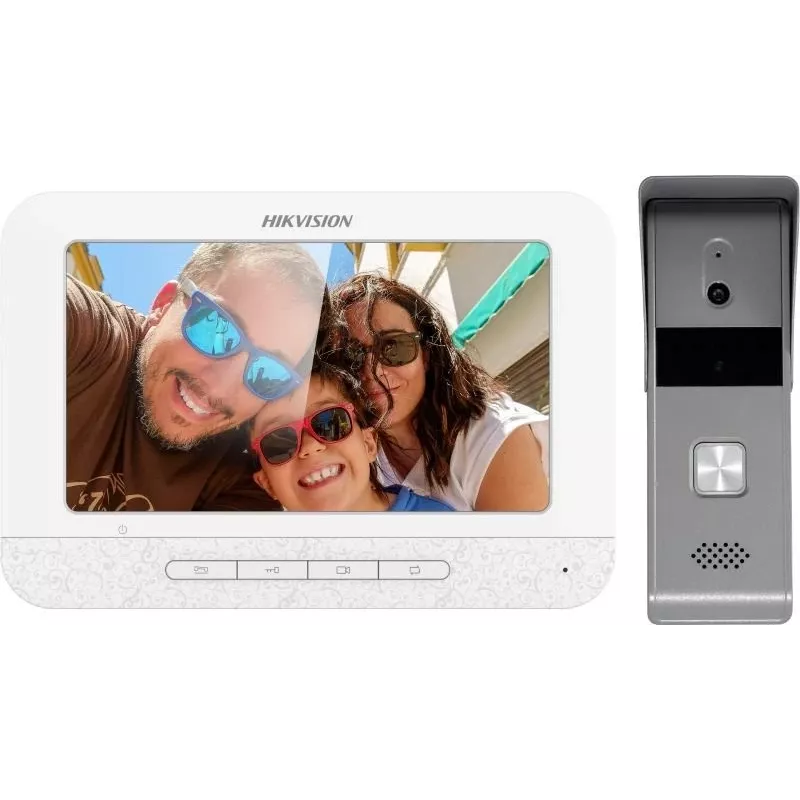

Hikvision DS-KIS203T videocitofono analogico a 2 fili con posto interno da 7" e posto esterno 2-MP

The Hikvision DS-KIS203T is a complete 2-wire analog video intercom kit designed for residential and small commercial applications. It includes an outdoor station (DS-KV2003-IM) with a 2 MP camera and an indoor station (DS-KH2220) featuring a 7-inch TFT LCD display. The system provides clear two-way audio communication with noise suppression and echo cancellation, and supports door control via a relay output. The outdoor station is built with an aluminum alloy housing, rated IP65 for dust and water resistance and IK07 for impact protection, ensuring reliable performance in various weather conditions. The kit comes with a power supply (DS-KAW2003-1, 24V DC) and supports cable distances up to 100 meters depending on cable gauge.

Advantages

This intercom kit offers easy installation with 2-wire connectivity, high-quality video and audio, and robust outdoor durability. The 7-inch indoor station provides a clear and intuitive interface for monitoring and communication.

Suitable for

• Residential homes
• Small offices
• Apartment buildings
• Gated communities

Key specifications

• System Type: 2-Wire Analog Video Intercom
• Outdoor Station Model: DS-KV2003-IM
• Indoor Station Model: DS-KH2220
• Outdoor Station Camera Resolution: 2 MP (1920 x 1080)
• Outdoor Station Field of View: Horizontal 129°, Vertical 75°
• Outdoor Station Night Vision: IR Supplement
• Outdoor Station IP Rating: IP65
• Outdoor Station IK Rating: IK07
• Indoor Station Display Size: 7-inch TFT LCD
• Indoor Station Display Resolution: 800 x 480
• Audio Communication: Two-way Audio with Noise Suppression and Echo Cancellation
• Door Control: 1 Relay Output (Outdoor Station)
• Wiring Interface: 2-Wire
• Max. Cable Distance: Up to 100m (depending on cable gauge)
• Power Supply: Included (DS-KAW2003-1, 24V DC)
• Installation Type (Outdoor Station): Surface Mount
• Installation Type (Indoor Station): Wall Mount
• Outdoor Station Material: Aluminum Alloy

Recommendations

For optimal performance, use a high-quality 2-wire cable and ensure proper termination. The system is designed for easy DIY installation, but professional installation is recommended for complex setups.
