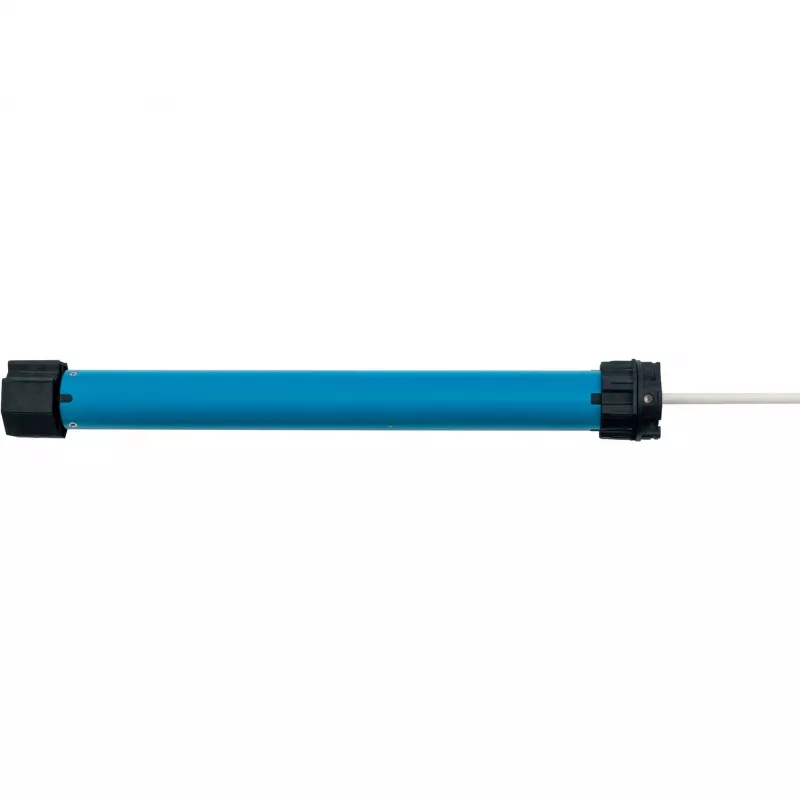

HOMEPILOT motore tubolare classic m10 SW60, 10 Nm, 16 giri/min

Delivering 10 Nm of torque at 16 RPM, the HOMEPILOT classic m10 SW60 tubular motor drives PVC roller shutters up to 4.5 m² or 22 kg with mechanical limit switching.

Overview

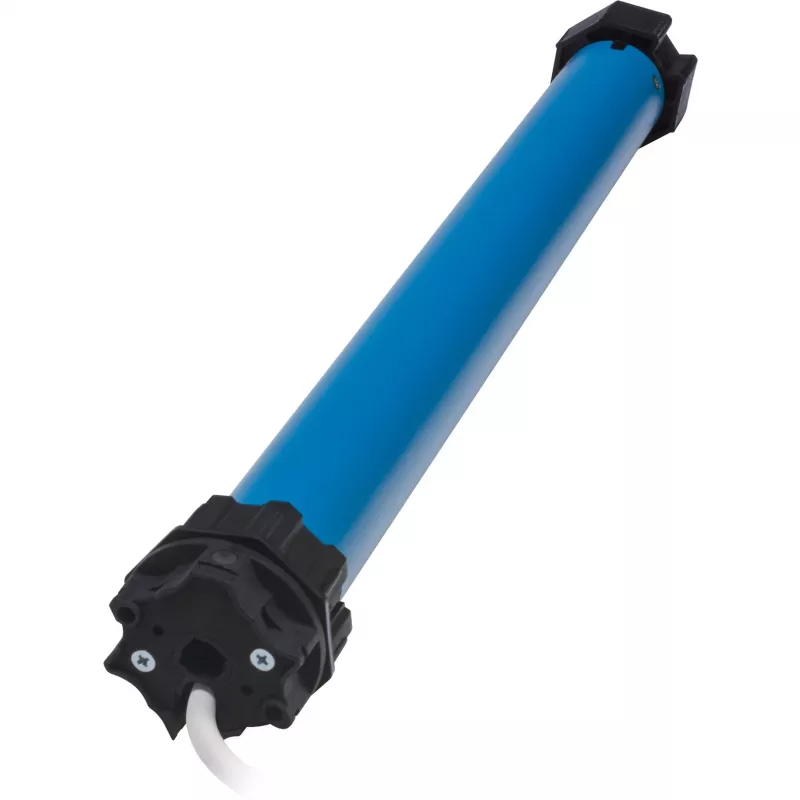

The HOMEPILOT classic m10 SW60 is a wired tubular motor for 60 mm octagonal shafts. It runs on 230 V AC, 50 Hz and draws 120 W (0.52 A). The motor is 45 mm in diameter and 455 mm long, with a 2.5 m connection cable. Mechanical end stops ensure precise travel limits. Thermal cut-out protects against overheating. Duty cycle is S2 (4 min).

What stands out

• 10 Nm torque for shutters up to 4.5 m² (PVC)
• 16 RPM speed with smooth operation
• Mechanical limit switches for reliable positioning
• Thermal cut-out for motor protection
• IP44 rated for damp environments

Technical details

• Torque: 10 Nm
• Speed: 16 RPM
• Power supply: 230 V AC, 50 Hz
• Power consumption: 120 W
• Current consumption: 0.52 A
• Motor diameter: 45 mm
• Motor length: 455 mm
• Cable length: 2.5 m
• Max. shutter area (PVC): 4.5 m²
• Max. shutter weight (PVC): 22 kg
• Limit switch type: Mechanical
• Duty cycle: S2 (4 min)
• Noise level: < 45 dB
• Operating temperature: -10°C to +40°C
• Protection class: IP44
• Overheat protection: Thermal cut-out

Our verdict

A dependable wired tubular motor for standard PVC roller shutters, with mechanical limits and thermal protection.
