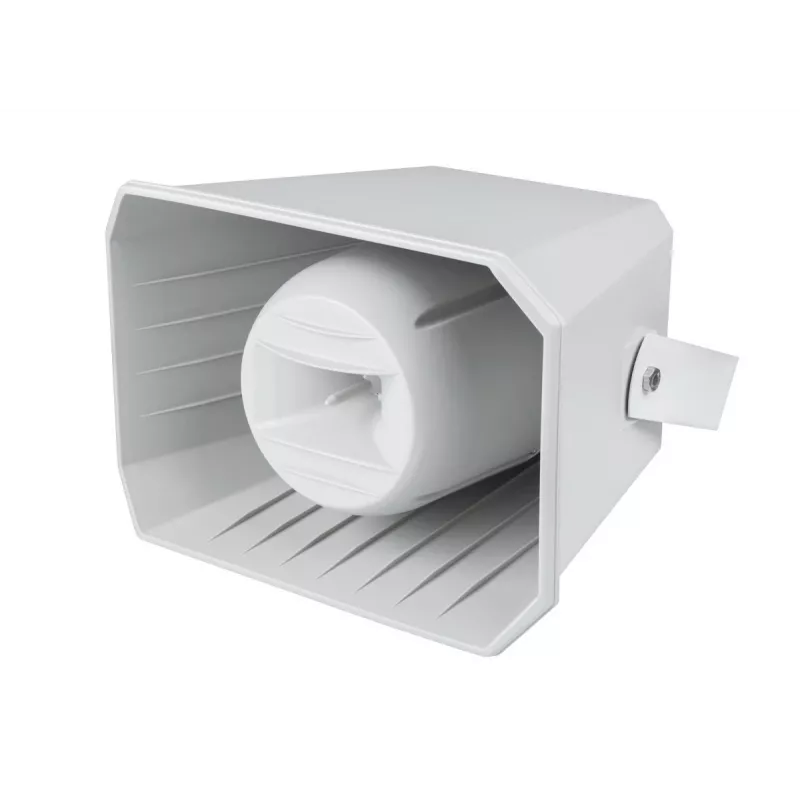

HORNIT DH-110 HQ/SC-48 Driver a compressione per tromba 8Ω 40W RMS 107dB

The HORNIT DH-110 HQ/SC-48 is a high-quality horn compression driver designed for professional audio applications. Featuring a 34.4 mm phenolic diaphragm and a ferrite magnet, this driver delivers clear and powerful sound reproduction with a sensitivity of 107 dB. With an impedance of 8 Ω and RMS power handling of 40 W (80 W peak), it is ideal for use in PA systems, public address installations, and other sound reinforcement setups.

Advantages

High sensitivity ensures efficient sound output even with lower power amplifiers. The robust ferrite magnet provides reliable performance and longevity. The 1-inch screw-on throat (1 3/8"-18UNEF) allows for easy mounting on compatible horns. Recommended crossover frequency above 1.5 kHz ensures optimal performance and protects the driver from low-frequency damage.

Suitable for

• Professional PA systems
• Public address installations
• Sound reinforcement in venues, churches, and schools
• Replacement driver for existing horn-loaded speakers

Key specifications

• Product Type: Horn Compression Driver
• Impedance: 8 Ω
• RMS Power Handling: 40 W (with crossover > 1.5 kHz)
• Peak Power Handling: 80 W
• Frequency Response: 1,000 Hz - 20,000 Hz
• Sensitivity (1W/1m): 107 dB
• Voice Coil Diameter: 34.4 mm (1.35")
• Throat Diameter: 25 mm (1")
• Diaphragm Material: Phenolic
• Magnet Material: Ferrite
• Mounting Type: 1 3/8"-18UNEF Screw-on
• Recommended Crossover Frequency: > 1.5 kHz
• Resonance Frequency (Fs): 1,500 Hz
• Magnet Weight: 340 g
• Overall Diameter: 110 mm
• Overall Depth: 75 mm

Recommendations

For best results, use with a compatible horn and a crossover set at or above 1.5 kHz. Ensure proper amplification to match the driver's power handling capabilities.
