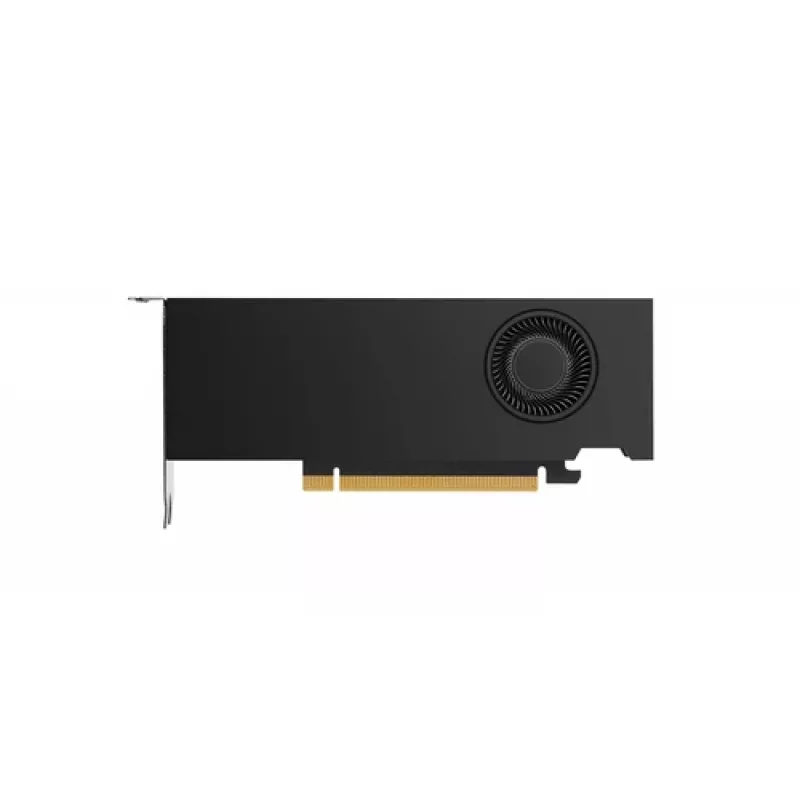

HP NVIDIA RTX A2000 12GB GDDR6 scheda grafica low-profile, 4x Mini DisplayPort 1.4a, PCIe 4.0 x16, 70W

With 3328 CUDA cores and 12GB of GDDR6 memory on a 192-bit interface, the HP NVIDIA RTX A2000 delivers 288 GB/s of bandwidth in a compact low-profile form factor—ideal for workstations where space is at a premium but performance cannot be compromised.

Overview

The HP NVIDIA RTX A2000 is a professional graphics card built on the NVIDIA Ampere architecture, engineered for creators, engineers, and data scientists. It combines 26 RT cores for real-time ray tracing and 104 Tensor cores for AI acceleration, enabling advanced rendering, simulation, and deep learning workflows. The card supports PCI Express 4.0 x16 for high-speed data transfer and features four Mini DisplayPort 1.4a connectors, allowing up to four 8K displays at 60Hz for expansive visual workspaces. With a maximum power consumption of only 70W, it draws all necessary power from the PCIe slot—no external power connectors required—making it an efficient upgrade for a wide range of systems.

What stands out

• 12GB GDDR6 memory with 192-bit interface and 288 GB/s bandwidth for handling large datasets and complex scenes.
• 3328 CUDA cores, 26 RT cores, and 104 Tensor cores deliver exceptional compute, ray tracing, and AI performance.
• Low-profile, dual-slot design fits into small form factor workstations and servers.
• Four Mini DisplayPort 1.4a outputs support up to four 7680 x 4320 @ 60Hz displays for immersive multi-monitor setups.
• Bus-powered at just 70W TDP, ensuring compatibility with standard power supplies and reducing energy costs.
• Full support for DirectX 12 Ultimate, OpenGL 4.6, Vulkan 1.2, and Shader Model 6.5 for modern applications.
• Active single-fan cooling maintains optimal temperatures under sustained workloads.

Technical details

• GPU Architecture: NVIDIA Ampere
• CUDA Cores: 3328
• RT Cores: 26
• Tensor Cores: 104
• Memory: 12 GB GDDR6
• Memory Interface: 192-bit
• Memory Bandwidth: 288 GB/s
• Interface: PCI Express 4.0 x16
• Display Connectors: 4x Mini DisplayPort 1.4a
• Max Digital Resolution: 7680 x 4320 @ 60Hz
• Max Displays Supported: 4
• TDP: 70 W
• Form Factor: Low Profile, Dual Slot
• Cooling: Active (Single Fan)
• Power Connectors: None (PCIe bus powered)
• Graphics APIs: DirectX 12 Ultimate, OpenGL 4.6, Vulkan 1.2
• Shader Model: 6.5
• NVENC/NVDEC: 1x Encoder, 1x Decoder
• VR Ready: Yes

Our verdict

The HP NVIDIA RTX A2000 strikes an impressive balance between performance and efficiency, packing professional-grade features into a compact, low-power design. It is an excellent choice for professionals who need reliable multi-display support and accelerated computing without upgrading their power supply or case.
