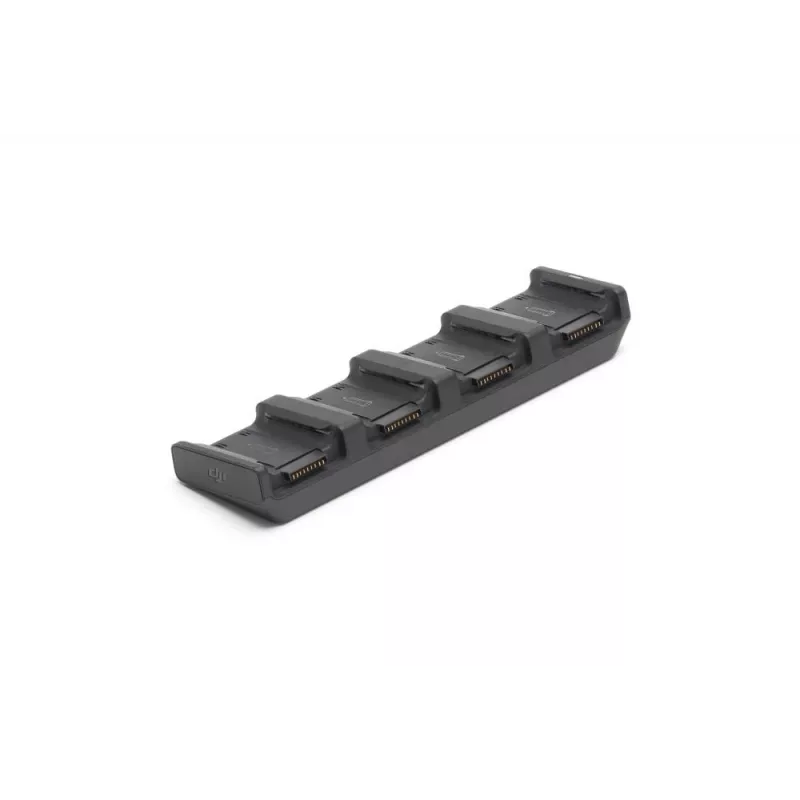

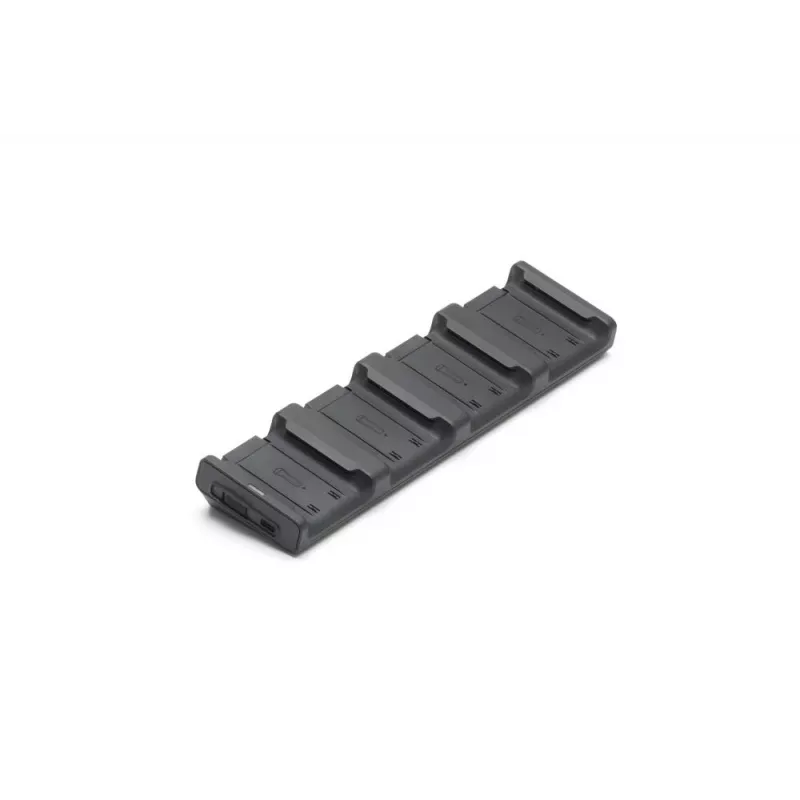

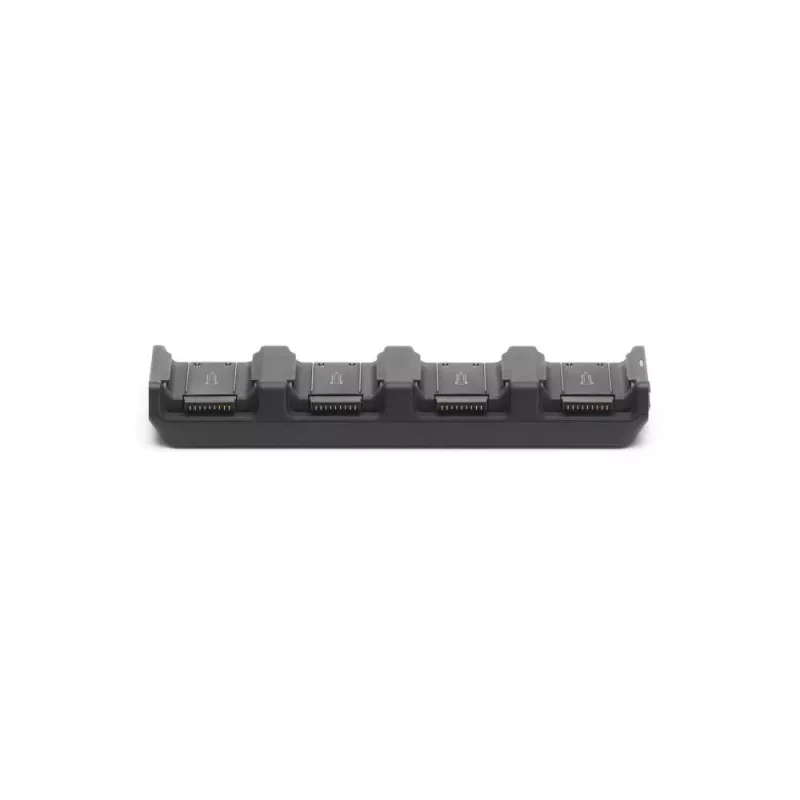

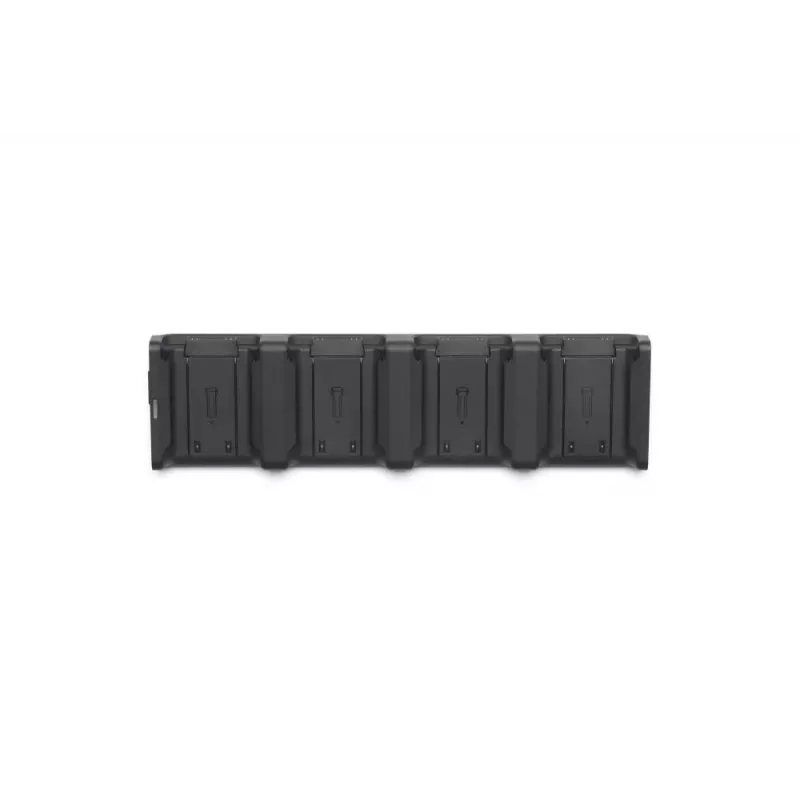

Hub di ricarica batteria DJI CHX345-100 grigio scuro

DJI Matrice 4 Series Charging Hub is a dedicated charging accessory for Matrice 4 Intelligent Flight Batteries. It charges up to four batteries sequentially, prioritizing higher-power cells first, and supports two charging modes to match operational needs.

Advantages

The charging hub charges up to four Intelligent Flight Batteries in sequence from high to low power level and supports both Standard Mode and Ready-to-Fly Mode. Standard Mode charges each battery to 100% sequentially for maximum capacity, while Ready-to-Fly Mode charges each battery to 90% and maintains that level for faster deployment. The unit is compatible with DJI Matrice 4 series batteries and comes in a dark grey finish.

Suitable for

• Charging multiple DJI Matrice 4 Intelligent Flight Batteries
• Preparing batteries for sequential or rapid deployment
• Workflows requiring organized battery rotation and storage

Key specifications

• Compatibility: DJI Matrice 4 series, BPX345-6741-14.76
• Maximum simultaneous capacity: charges up to four batteries sequentially
• Charging modes: Standard Mode (100% sequential charge), Ready-to-Fly Mode (90% sequential charge and maintenance)
• Product colour: Dark grey
• Manufacturer model / MPN: CP.EN.00000555.03
• EAN: 6941565994295

How to use

Install the DJI Matrice 4 Intelligent Flight Batteries into the charging hub according to the battery insertion guide. Connect the charging hub to a suitable power source. Select the desired charging mode: choose Standard Mode to charge each battery to 100% sequentially, or Ready-to-Fly Mode to charge to 90% and maintain that level for quick deployment. The hub will process batteries from higher to lower power level automatically.

Recommendations

Use Ready-to-Fly Mode when you need rapid turnaround and frequent deployments; use Standard Mode when you require full-capacity batteries for extended flight time. Store the hub and batteries in a dry, temperature-stable environment and follow DJI battery handling guidelines provided by the manufacturer.
