InLine Cavo DisplayPort 1.4, 8K4K, angolare, nero/oro, 5m

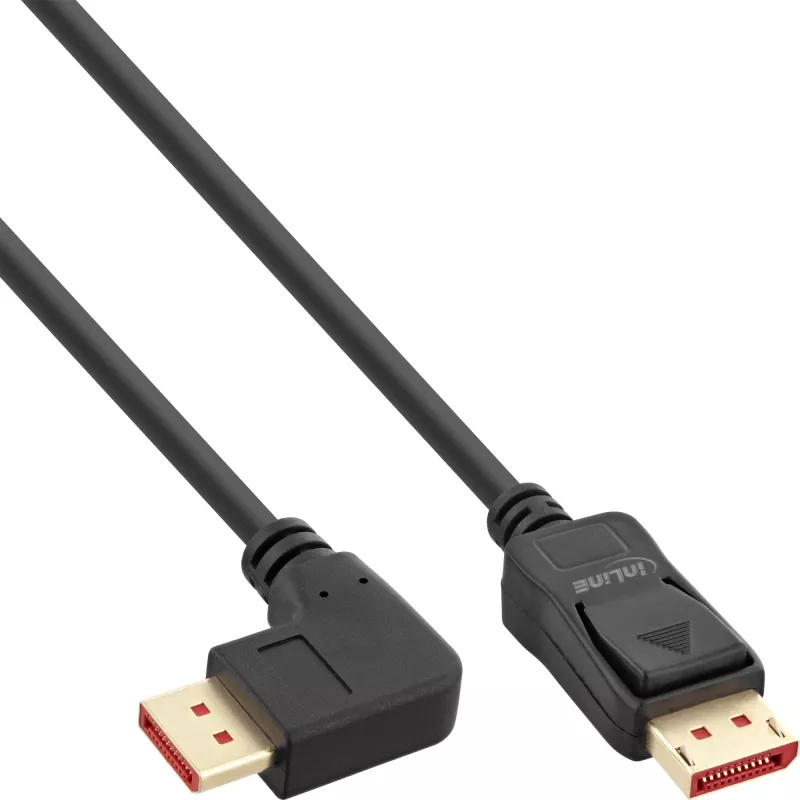

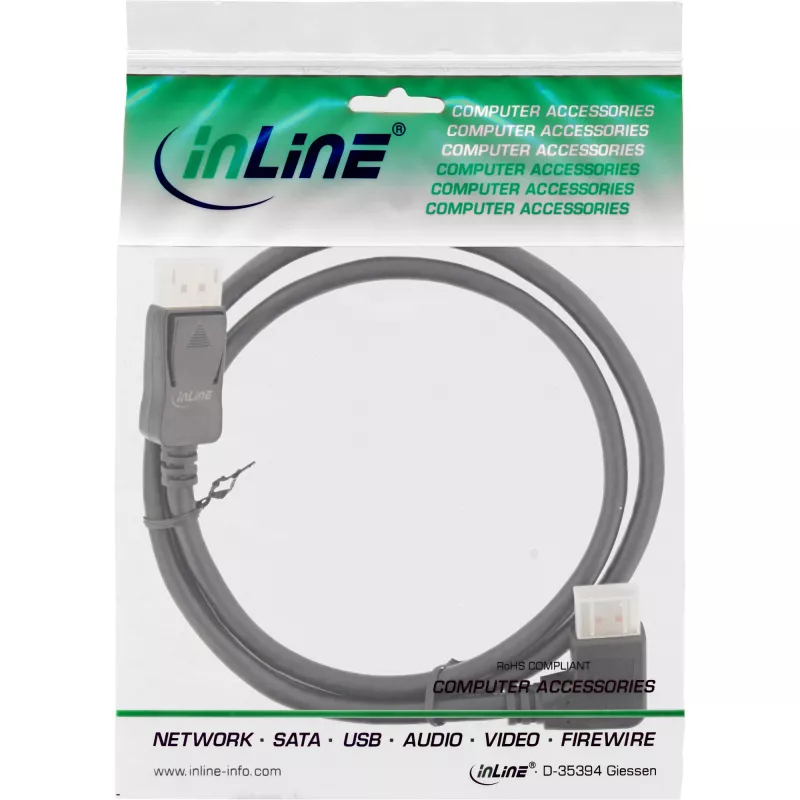

The InLine DisplayPort 1.4 cable (5 m) is a black, gold‑contact cable with a straight DisplayPort plug on one end and a right‑angled DisplayPort plug on the other. It is triple‑shielded and supplied in a resealable PE bag with EAN code. The cable supports high resolutions including 8K4K (7680×4320) and multiple 4K and Full HD modes, making it suitable for connecting high‑resolution monitors and displays to computers or other DisplayPort‑equipped devices.

Advantages

Triple shielding and gold‑plated contacts improve signal integrity and corrosion resistance. The right‑angled DisplayPort connector provides easier installation in tight spaces behind desks or equipment racks. Compliance with DisplayPort 1.4 enables support for very high resolutions, high refresh rates and HDR modes where supported by source and display.

Suitable for

• Connecting a PC or workstation to an 8K or 4K monitor
• Use in tight installation spaces where a right‑angled connector is needed
• Professional graphics, video editing and multimedia setups
• Home entertainment systems with compatible DisplayPort inputs

Key specifications

• Cable type: DisplayPort 1.4
• Length: 5 m
• Connectors: DisplayPort (straight) to DisplayPort (right‑angled)
• Shielding: 3‑fold shielded
• Contacts: Gold‑plated
• Colour: Black
• Supported resolutions: up to UHD‑II/FUHD 7680×4320 (8K4K) @30Hz RGB/4:4:4 and @60Hz RGB/4:2:0 or DSC; UHD 3840×2160 @120Hz RGB/4:4:4 8bit (HDR off) and @120Hz RGB/4:2:2 12bit (HDR on); UHD 3840×2160 @60Hz RGB/4:4:4 12bit (HDR on); Full HD 1920×1080; HD 1280×720

How to use

Connect the straight DisplayPort connector to the source device (for example a computer graphics card) and insert the right‑angled DisplayPort connector into the monitor or display. Ensure both devices support the target resolution and refresh rate. Configure display settings in the operating system or GPU control panel to select the desired resolution, color format and HDR mode if required.

Recommendations

For best results at very high resolutions or refresh rates, use compatible hardware (GPU and display) that supports DisplayPort 1.4 features and, when possible, enable DSC or appropriate color subsampling settings. Avoid sharp bends near the connectors and keep the cable away from strong electromagnetic interference sources.
