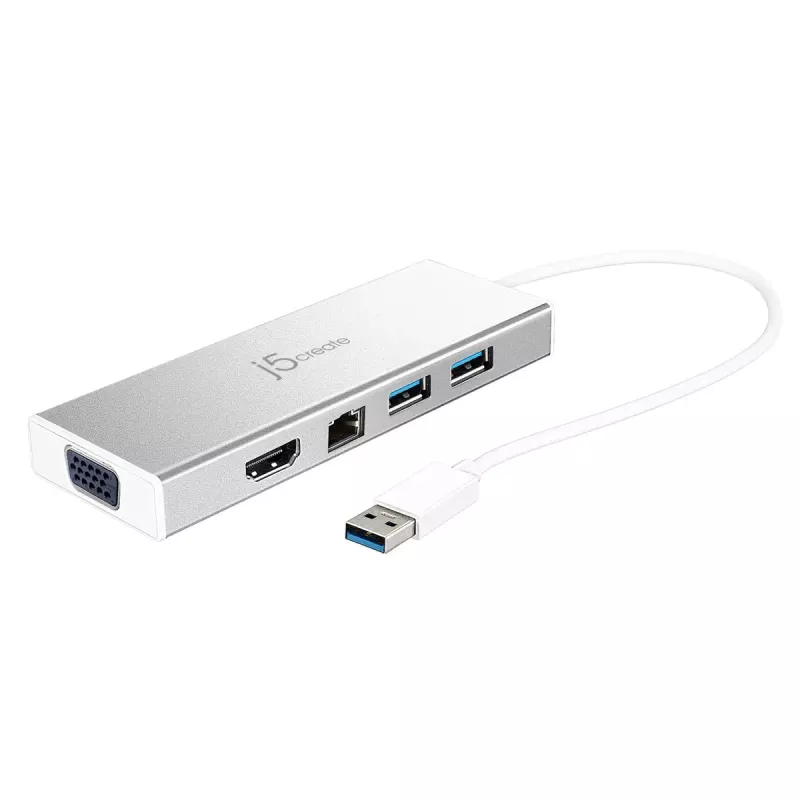

j5create JUD380 mini dock USB™ 3.0, 1x HDMI e 3x porte USB, argento

The j5create JUD380 USB 3.0 Mini Dock is a compact docking station that expands a laptop or desktop with additional display and peripheral connectivity. It provides one HDMI output, one VGA output, two USB 3.2 Gen 1 Type-A ports for peripherals, an integrated RJ45 Ethernet port supporting 10/100/1000 Mbit/s, and connects to the host via USB 3.2 Gen 1 Type-A. The silver, travel‑friendly design is intended for users who need a small, portable solution for a workstation setup.

Advantages

This mini dock offers dual-monitor support through HDMI and VGA with resolutions up to 2048 x 1152, fast USB 3.2 Gen 1 data transfer to connected peripherals, and a reliable wired network connection via the integrated RJ45 port. Its compact and lightweight form factor makes it suitable for mobile use and quick workstation setup without needing multiple adapters.

Suitable for

• Expanding laptop connectivity while travelling
• Adding an external monitor via HDMI or VGA
• Connecting peripherals such as keyboard, mouse, or external storage
• Establishing a wired Ethernet connection for stable network access

Key specifications

• Model: j5create JUD380 (JUD380-N)
• Host interface: USB 3.2 Gen 1 (USB 3.0) Type-A
• Video outputs: 1 × HDMI, 1 × VGA; up to 2048 × 1152 resolution
• USB ports: 2 × USB 3.2 Gen 1 Type-A
• Ethernet: 1 × RJ45, 10/100/1000 Mbit/s
• Compatibility: Windows and macOS
• Colour: Silver; Weight: 0.0826 kg

How to use

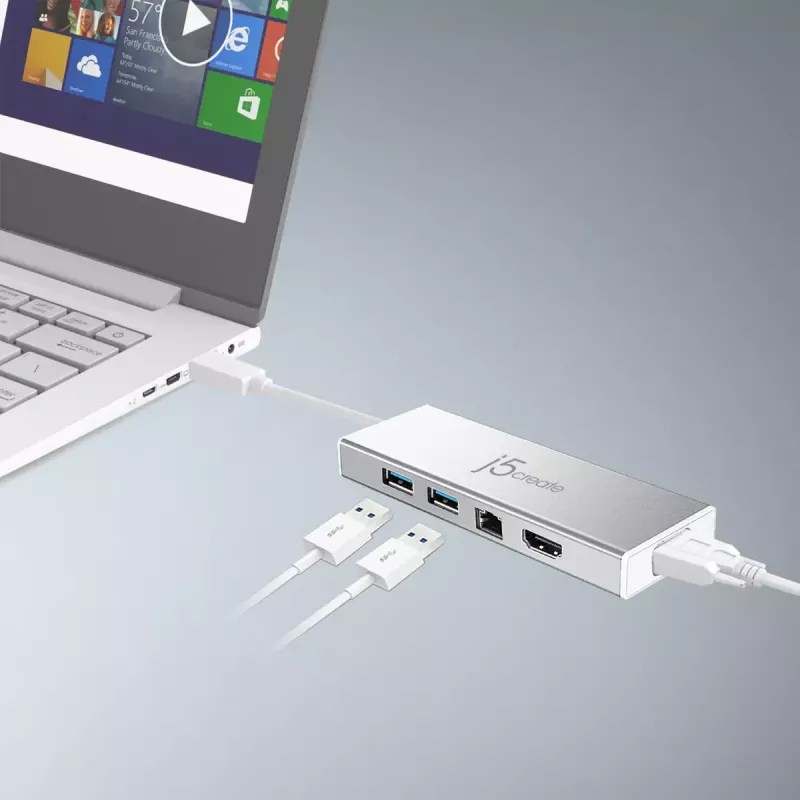

Connect the dock to your computer using the built-in USB 3.2 Gen 1 Type-A connector. Attach an external display to the HDMI or VGA port depending on the monitor input and desired resolution. Plug USB peripherals into the available USB Type-A ports. For wired network access, connect an Ethernet cable to the RJ45 port. Install any required drivers on the host system if prompted by the operating system.

Recommendations

For optimal display quality, use the HDMI output when available and ensure host drivers are up to date. Use a quality Ethernet cable for stable gigabit network performance. Avoid using multiple high-bandwidth USB devices simultaneously if the host USB port cannot provide sufficient power.
