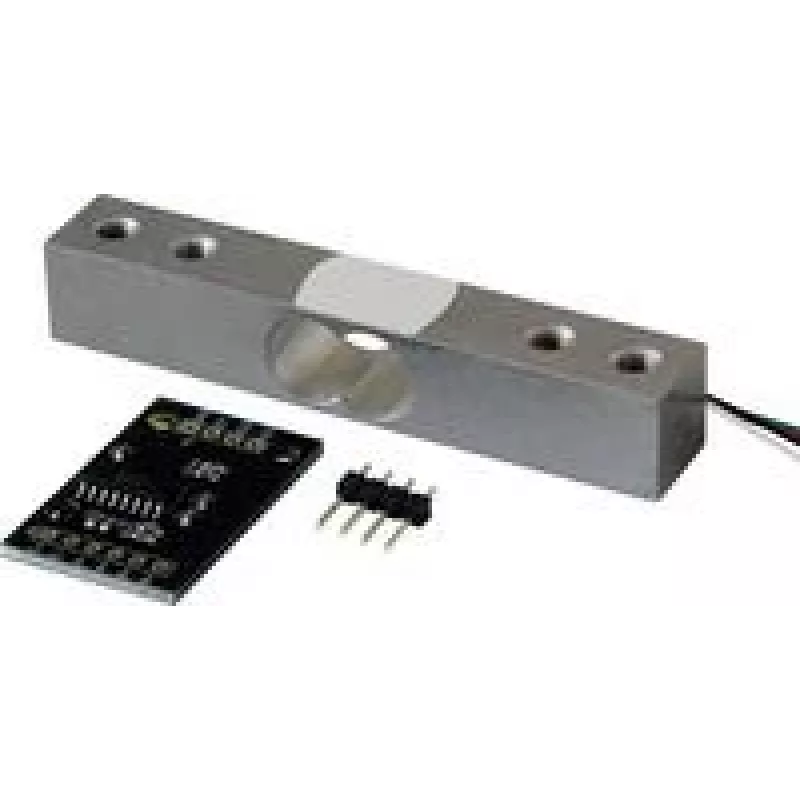

JOY-IT DEBO HX711-20 modulo ADC a 24 bit con cella di carico da 20 kg per misurazione del peso SEN-HX711-20

The JOY-IT DEBO HX711-20 is a precision 24-bit analog-to-digital converter module paired with a 20 kg strain gauge load cell, enabling accurate weight measurement for electronic scales and industrial control applications. Its integrated programmable gain amplifier ensures reliable signal conditioning for microcontrollers like Arduino, Raspberry Pi, and ESP32.

Advantages

The HX711 chip features two differential input channels, selectable gain (32, 64, 128), and a low-noise on-chip amplifier, delivering stable readings even with small load changes. The module operates from 2.6V to 5.5V DC and consumes less than 1.5 mA, making it suitable for battery-powered projects.

Suitable for

• DIY electronic scales and weighing systems
• Industrial process monitoring
• Force and pressure measurement experiments
• Embedded systems with Arduino, Raspberry Pi, or ESP32

Key specifications

• ADC resolution: 24-bit
• Load cell capacity: 20 kg
• Operating voltage: 2.6V - 5.5V DC
• Interface: 2-wire serial (clock and data)
• Output data rate: 10 SPS or 80 SPS selectable
• Module dimensions: 38mm x 21mm x 10mm
• Load cell dimensions: 80mm x 12.7mm x 12.7mm

Recommendations

For best accuracy, calibrate the load cell with known weights and ensure stable mechanical mounting. Use a separate power supply for the load cell excitation to minimize noise.
