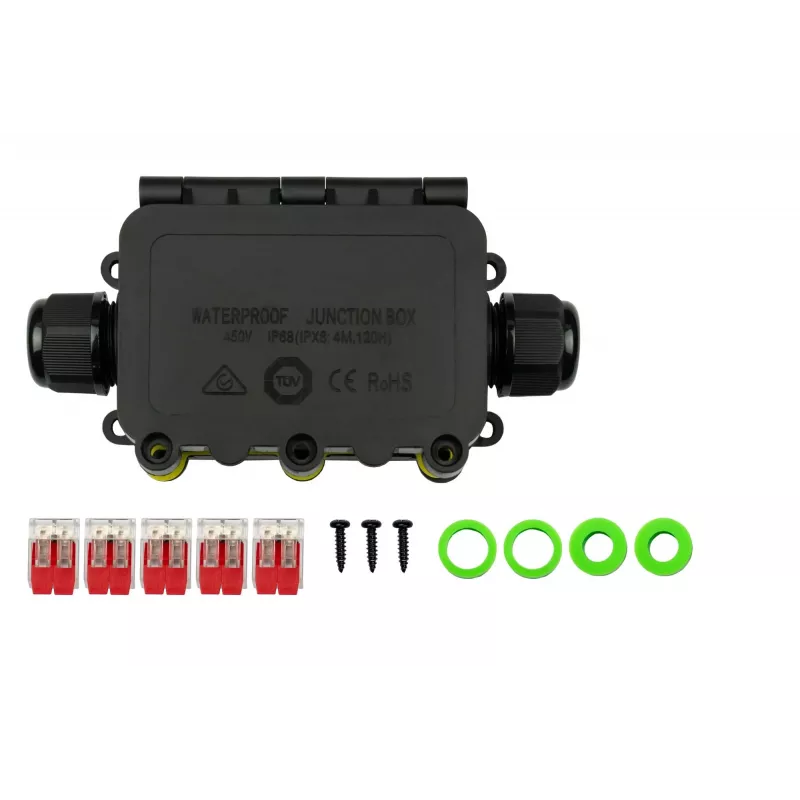

KABELMEISTER scatola di giunzione per cavi IP68 a 2 vie senza utensili

For outdoor and underground electrical connections that must survive moisture, dust, and time, this junction box eliminates the need for screwdrivers or terminal blocks. Two cable entries with integrated lever clamps grip conductors from 0.5 to 2.5 mm² instantly, while the IP68-rated housing and silicone seals keep water and debris out even under temporary submersion. The compact black PA66 body withstands temperatures from -40°C to +105°C, making it a reliable choice for garden lighting, pond pumps, or buried cable splices.

Highlights

• Tool-free lever clamps for fast, secure 3-pole connections (L, N, PE)
• IP68 protection against dust and continuous immersion in water
• Accepts round cables with diameters from 4 to 14 mm via M25 glands
• Rated for up to 450 V AC and 24 A, suitable for mains voltage
• Durable PA66 housing with silicone seals, operating range -40°C to +105°C
• Surface-mount design with fixing holes for stable installation

In daily use

Strip the cable ends, lift the orange lever, insert the conductors, and press down—the connection is complete in seconds. No special tools or crimping required. The transparent cover allows a quick visual check of the wiring, and the two M25 cable glands can be tightened by hand for a watertight seal. Whether you are repairing a garden cable, extending an outdoor socket, or installing low-voltage landscape lighting, this box keeps the splice protected and accessible for future maintenance. Its compact size fits easily into cable ducts, junction pits, or behind outdoor fixtures.

Full specifications

• Product type: Cable junction box
• Number of cable entries: 2
• Connection method: Tool-free lever clamps
• Number of poles: 3 (L, N, PE)
• Max voltage: 450 V AC
• Max current: 24 A
• Compatible cable diameter: 4–14 mm
• Conductor cross-section: 0.5–2.5 mm²
• Housing material: PA66 (nylon)
• Seal material: Silicone
• IP protection class: IP68
• Operating temperature: -40°C to +105°C
• Cable gland type: M25
• Mounting type: Surface mount with fixing holes
• Certifications: CE, RoHS
• Colour: Black

Final note

Built for harsh environments, this junction box delivers a reliable, maintenance-free connection that saves time on every installation—no more fiddling with small screws in the dark or worrying about water ingress.
