Lampada da parete esterna Steinel L 691 S PMMA, LED 8,5 W, sensore PIR, 360°/7 m, antracite, alluminio/plastica

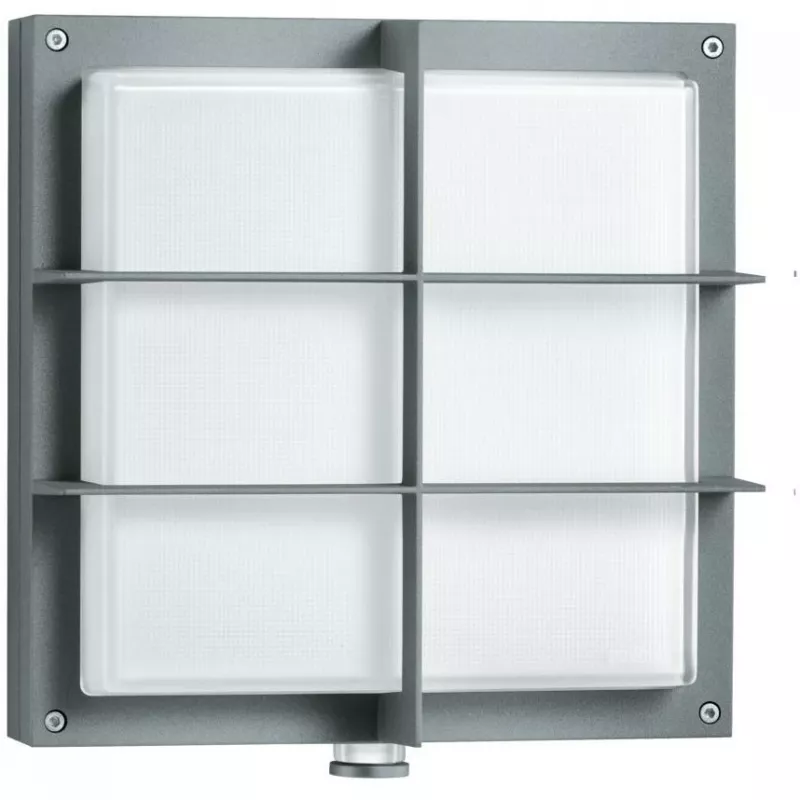

The Steinel L 691 S PMMA is a square outdoor wall light with an anthracite aluminium base and impact-resistant PMMA shade. It integrates a non-replaceable 8.5 W LED that produces around 576 lm and a 360° passive infrared motion sensor with a detection range up to 7 m. The luminaire includes features such as basic light-level function, soft light start, adjustable time and twilight thresholds, and the option to interconnect units by cable. It is designed for energy-efficient, automatic illumination of entrances, façades and paths.

Advantages

The lamp combines durable materials and compact styling with energy-efficient LED technology and an integrated PIR sensor, delivering bright light while minimising power consumption. Its impact-resistant PMMA shade and aluminium base increase robustness for outdoor use, and the included protective grid guard enhances physical protection. Adjustable settings for sensitivity, run time and twilight threshold provide flexibility for different installation locations, while the ability to connect multiple units by cable supports professional and larger installations.

Suitable for

• Illuminating residential entrances and porches
• Lighting façades and exterior walls
• Providing motion-activated pathway and driveway lighting
• Use in professional outdoor installations where robustness and interconnection are required

Key specifications

• Integrated LED power: 8.5 W, luminous flux approximately 576 lm
• Detection: 360° passive infrared sensor, range up to 7 m
• Supply voltage: 220–240 V AC, 50/60 Hz
• Housing: aluminium base with impact-resistant PMMA shade and protective grid guard
• Functions: basic light-level function, soft start, adjustable time and twilight thresholds
• Dimensions (approx.): 291 × 126 × 303 mm

How to use

Mount the luminaire on a vertical exterior surface at the recommended height so the PIR sensor covers the desired detection area. Connect to the mains supply following local regulations and, if required, interconnect additional units by cable. Adjust the twilight threshold to define when the sensor becomes active, set the desired run time and fine-tune sensor sensitivity for reliable motion detection. No lamp replacement is necessary for the integrated LED during normal service life.

Recommendations

Position the unit to avoid direct exposure to moving vegetation or heat sources that can cause false triggers; for consistent coverage install at a height appropriate to the specified 7 m detection radius. For larger areas or continuous illumination, use interconnection by cable and coordinate settings between connected units.
