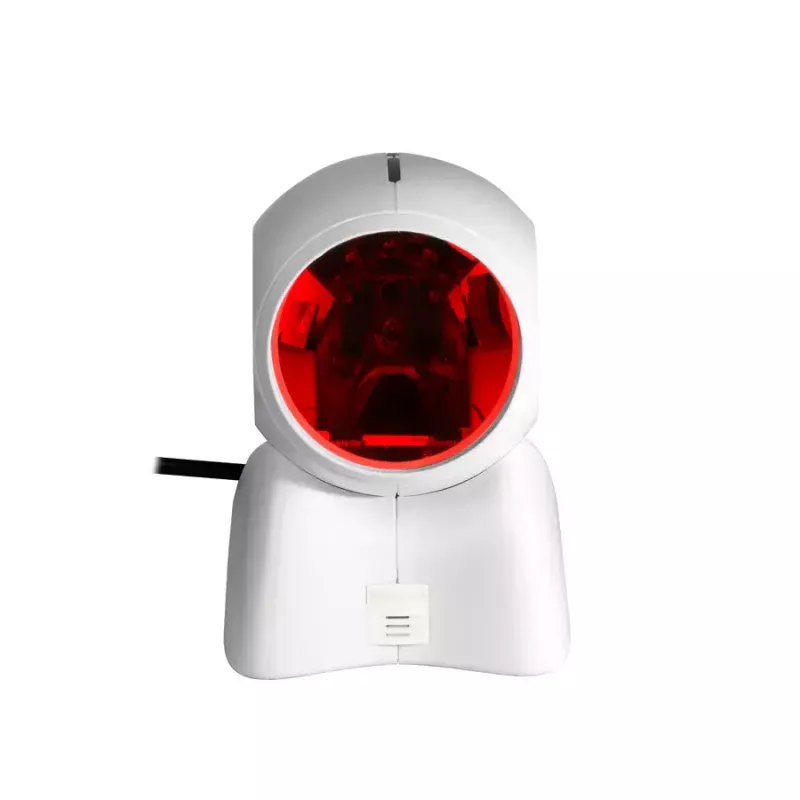

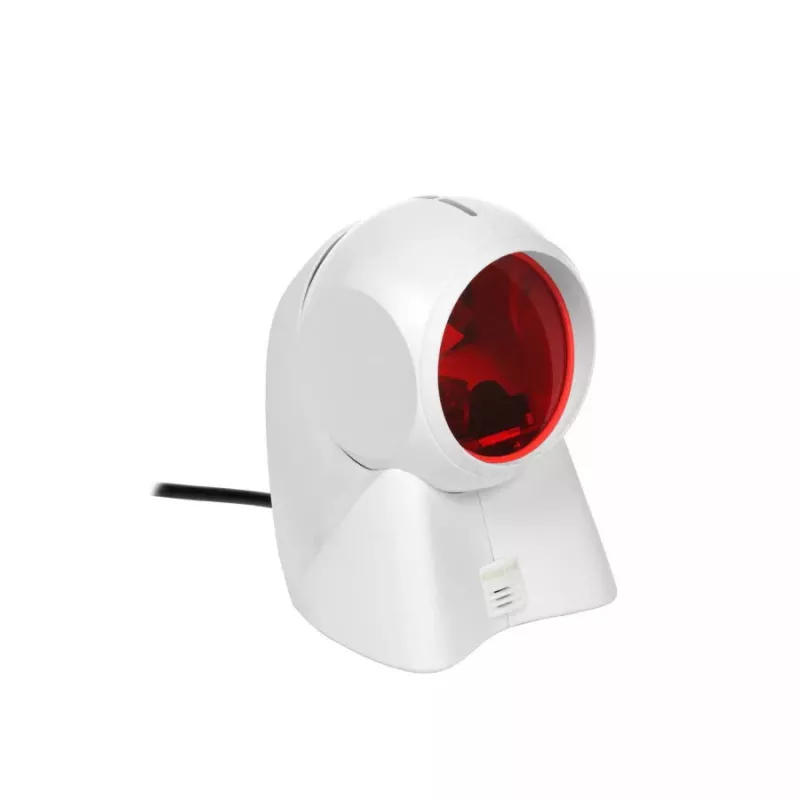

Lettore di codici a barre fisso Honeywell Orbit 7190g

The Honeywell Orbit 7190g fixed bar code reader combines proven 1D laser scanning with an integrated area imager to read printed 1D, digital 1D, 2D and PDF barcodes in one device. Designed for retail and point-of-sale environments, the Orbit 7190g supports wired connectivity (USB, RS-232, RS-485), provides LED status indicators and offers a compact, 410 g housing suitable for both countertop presentation and occasional handheld use.

Advantages

The Orbit 7190g uses breakthrough hybrid technology that integrates a 20-line omnidirectional laser pattern and a modern imager, allowing fast, reliable scanning of printed barcodes as well as smartphone-displayed coupons and IDs. Dual-working modes optimize performance for the cashier and the customer, while an adjustable scan head tilts up to 30° for easier targeting of large or bulky items. Automatic interface detection simplifies setup by configuring the appropriate communication protocol on connection.

Suitable for

• Retail checkout counters and point-of-sale terminals
• Self-service kiosks and customer-facing scanning
• Scenarios requiring mixed 1D and 2D barcode reading (printed and digital)
• Environments needing wired connectivity and reliable status indication

Key specifications

• Scanner type: 1D/2D
• Sensor type: Laser + imager
• Working distance: 327 mm (maximum)
• Read rate (max): 1120 reads/s
• Connectivity: Wired (USB, RS-232, RS-485)
• Supported 1D codes: Code 39, U.P.C., GS1 DataBar Omnidirectional
• Supported 2D codes: Data Matrix, PDF417, QR Code
• Power: 5 V DC, 472 mA
• Weight: 0.41 kg
• Product colour: White
• Certifications: CE, RoHS

How to use

Place the Orbit 7190g on the checkout counter or mount it according to your point-of-sale layout. Connect the scanner to your system via the appropriate wired interface (USB, RS-232 or RS-485); the device will automatically detect and configure the interface. Present printed barcodes or hold product barcodes in front of the scanner’s laser zone for omnidirectional 1D reading, or position smartphone screens within the imager field for digital 1D/2D and PDF code capture. Tilt the adjustable scan head up to 30° when scanning larger or bulky items to improve targeting.

Recommendations

For consistent read rates, keep the scan window clean and avoid direct sunlight on the imager. Use the dual-working modes to switch between customer-facing scanning of mobile codes and cashier-facing scanning of merchandise barcodes. Verify cable type before installation to ensure correct connectivity and power supply.
