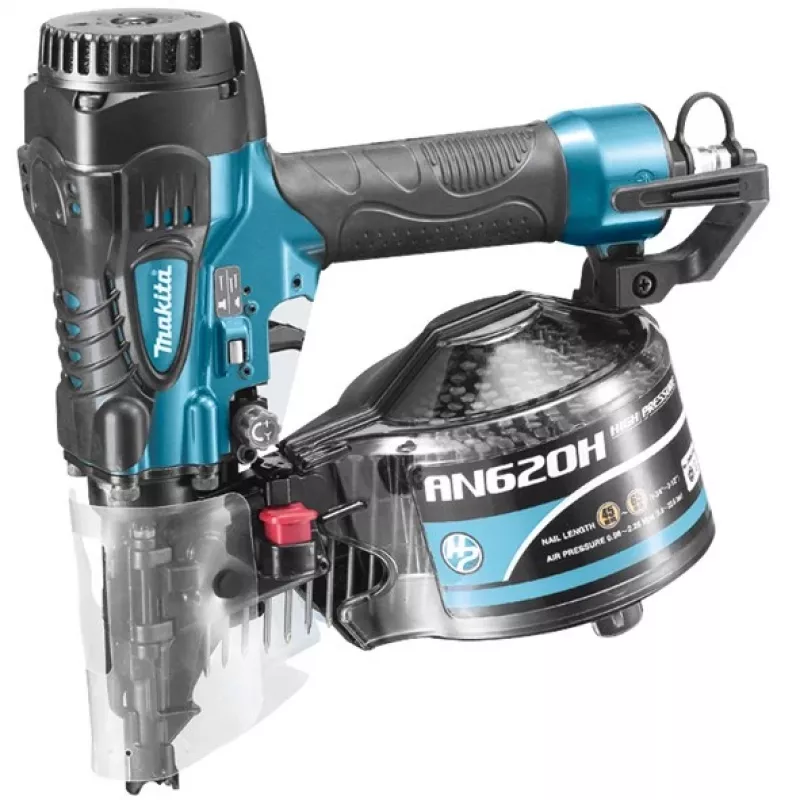

MAKITA AN620H chiodatrice pneumatica ad alta pressione 65mm

The MAKITA AN620H is a high-pressure pneumatic nailer designed for demanding fastening applications. It drives coil nails from 38 to 65 mm in length, making it ideal for sheathing, subflooring, decking, fencing, and siding. With a selectable sequential or contact trip firing mode and tool-less depth adjustment, this nailer offers precision and versatility on the job site.

Advantages

Built with a lightweight aluminum housing and ergonomic soft grip, the AN620H reduces user fatigue during extended use. The multi-directional exhaust allows you to direct air away from the work area, while the anti-dry fire mechanism prevents blank firing, extending tool life. Its high operating pressure range (12.8–22.6 bar) ensures consistent driving power even in tough materials.

Suitable for

• Sheathing and subflooring installation
• Decking and fencing projects
• Siding and exterior trim work
• General construction and framing

Key specifications

• Max Nail Length: 65 mm
• Min Nail Length: 38 mm
• Nail Type: Coil Nails
• Nail Diameter Range: 2.3–2.9 mm
• Magazine Capacity: 200–400 nails
• Operating Pressure: 12.8–22.6 bar (185–327 PSI)
• Air Inlet: 1/4" NPT
• Firing Mode: Sequential / Contact Trip (Selectable)
• Depth Adjustment: Tool-less
• Magazine Angle: 15 degrees
• Housing Material: Aluminum
• Noise Level (LpA): 90 dB(A)
• Vibration Level (ah): 2.5 m/s²
• Power Source: Pneumatic (High Pressure)
• Recommended Hose: High Pressure Hose
• Exhaust: Multi-directional
• Anti-Dry Fire Mechanism: Yes
• Handle Grip: Ergonomic Soft Grip

Recommendations

For best performance, use with a high-pressure air hose and ensure the compressor delivers the required operating pressure. Always wear appropriate personal protective equipment, including hearing protection, as noise levels can reach 90 dB(A).
