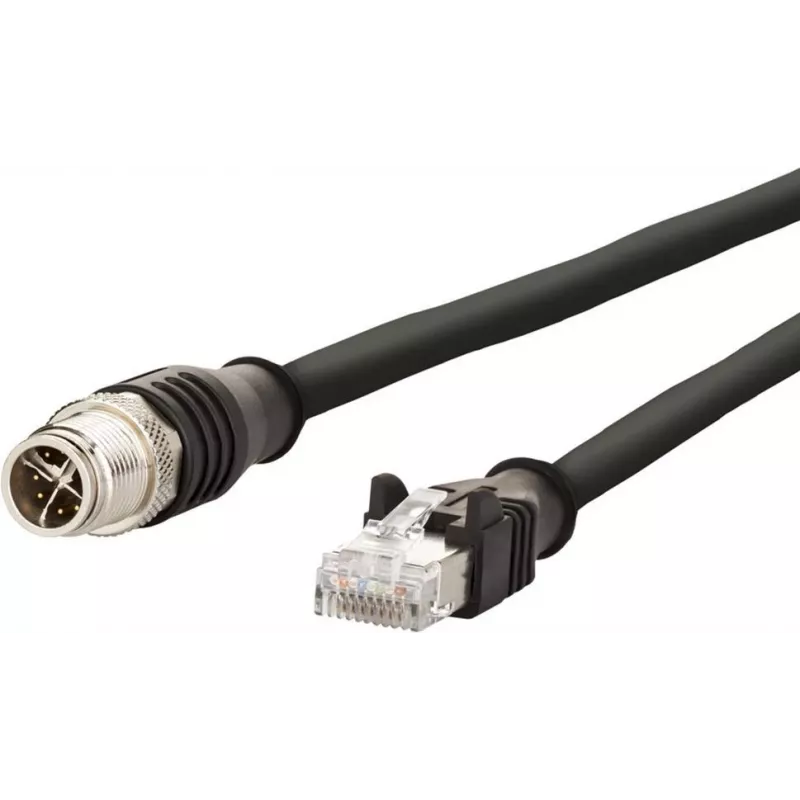

METZ CONNECT cavo di collegamento M12 nero 4 poli codifica X 2m - rete - 2 m

The METZ CONNECT M12 connection cable is a high-performance industrial Ethernet cable designed for reliable data transmission in demanding environments. With M12 male connectors on both ends, 4-pin X-coded configuration, and a length of 2 meters, this cable supports 10 Gigabit Ethernet (10GBASE-T) and is ideal for PROFINET and EtherCAT applications. The black PUR jacket provides excellent durability, oil and UV resistance, and halogen-free construction, making it suitable for harsh industrial settings.

Advantages

This cable offers robust performance with S/FTP (PiMF) shielding for superior electromagnetic interference protection. Its IP67 rating when mated ensures protection against dust and water ingress. The X-coded design prevents incorrect mating and supports high-speed data transfer. The PUR jacket is flexible, abrasion-resistant, and withstands extreme temperatures from -40°C to +85°C.

Suitable for

• Industrial Ethernet networks
• PROFINET and EtherCAT systems
• Factory automation and machine building
• Robotics and motion control
• Outdoor and harsh environment installations

Key specifications

• Connector Type: M12 Male to M12 Male
• Number of Poles: 4-pole
• Coding: X-coded
• Cable Length: 2.0 m
• Cable Color: Black
• Jacket Material: PUR (Polyurethane)
• Shielding: S/FTP (PiMF)
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Conductor Size: AWG 26/7
• Conductor Material: Stranded Copper
• Operating Temperature Range: -40°C to +85°C
• Ingress Protection (Mated): IP67
• Halogen-free: Yes
• Oil Resistance: Yes
• UV Resistance: Yes
• Standard Compliance: IEC 61076-2-109
• Voltage Rating: 60 V

Recommendations

For optimal performance in industrial Ethernet applications, pair this cable with compatible M12 X-coded connectors and devices. Ensure proper mating to achieve IP67 protection. Suitable for use in cable trays, drag chains, and direct burial applications where durability is critical.
