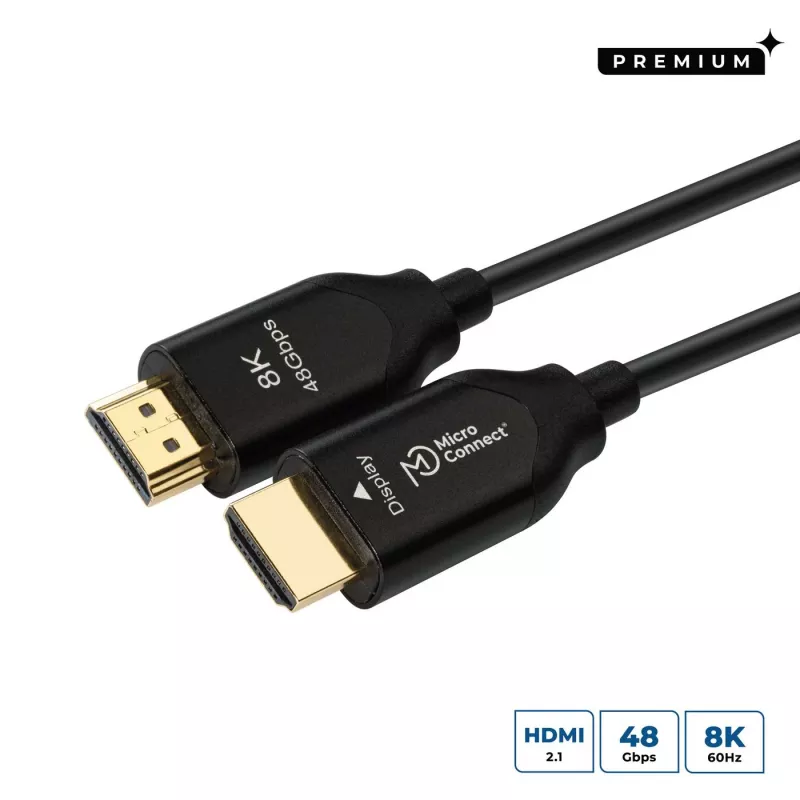

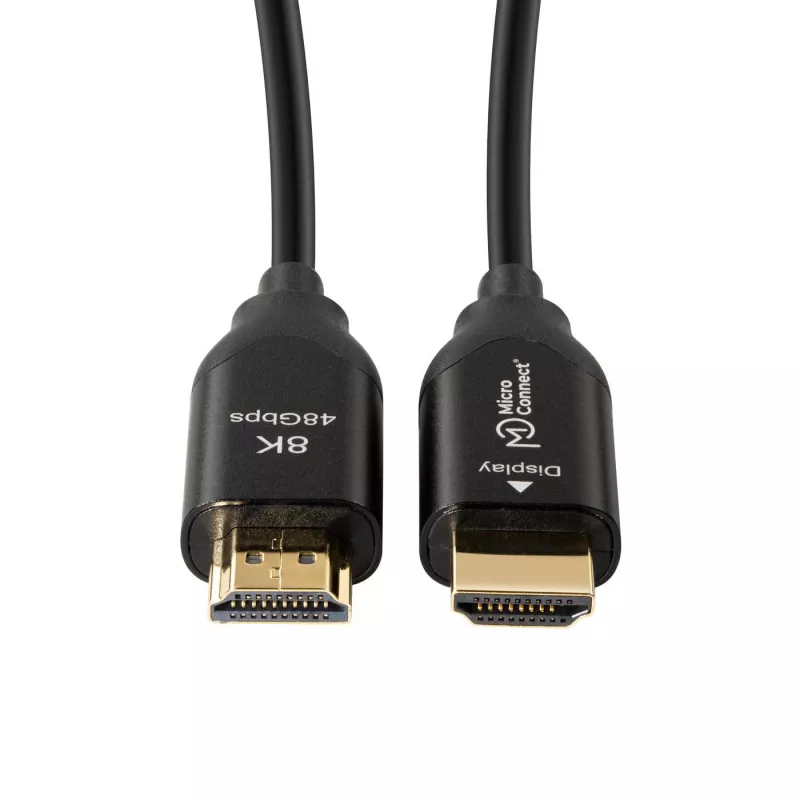

Microconnect HDM191925V2.1OP cavo HDMI 25 m HDMI Type-A (standard) nero

The MicroConnect HDM191925V2.1OP is a 25 m HDMI Type A to Type A hybrid active cable designed for long-reach HDMI connections. It combines an optical engine with a lightweight, flexible hybrid cable to deliver reliable HDMI 2.1 signal transmission up to 25 m and—depending on configuration—supports extended reaches up to 100 m while maintaining full HDMI signal integrity and plug-and-play operation without external power.

Advantages

This HDMI active hybrid cable supports HDMI maximum data rate 12 Gbps per lane (total 48 Gbps bandwidth) and ARC, while offering a small long-term bending radius (45 mm), low weight and high flexibility. The embedded optical engine preserves signal quality over long distances and the cable requires no external power for standard operation.

Suitable for

• Connecting TVs to set-top boxes or AV receivers
• Linking projectors to media players in conference rooms or classrooms
• Connecting gaming consoles or PCs to large-screen displays
• Installations requiring a 25 m HDMI Type A cable with minimal signal loss

Key specifications

• Cable length: 25 m
• Connectors: HDMI Type A (Standard) — both ends
• HDMI version: 2.1
• Bandwidth: up to 48 Gbps total (12 Gbps per lane)
• Audio Return Channel (ARC) supported
• Colour: Black
• Minimum bending radius (long-term): 45 mm
• Plug and play; no external power required for typical use

How to use

Connect one HDMI Type A connector to the source device (for example a Blu-ray player, gaming console or PC) and the other HDMI Type A connector to the display device (TV, monitor or projector). The cable is plug-and-play and should be recognised automatically by HDMI devices. Route the cable with a bending radius not smaller than 45 mm to avoid stress on the hybrid construction and maintain signal integrity.

Recommendations

For best performance, avoid tight bends and sharp kinks, use standard HDMI settings on connected devices, and ensure connectors are fully seated. If using lengths approaching 100 m in specialised installations, verify device compatibility and signal performance during setup.
