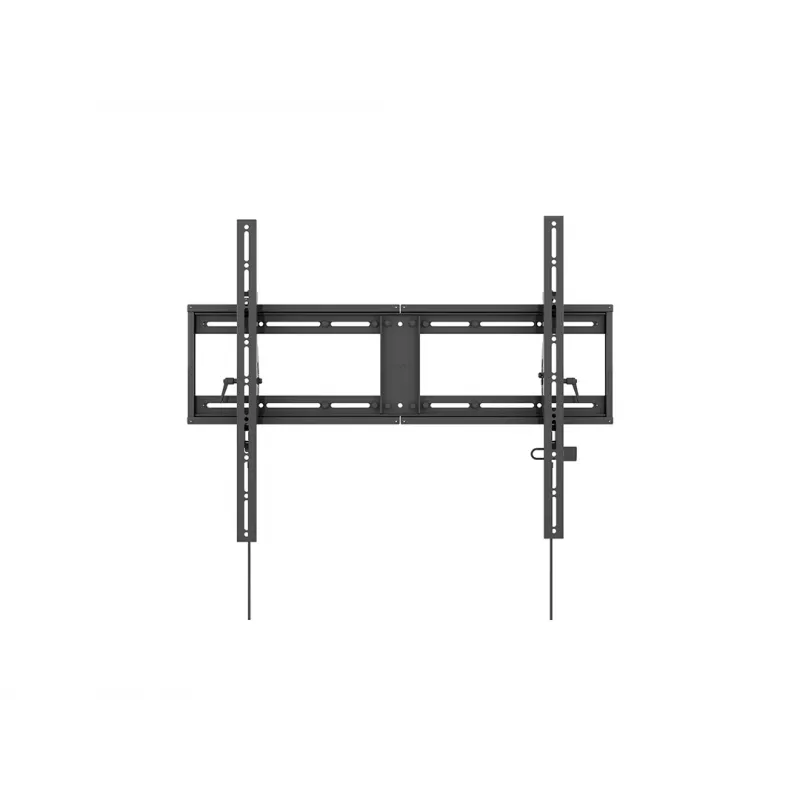

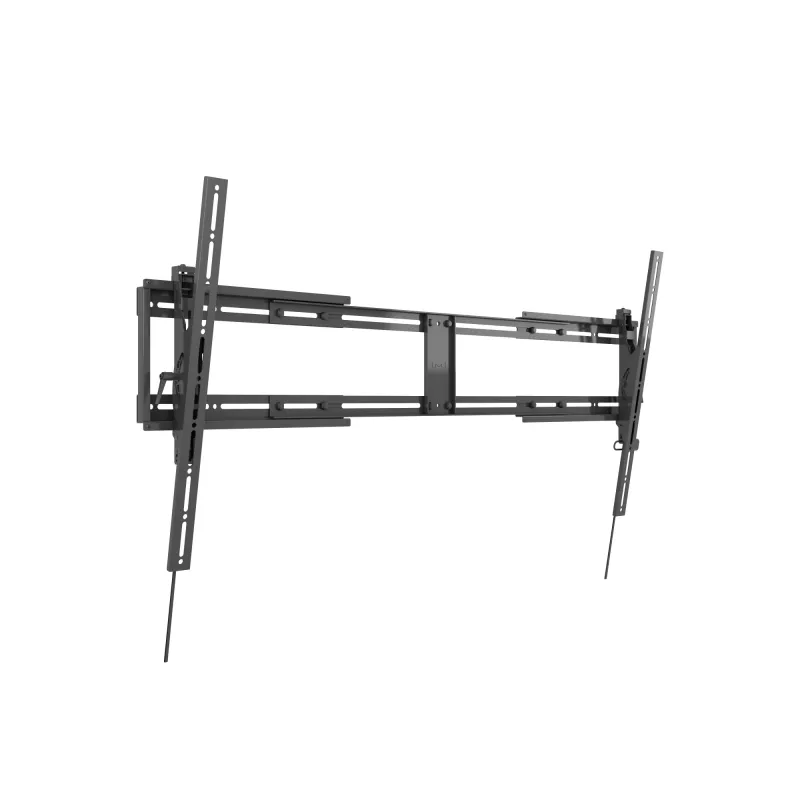

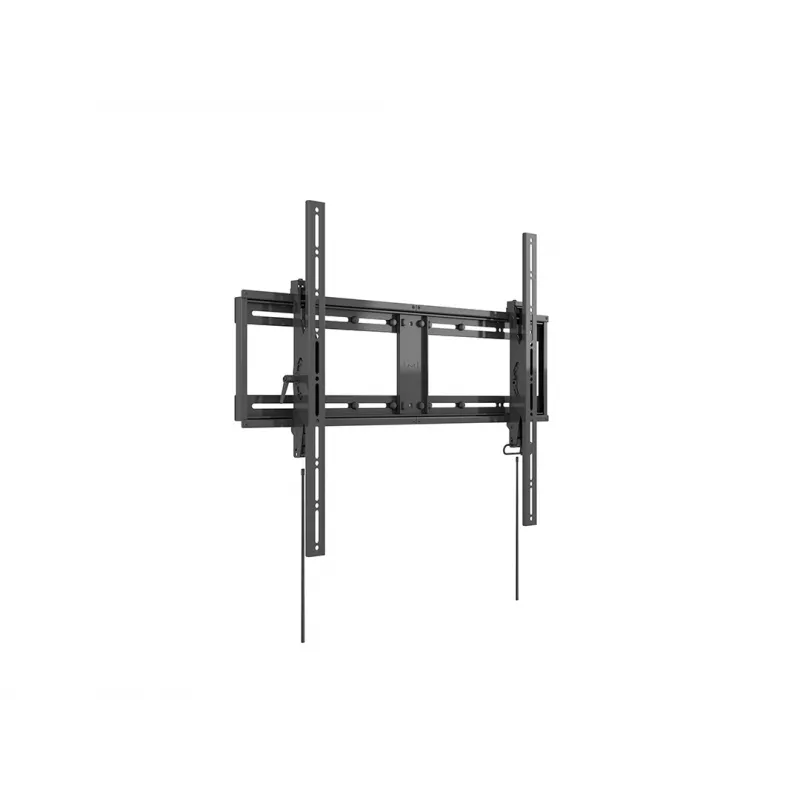

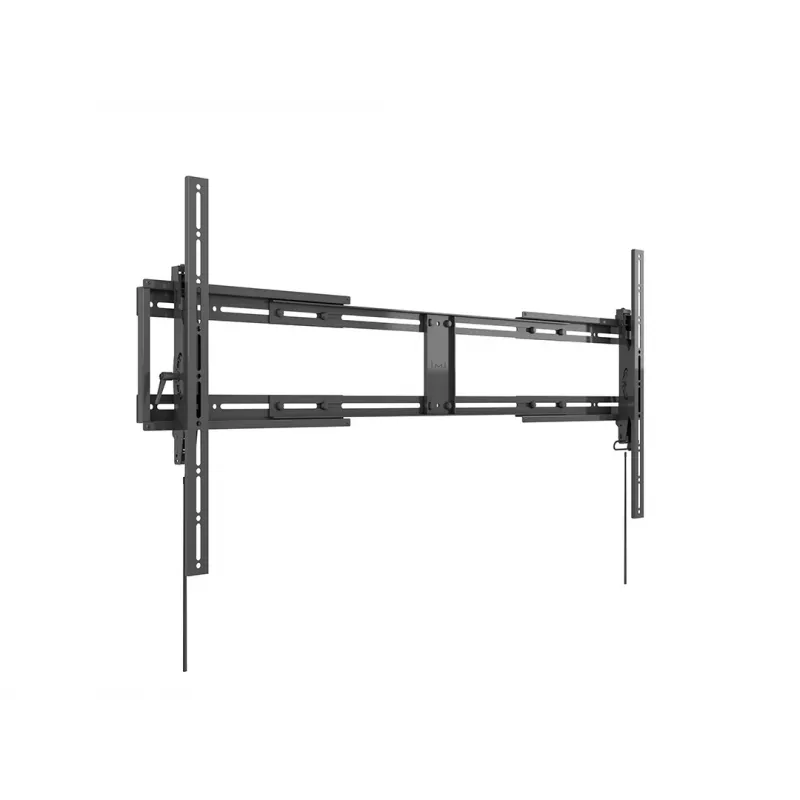

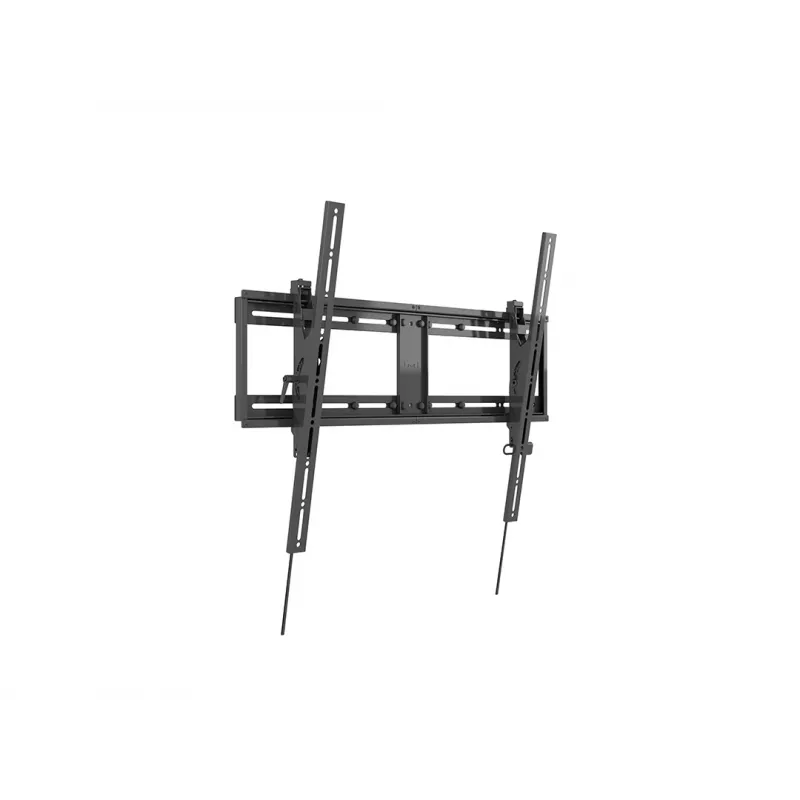

Multibrackets M Universal Wallmount Tilt X-Large portata massima 125 kg dimensione minima schermo 165,1 cm dimensione massima schermo 3,56 m

The Multibrackets M Universal Wallmount Tilt X-Large is a heavy-duty wall mount designed for large flat-panel TVs from 65" to 140" (165.1 cm to 3.56 m) with a maximum load of 125 kg. Its expandable wall plate and sliding vertical rails support VESA patterns up to 1200 x 800 mm while keeping the screen close to the wall at 74 mm, delivering a low-profile installation suitable for residential and commercial spaces.

Advantages

Durable steel construction and an open-frame design provide long-term stability and easy access to outlets and A/V cutouts behind the display. The mount includes micro-adjustment for precise post-installation height and level alignment, and a tool-free tilt mechanism that simplifies angle changes and cable access. Integrated Smart Magnet cable management hides quick-release straps to keep cables neat without altering the mount’s slim appearance.

Suitable for

• Large LED/LCD/OLED TVs from 65" to 140"
• Commercial displays in meeting rooms, lobbies, or retail environments
• Residential home theater and living-room installations

When it may not be suitable

This mount is not appropriate for screens that exceed the specified maximum weight or VESA pattern limits. It is also unsuitable for installations where the wall structure cannot support the specified 125 kg load without proper reinforcement or professional installation.

Key specifications

• Compatible screen size: 165.1 cm to 3.56 m (65"–140")
• Maximum weight capacity: 125 kg
• Supported VESA patterns: from 200 x 200 mm up to 1200 x 800 mm
• Tilt range: -10° to 10° (tool-free adjustment)
• Profile from wall: 74 mm (2.5 inches)
• Material and finish: steel, black
• Displays supported: single screen

How to use

Mount the expandable wall plate to a suitably rated wall surface, align the sliding vertical rails with the TV’s VESA holes, and secure the display to the bracket. Use the micro-adjustment feature to fine-tune height and level after the TV is mounted. Tilt the screen manually using the tool-free tilt mechanism to set the preferred viewing angle and access cable connectors through the open-frame design for quick connections.

What to consider before purchase

• Confirm your TV’s weight and VESA hole pattern fall within the stated limits.
• Verify the wall type and mounting location can support the load or arrange professional installation if needed.
• Check available clearance and viewing distance when placing very large screens.

Recommendations

For secure and long-lasting installation, use appropriate wall anchors or studs rated for 125 kg and follow the manufacturer’s installation instructions. If unsure about wall strength or load distribution, consult a qualified installer to ensure safe mounting of large displays.
