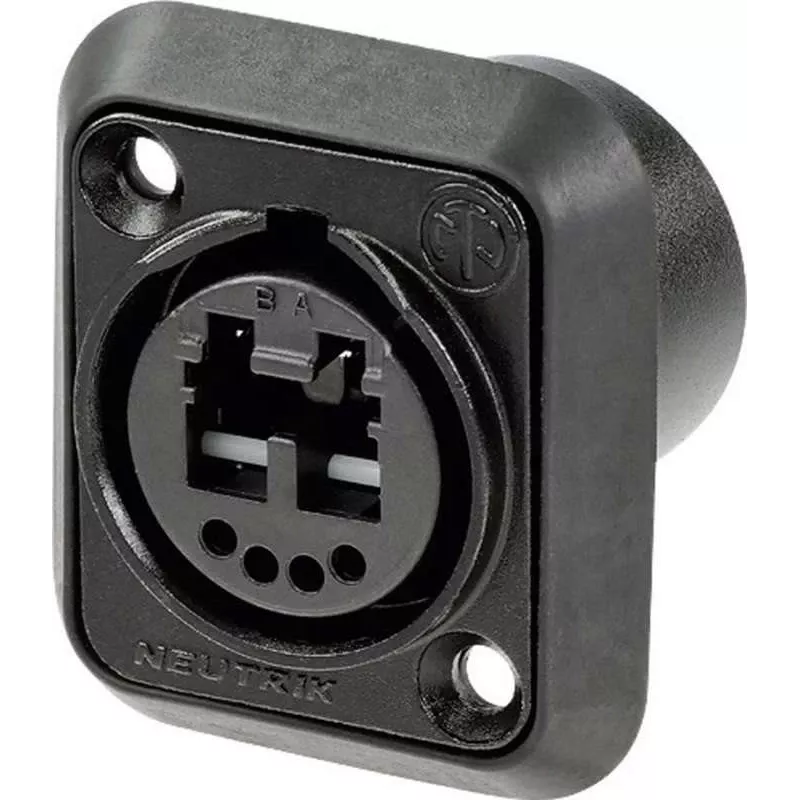

Neutrik NO2-4FDW-1-A opticalCON DUO connettore da incasso, LC-Duplex posteriore, nero montaggio pannello forma D

The NO2-4FDW-1-A sets itself apart by bringing Neutrik's rugged opticalCON DUO interface to standard LC-Duplex infrastructure. Where ordinary panel connectors force a choice between durability and compatibility, this unit combines a hardened front end with a conventional LC rear, so you can deploy it in demanding environments without reworking existing fiber cabling.

Highlights

• Front connector: opticalCON DUO, compatible with LC-Duplex patch cables when not mated with opticalCON cable connector
• Rear connector: LC-Duplex for direct connection to standard fiber optic equipment
• Supports multimode (OM1–OM4) and singlemode (OS1–OS2) fibers
• D-shape zinc diecast housing with black chrome plating for panel mounting
• IP65 protection when mated, dust and water resistant
• Typical insertion loss < 0.4 dB, return loss > 30 dB
• Over 1000 mating cycles for long service life
• Operating temperature range: -30 °C to +80 °C
• UL94 V-0 flammability rating

In daily use

Installation is straightforward: the D-shape housing fits standard panel cutouts and can be mounted from front or rear. The LC-Duplex rear simplifies integration with existing patch panels or equipment, while the opticalCON DUO front provides a robust connection point for temporary or frequently changed links. The black chrome finish resists wear and blends into professional rack setups.

Full specifications

• Brand: Neutrik
• Model: NO2-4FDW-1-A
• MPN: NO2-4FDW-1-A
• EAN: 7613187007811
• Connector type (front): opticalCON DUO
• Connector type (rear): LC-Duplex
• Number of fibers: 2 (Duplex)
• Fiber compatibility: Multimode (OM1, OM2, OM3, OM4), Singlemode (OS1, OS2)
• Housing shape: D-shape
• Housing material: Zinc diecast, black chrome plated
• Color: Black
• Mating cycles: > 1000
• Insertion loss (typical): < 0.4 dB
• Return loss (typical): > 30 dB
• Protection class (mated): IP65
• Temperature range: -30 °C to +80 °C
• Flammability rating: UL94 V-0
• Mounting type: Panel mount (front or rear)
• Dielectric strength: 1.5 kVDC
• Insulation resistance: > 2 GΩ
• Compatibility: Neutrik opticalCON DUO cable connectors

Final note

For broadcast, live sound, or industrial networks where reliability is non-negotiable, the NO2-4FDW-1-A delivers a professional-grade optical interface that bridges the gap between rugged field connectors and standard LC infrastructure.
