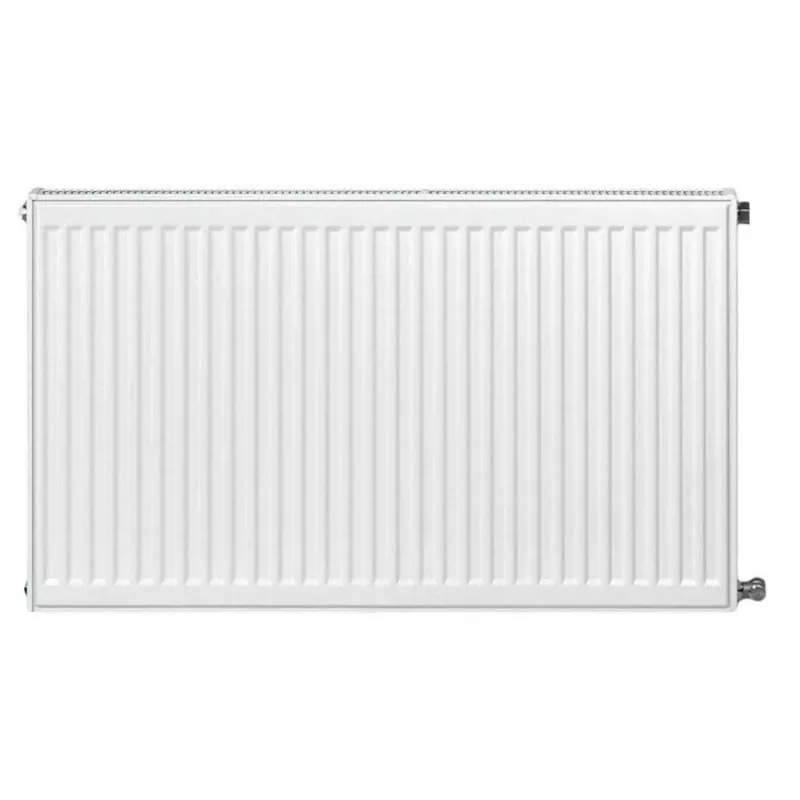

Radiatori VKU 22 (500x1400 mm)

For spaces where consistent, high-output warmth is non-negotiable, the Radiator VKU 22 (500x1400 mm) delivers a double-panel, double-convector design that outperforms single-panel units of the same footprint. Its 1400 mm width and 500 mm height make it a natural fit under wide windows or along exposed walls, while the 100 mm depth keeps it close to the wall without sacrificing thermal mass. Built from cold-rolled steel with phosphate treatment and cathodic dip painting, it resists corrosion and arrives with a clean RAL 9016 white finish that blends into most interiors.

Highlights

• Type 22 configuration: two panels and two convector fins for rapid, even heat distribution.
• Bottom right connection with 4 x G 1/2" internal threads simplifies plumbing alignment.
• Rated at 2750 W (ΔT 50K), suitable for medium to large rooms.
• Wall-mounted with included brackets, air vent plug, and blanking plug.
• Durable phosphate-treated steel with cathodic dip painting for long-term corrosion protection.

In daily use

This radiator responds quickly to thermostat changes thanks to its 9.5-litre water volume, balancing low thermal inertia with steady output. The bottom right connections keep pipework tidy, and the RAL 9016 white surface is easy to wipe clean. With a maximum operating pressure of 10 bar and temperature up to 110 °C, it is compatible with most closed central heating systems. Installation is straightforward: the included wall brackets support the 500 x 1400 mm panel securely, while the air vent and blanking plug allow for efficient filling and bleeding.

Full specifications

• Radiator type: Panel radiator, Type 22 (double panel, double convector)
• Dimensions (H x W x D): 500 x 1400 x 100 mm
• Material: Cold-rolled steel sheet
• Connection: Bottom right, 4 x G 1/2" internal thread
• Heat output: 2750 W at ΔT 50K
• Max. operating pressure: 1.0 MPa (10 bar)
• Max. operating temperature: 110 °C
• Water volume: 9.5 litres
• Surface finish: White (RAL 9016)
• Corrosion protection: Phosphate treatment, cathodic dip painting
• Mounting: Wall-mounted, brackets included
• Included accessories: Wall brackets, air vent plug, blanking plug
• Packaging: Cardboard and shrink wrap

Final note

A dependable Type 22 radiator for efficient, high-capacity heating in residential or light commercial settings.
