OBO BETTERMANN coperchio per curva verticale DBV 60 200 per FS, discendente (7130860)

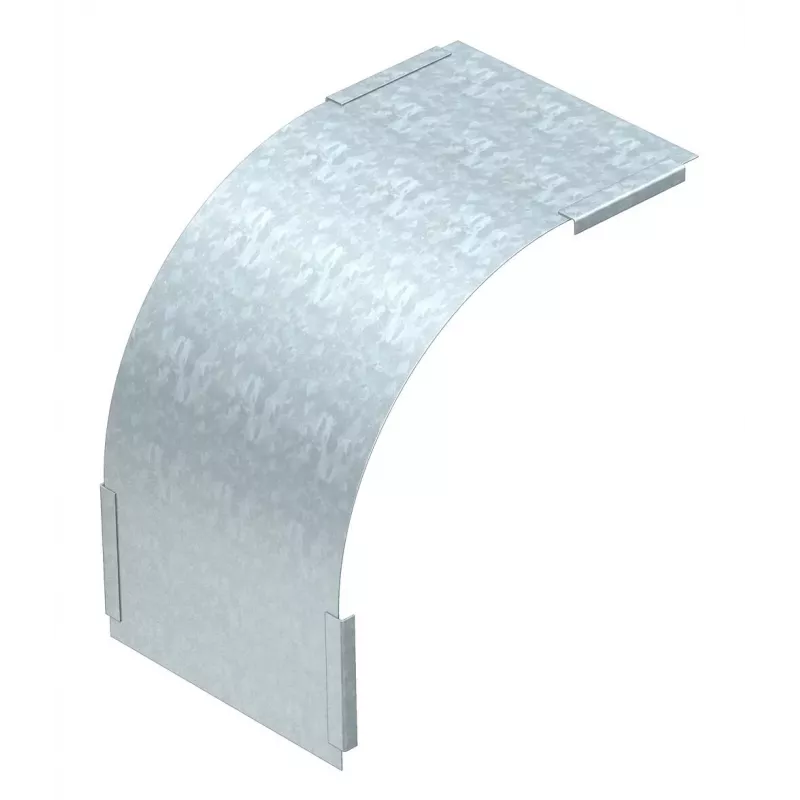

In industrial and commercial buildings, cable tray systems route power and data cables along walls and ceilings. When a vertical bend changes the cable path downward, the OBO BETTERMANN Cover for Vertical Bend DBV 60 200 for FS, Falling (7130860) provides a protective cover that matches the bend geometry. It is used by electrical installers and panel builders who need to enclose cables at 90° falling bends in 60 mm side height, 200 mm wide cable trays.

Key specifications

• Product type: Cover for vertical bend
• Compatible tray width: 200 mm
• Compatible tray side height: 60 mm
• Bend direction: Falling (downward)
• Bend angle: 90°
• Bend radius: 300 mm
• Material: Steel
• Surface treatment: Hot-dip galvanized (FS)
• Material thickness: Approx. 1.0 mm
• Mounting method: Clip-on / fastening
• Standard: DIN EN 61537
• Colour: Metallic

Why choose it

The cover is made from steel with hot-dip galvanizing, providing corrosion protection for long-term use in indoor environments. Its dimensions are matched to OBO BETTERMANN cable trays with 60 mm side height and 200 mm width, ensuring a precise fit at falling bends. The clip-on mounting allows quick installation without additional tools.

Ideal use cases

• Covering vertical falling bends in cable tray runs
• Protecting cables from mechanical damage and debris
• Maintaining a continuous enclosure in industrial cable routing
• Retrofitting existing OBO BETTERMANN tray systems

Good to know

This cover is part of the OBO BETTERMANN cable tray system and is designed for use with FS (hot-dip galvanized) trays. It complies with DIN EN 61537 for cable tray systems. The model number 7130860 identifies this specific size and finish.
