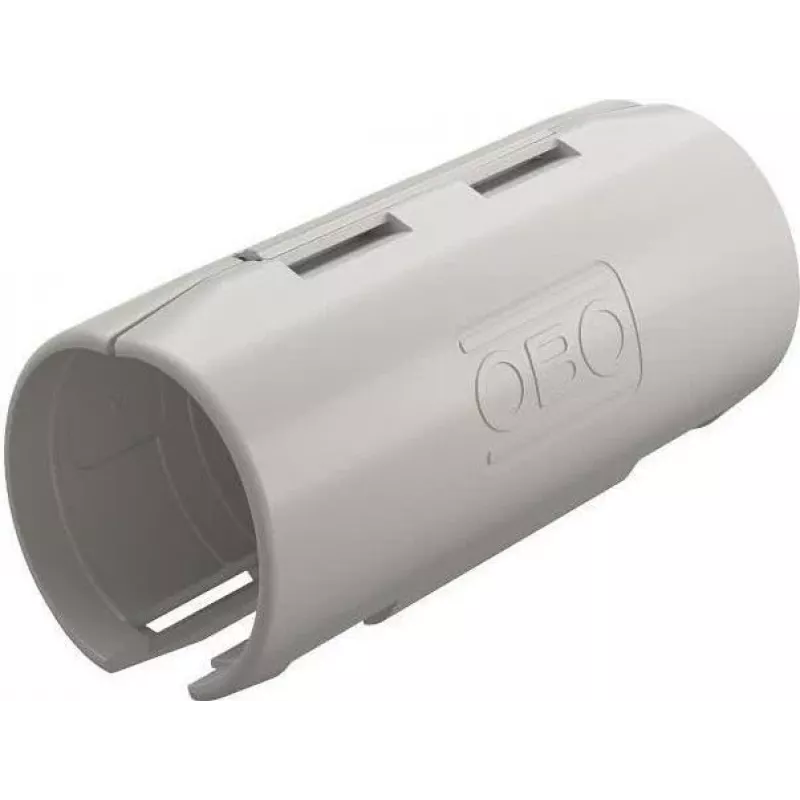

OBO BETTERMANN OBO 3000 MMS M25 LGR raccordo per tubo portacavi Quick-Pipe grigio chiaro 2154085

Where standard conduit couplings rely on threads or adhesives, the OBO 3000 MMS M25 LGR Quick-Pipe coupling locks two conduit ends together with a simple push — no tools, no sealant, no downtime. This light grey polypropylene fitting is purpose-built for the OBO Quick-Pipe system, delivering a secure, IP67-rated connection that keeps cables protected in demanding industrial and commercial environments.

Highlights

• Tool-free push-fit connection for rapid assembly and maintenance
• IP67 protection when correctly installed — dust-tight and protected against temporary immersion
• Halogen-free and UV-resistant polypropylene body for long service life
• Compatible with M25 rigid and flexible Quick-Pipe conduits
• Impact resistance IK08 withstands mechanical stress on site

In daily use

Electricians and panel builders value the MMS M25 LGR for its speed: align the conduit ends, push the coupling into place, and the connection is complete. The light grey RAL 7035 finish blends neatly with standard enclosures and cable trays. Because the material is halogen-free, it is safe for use in public buildings, tunnels, and other areas with strict fire-safety requirements. The wide temperature range from -25 °C to +60 °C allows installation in cold storage facilities as well as hot machinery zones.

Full specifications

• Brand: OBO BETTERMANN
• Model: OBO 3000 MMS M25 LGR
• MPN: 2154085
• EAN: 4012196870097
• Product type: Conduit coupling
• System compatibility: OBO Quick-Pipe System
• Nominal size: M25
• Material: Polypropylene (PP)
• Colour: Light grey (RAL 7035)
• Protection class: IP67 (when properly installed)
• Temperature range: -25 °C to +60 °C
• Halogen-free: Yes
• UV-resistant: Yes
• Impact resistance: IK08
• Connection type: Quick-connection / Push-fit
• Flammability class: UL94 V2
• Application: Connecting two Quick-Pipe conduits
• Mounting type: Push-fit
• Suitable for: Rigid and flexible Quick-Pipe conduits

Final note

For a fast, reliable, and maintenance-friendly conduit connection in demanding environments, the OBO 3000 MMS M25 LGR Quick-Pipe coupling is the professional choice.
