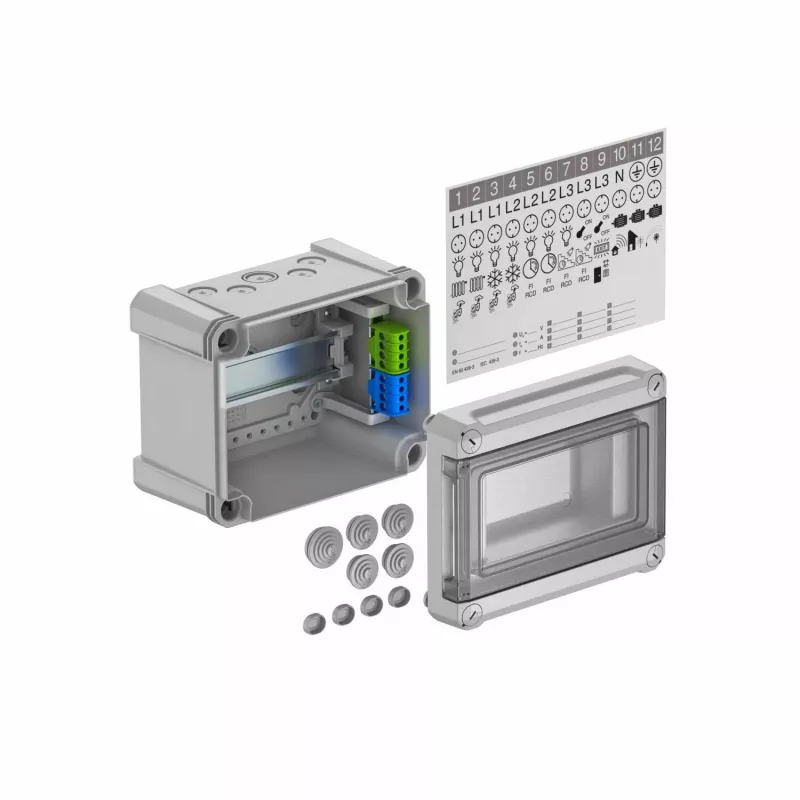

OBO Bettermann SDB 05 PS Quadro di distribuzione da parete per max. 5 moduli, IP65, grigio 2008804

The OBO Bettermann SDB 05 PS is a surface-mounted distribution board for up to 5 module units, offering robust protection and easy installation. Its transparent hinged door allows quick visual inspection of installed devices.

Advantages

The enclosure is made of polystyrene, providing a lightweight yet durable housing. It is halogen-free and UV resistant, suitable for various indoor and outdoor applications. Pre-stamped metric knockouts simplify cable entry.

Suitable for

• Residential and commercial electrical installations
• Distribution of power circuits with DIN rail devices
• Environments requiring IP65 protection

Key specifications

• Number of module units: 5
• Protection class: IP65
• Impact resistance: IK07
• Material: Polystyrene (PS)
• Colour: Grey (RAL 7035)
• Door type: Transparent, hinged
• Mounting type: Surface-mounted
• Glow wire test resistance: 650 °C
• Operating temperature range: -25 to +40 °C
• Halogen-free: Yes
• UV resistance: Yes
• Cable entry: Pre-stamped metric knockouts (e.g., M20/25/32)
• Number of rows: 1
• DIN rail included: Yes
• N/PE terminal included: Yes
• Rated insulation voltage: 400 V AC

Recommendations

For installations where visibility of circuit breakers is required, the transparent door provides convenient monitoring without opening the enclosure.
