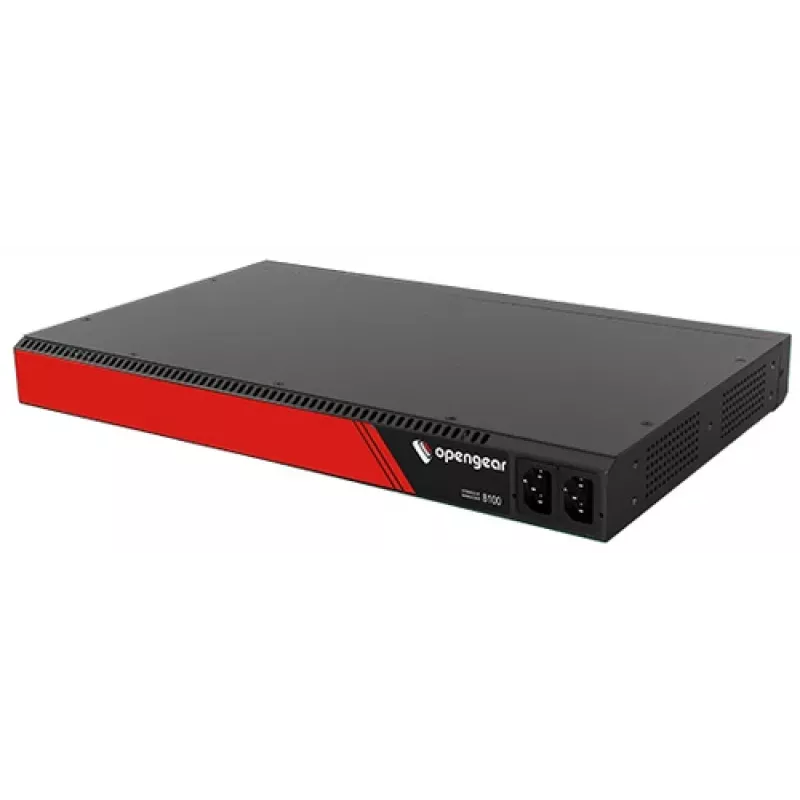

Opengear CM8132-10G server console seriale 32 porte con Dual-10GbE-SFP+ e Dual-10GbE-RJ45

When critical network infrastructure goes down, remote access becomes the difference between minutes of downtime and hours of costly outages. The Opengear CM8132-10G console server provides secure out-of-band management for up to 32 serial devices, ensuring your team can reach routers, switches, firewalls, and servers even when the primary network is unavailable.

Who is it for

This console server is built for enterprise data centers, remote branch offices, and industrial sites that demand always-on access to network equipment. It suits network engineers, system administrators, and IT operations teams who need reliable remote management, configuration, and troubleshooting without on-site visits.

Main features

• 32 RJ45 RS-232 serial ports for direct console connections to a wide range of devices.
• Dual 10GbE SFP+ and dual 10GbE RJ45 uplinks for high-speed, redundant network connectivity.
• Dedicated 1GbE management port isolates management traffic from data traffic.
• Quad-core ARM Cortex-A53 processor with 4GB RAM and 128GB SSD for fast, local logging and automation.
• Dual redundant hot-swappable AC power supplies eliminate single points of failure.
• Advanced security with FIPS 140-2 Level 2, TPM 2.0, and Secure Boot.
• Out-of-band cellular and Ethernet failover support keeps you connected during WAN outages.
• 1U rackmount form factor fits standard server racks.

Specifications

• Serial ports: 32 x RJ45 (RS-232)
• Ethernet uplinks: 2 x 10GbE SFP+, 2 x 10GbE RJ45
• Management port: 1 x 1GbE RJ45
• USB ports: 2 x USB 3.0 Type-A, 1 x USB 2.0 Type-B (console)
• Processor: Quad-core ARM Cortex-A53
• Memory: 4GB RAM, 16GB eMMC flash, 128GB SSD
• Power supply: Dual redundant AC, hot-swappable
• Power consumption (max): 60W
• Form factor: 1U rackmount
• Operating system: Opengear Linux-based OS
• Management: Web UI, CLI (SSH, Telnet), SNMP, RESTful API
• Security: FIPS 140-2 Level 2, TPM 2.0, Secure Boot
• Operating temperature: 0°C to 50°C

Tips

Pair the CM8132-10G with an Opengear Lighthouse license for centralized management of multiple console servers across distributed locations. Use the SFP+ ports with fiber transceivers for long-distance uplinks to core switches, and configure the cellular failover to maintain access even during complete WAN isolation.
