Parte del sistema di raffreddamento EK Water Blocks

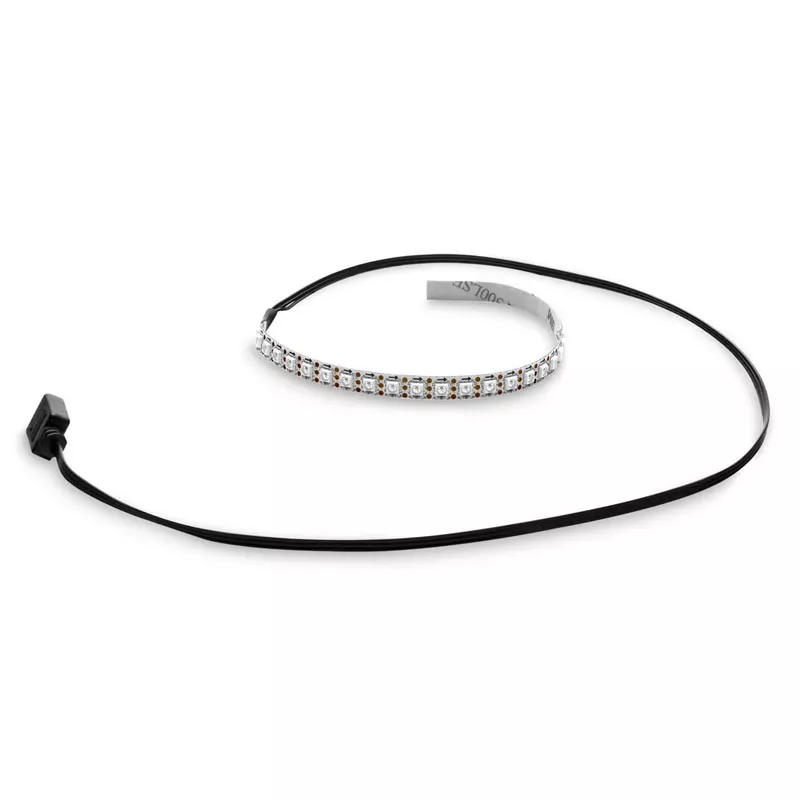

Replacement individually addressable D-RGB strip with densely packed LEDs for upgrading EK Water Blocks products. The strip is 200 mm long and contains 30 LEDs (equivalent to 15 LEDs per 100 mm). It is designed to replace standard RGB strips in CPU blocks, monoblocks, reservoirs, and pump-combo units and connects via a 3‑pin connector to 5 V D‑RGB headers found on most modern motherboards.

Advantages

The D‑RGB strip provides individually addressable lighting for more precise color and effect control. Its dense LED arrangement delivers uniform illumination in confined cooling components. The compact 200 mm length and standard 3‑pin 5 V connector ensure compatibility with many EK products and motherboard headers without additional adapters.

Suitable for

• Replacing standard RGB strips in CPU water blocks
• Upgrading lighting in monoblocks
• Installing in reservoirs and pump-combo units
• Systems with 5 V D‑RGB motherboard headers

Key specifications

• Length: 200 mm
• LED count: 30 LEDs (15 LEDs per 100 mm)
• LED type: individually addressable D‑RGB LEDs
• Connector: 3‑pin 5 V D‑RGB connector
• Color control: per‑LED addressability via compatible 5 V headers

How to use

Install the strip in place of the existing RGB strip inside the compatible EK component, aligning it to the mounting channel or adhesive surface. Connect the 3‑pin connector to a motherboard 5 V D‑RGB header, making sure pin orientation matches the board’s header. After connection, configure lighting effects using motherboard RGB software or compatible controllers.

Recommendations

Verify that your motherboard has a 5 V D‑RGB (3‑pin) header and that the EK component supports a 200 mm D‑RGB strip before installation; avoid forcing the connector and ensure firmware/software settings match 5 V D‑RGB control to prevent color or functionality issues.
