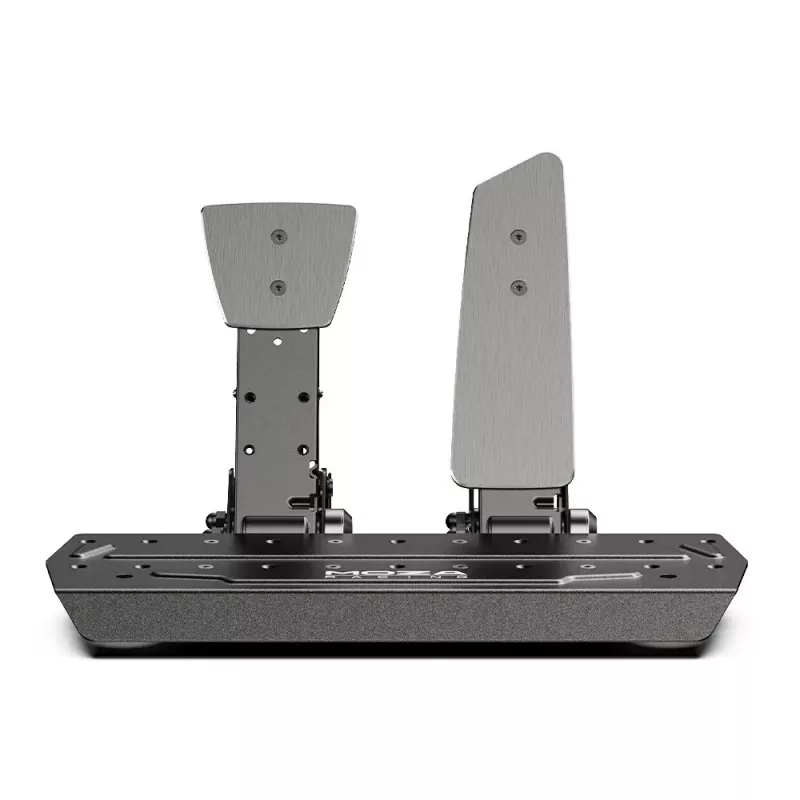

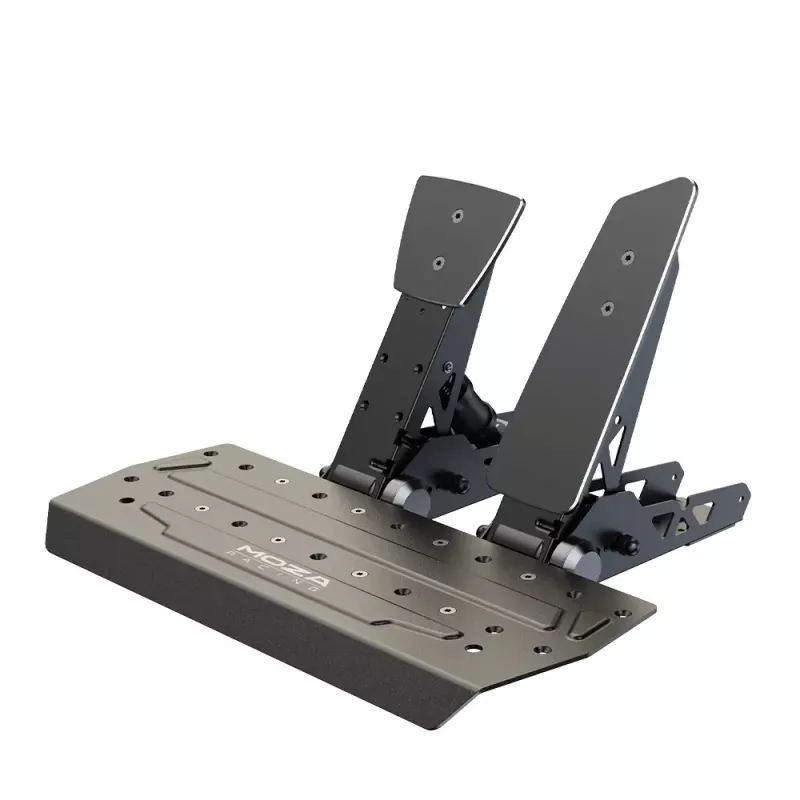

Pedale Moza Racing SR-P pedale acceleratore+freno PC USB sensore angolo di pressione

Made with High-strength Steel
The pedal is machined with high-strength steel, giving superior quality and endurance.

Floor Mounted Organ Type
Accelerator Pedal
The organ-type accelerator pedal allows the driver's foot and pedal to follow the same trajectory. Which makes throttle control easier and more accurate.

High Precision Pressure Sensor with
A Maximum Range of 75 KG
The MOZA SR-P pedals utilize pressure sensors with a maximum range of 75KG. The pressure sensors will detect the braking pedal stopping pressure . A user can obtain the ideal braking force by controlling the amount of pressure applied on the braking pedal.

16-bit High Precision Magnetic Encoder
The brake, clutch and throttle pedals all use 16-bit precision magnetic encoder with 65536 PPR resolution, a much higher resolution and more stable than a Hall sensor.

Dual Sensor Fusion Algorithm
The brake utilizes a pressure and angle sensor, allowing fine tuning of braking. The initial stage is dominated by the angle sensor, allowing racers to control the braking angle, the mid and last stage is controlled by the pressure sensor, which makes the pedal easier to control.

Braking Spring and Damping
Block Combined
Utilizing both a braking spring and damping block, racers can enjoy more control in the initial stage pedal travel, with a signature stiffness in the final stages of braking, highly simulating a real foot feel.

Build Your Ultimate Racing Experience
Order the MOZA SR-P pedal accessory kit to your needs. The accessory kit includes two springs and one damper, together with the spring and damper that come with the pedal set could create six different foot feel combinations. The springs and damping block in the accessory kit can increase dampening and shorten the braking distance, catering to the needs of pro users.

Direct connection with PC through USB port
The MOZA SR-P pedals could connect to PC easily through a USB port and calibrate through the MOZA Pit House software. Compatible with all simracing gears in the market.

Multiple use scenarios
The anti-slip mat at the bottom prevents the pedal from slipping while being used without professional brackets, while being easily applied to more professional setups

Detachable Pedal Design
Pedals can be detached and mounted onto other professional brackets with ease. For hardcore users, the pedals can also be reversed.

Pedal Output Curve Adjustment
MOZA's Pit House allows for easy configuration of the pedal output curves according to different needs.

Moza Racing SR-P Pedal( throttle+braker). Device type: Pedals, Gaming platforms supported: PC, Braking sensor type: Pressure + angle. Connectivity technology: Wired, Device interface: USB. Product colour: Black, Housing material: Aluminium, Steel. Power source: Cable. Cables included: USB Type-A to USB Type-B

How to use

Mount the pedal set on a stable surface or attach to a sim rig bracket using the removable pedal plates. Connect the pedals to a PC via the USB cable and launch MOZA Pit House to calibrate sensors, adjust pedal output curves and configure profiles. Fine-tune brake behavior by adjusting spring and damping components if required, and use the dual-sensor settings to balance angle- and pressure-based braking response.

Recommendations

For best results, calibrate the pedals in MOZA Pit House before first use. Start with default output curves and gradually adjust spring/damper combinations to match preferred brake stiffness and travel. Secure the pedals with the anti-slip mat or mounting hardware to prevent movement during vigorous use.
