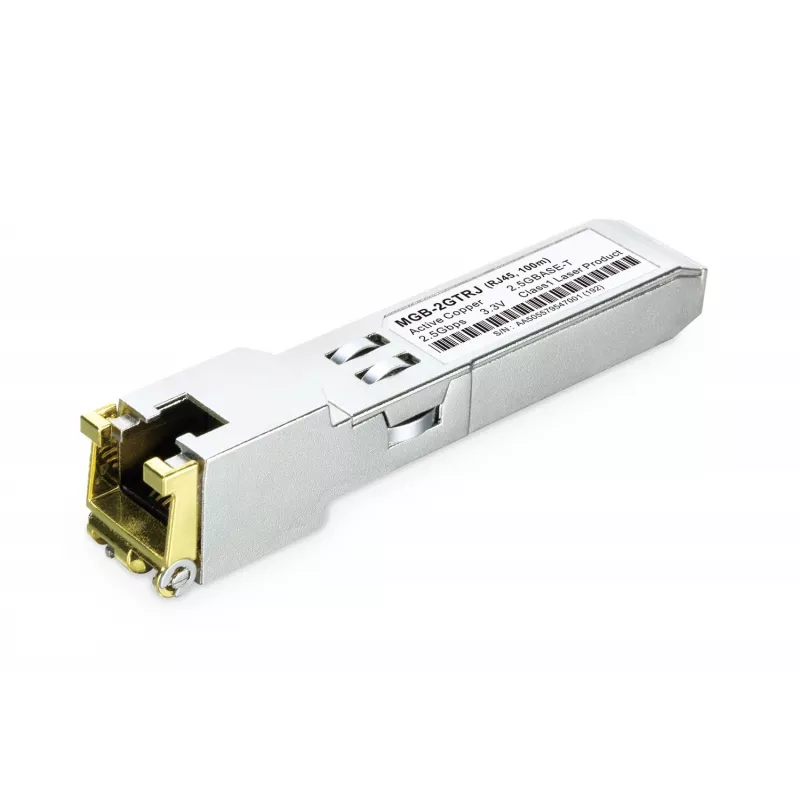

Planet 2.5GBASE-T SFP Transceiver in rame RJ45 (-40~85°C, 100m)

The Planet MGB-2GTRJ is a high-performance 2.5GBASE-T SFP copper transceiver designed for industrial environments. It provides reliable 2.5 Gigabit Ethernet connectivity over standard twisted-pair copper cabling, supporting distances up to 100 meters. With an extended operating temperature range of -40°C to 85°C, this transceiver is ideal for deployment in harsh conditions such as outdoor cabinets, factories, and warehouses.

Advantages

This transceiver offers a cost-effective upgrade path from 1G to 2.5G without replacing existing cabling infrastructure. It supports hot-plugging for easy installation and maintenance, and features Digital Diagnostic Monitoring (DDM/DOM) for real-time performance monitoring. The industrial temperature rating ensures stable operation in extreme environments.

Suitable for

• Industrial Ethernet networks requiring 2.5G connectivity
• Upgrading existing 1G SFP ports to 2.5G speed
• Connecting switches, routers, and NICs in data centers or enterprise networks
• Deployments in outdoor or temperature-controlled environments

Key specifications

• Transceiver Type: SFP
• Data Rate: 2.5 Gbps (2.5GBASE-T)
• Connector: RJ45
• Media: Copper
• Max Distance: 100 m (Cat5e/Cat6/Cat6a/Cat7)
• Operating Temperature: -40°C to 85°C
• Hot-Pluggable: Yes
• DDM/DOM: Yes
• Power Consumption: < 2.5W
• Voltage: 3.3V
• Standards: IEEE 802.3bz, SFP MSA
• Auto-Negotiation: Yes

Recommendations

For optimal performance, use high-quality Cat6a or Cat7 cabling. Ensure the host device supports 2.5GBASE-T and SFP MSA standards. This transceiver is fully compatible with Planet switches and other MSA-compliant equipment.
