Proiettore dati InFocus IN0046ST 4300 ANSI lumen DLP WXGA

The InFocus IN0046ST is a DLP data projector with WXGA native resolution (1200×800) and 4300 ANSI lumens brightness. Designed for classrooms and meeting rooms, it uses a lamp light source with an expected life of up to 15,000 hours, offers manual focus and fixed zoom, and supports a wide range of analog signal formats and graphics resolutions up to 1920×1200 (WUXGA). The projector is compact and lightweight at 2.9 kg and comes in a white finish.

Advantages

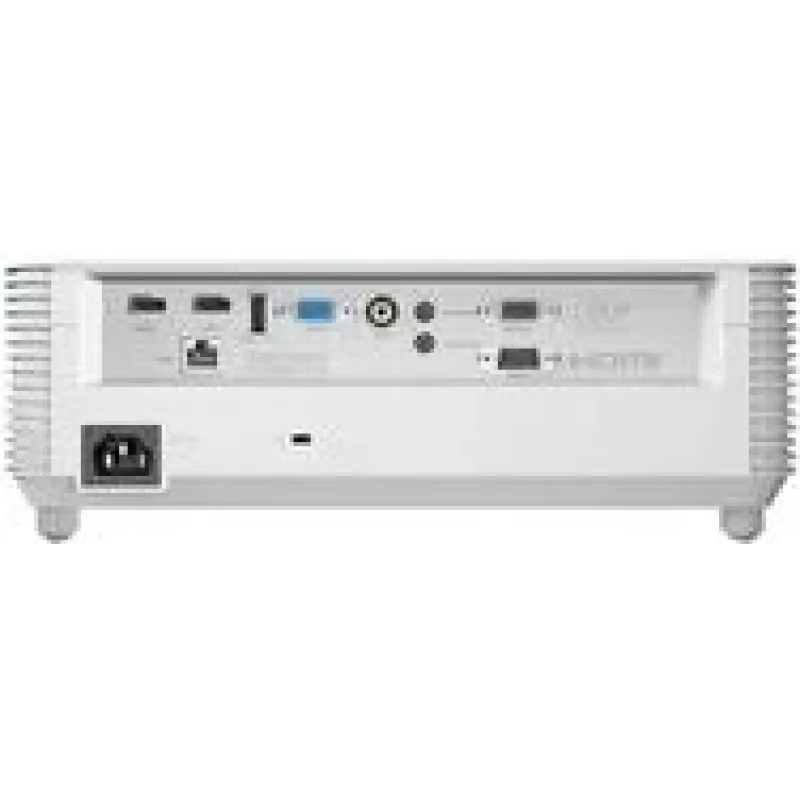

The IN0046ST supports common network control protocols such as Crestron, PJLink, AMX and Extron and provides an extensive set of RS232 commands, which simplifies integration into existing AV and network control systems. Available in both short-throw and standard-throw lens variants and with features like digital edge masking and image shift, the projector adapts to varied installation layouts. With 4300 ANSI lumens for the short-throw model, it delivers bright, clear images and accurate colours suitable for spaces with ambient light.

Suitable for

• Classroom and school presentations
• Meeting rooms and corporate training
• Small to medium-sized lecture halls
• Installations requiring network control and RS232 integration

Key specifications

• Model: InFocus IN0046ST (MPN: IN0046ST, EAN: 0850053009983)
• Projection technology: DLP
• Native resolution: WXGA (1200×800), aspect ratio 16:10
• Brightness: 4300 ANSI lumens
• Supported max resolution: up to 1920×1200 (WUXGA)
• Light source: Lamp, life up to 15,000 hours
• Focus/zoom: Manual focus, fixed zoom
• Weight: 2.9 kg; Colour: White

How to use

Place the projector at the appropriate throw distance for the chosen short-throw or standard-throw lens, connect the video source using the compatible analog input, and power on the unit. Use manual focus to sharpen the image and apply digital edge masking or image shift to align and size the picture precisely on your screen or surface. Configure network control or RS232 commands if you need remote management through Crestron, PJLink, AMX or Extron systems.

Recommendations

For best results in lit rooms, choose the short-throw IN0046ST placement that keeps ambient light off the projection surface, maintain the lamp according to the manufacturer's guidance, and calibrate colour and focus before important presentations.
