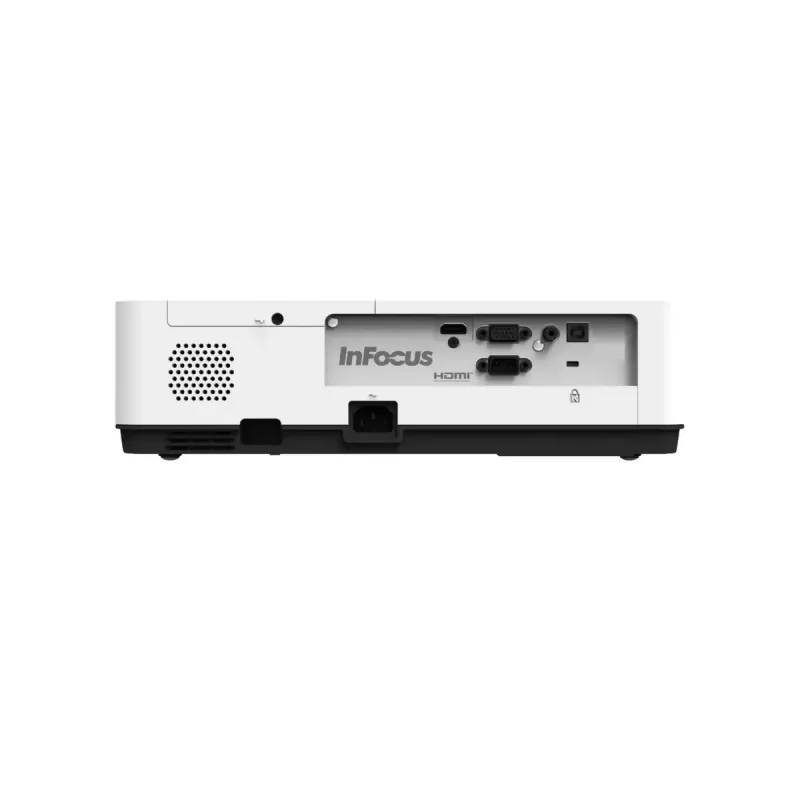

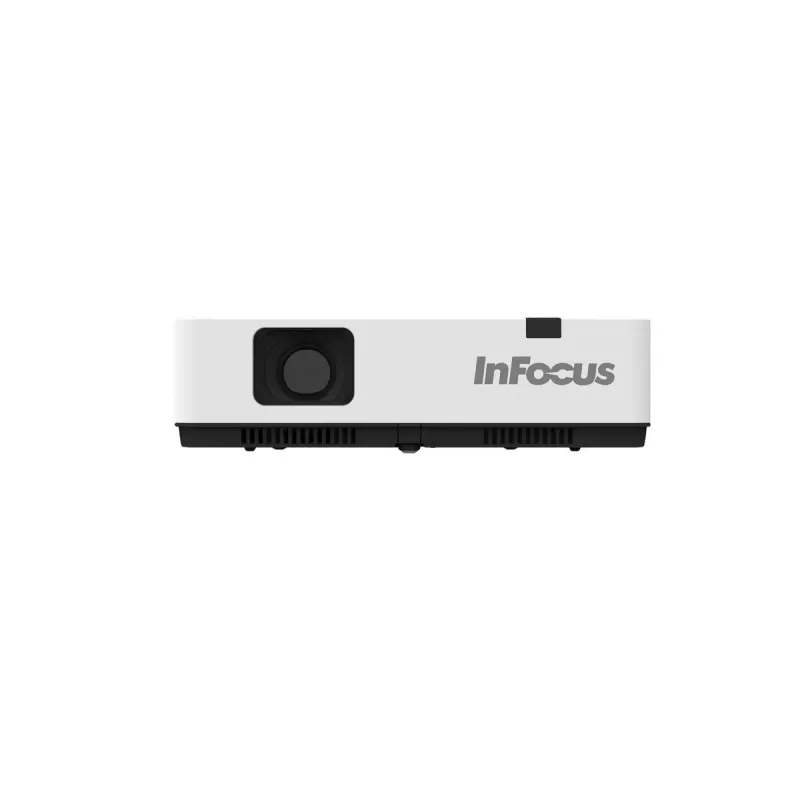

Proiettore dati InFocus IN1014 3400 ANSI lumen 3LCD XGA

The InFocus IN1014 is a 3LCD XGA data projector with a native 4:3 aspect ratio and 3400 ANSI lumens brightness. Designed for classrooms, meeting rooms and general presentation use, the IN1014 offers a balance of brightness, portability and image correction features. It supports input signals up to 3840 x 2160 (4K) @ 30Hz, includes USB display and memory viewer functions, and weighs about 3.1 kg for easy relocation.

Advantages

The projector delivers clear XGA (1024x768) images at 3400 ANSI lumens using 3LCD technology, while an advanced dynamic iris improves contrast for darker blacks and brighter highlights. Flexible connectivity options include USB-C/USB-A display over USB, display over LAN and standard video inputs. Built-in image correction tools — horizontal and vertical keystone, six-point pincushion and barrel adjustment — simplify setup on uneven or curved surfaces. Additional features such as logo capture, screen splicing and broad command-and-control compatibility expand its use in education and business environments.

Suitable for

• Classroom lessons and school presentations
• Office meetings and training sessions
• Small conference rooms and lecture halls
• Portable setup for temporary displays or shared spaces

Key specifications

• Projection technology: 3LCD
• Native resolution: XGA (1024 x 768), 4:3 aspect ratio
• Brightness: 3400 ANSI lumens
• Supported input signals: up to 3840 x 2160 (4K) @ 30Hz
• Contrast features: dynamic iris for optimized contrast
• Image correction: horizontal & vertical keystone, six-point pincushion & barrel adjustment
• Connectivity: USB-C/USB-A display over USB, USB-A memory viewer, LAN display, RJ45
• Weight: approx. 3.1 kg
• Product colour: White

How to use

Place the projector on a stable surface or mount it according to the room layout. Connect a video source using HDMI, USB-C/USB-A for display over USB, or network connection for display over LAN. Use manual focus and zoom to set the image size and clarity. Adjust horizontal and vertical keystone or use the six-point pincushion and barrel correction tools to correct distortion on uneven or curved projection surfaces. Configure logo capture or screen splicing as needed via the projector menu.

Recommendations

For best results in classroom or meeting environments, position the projector so the lens is centered to the screen, use ambient lighting control to improve perceived contrast, and update source device drivers when using display-over-USB or network display functions. Follow the lamp and maintenance guidelines in the user manual to preserve lamp life and image quality.
