Prolunga dritta Barrow G1/4" MF 40 — bianca (TNYZ-G40 w)

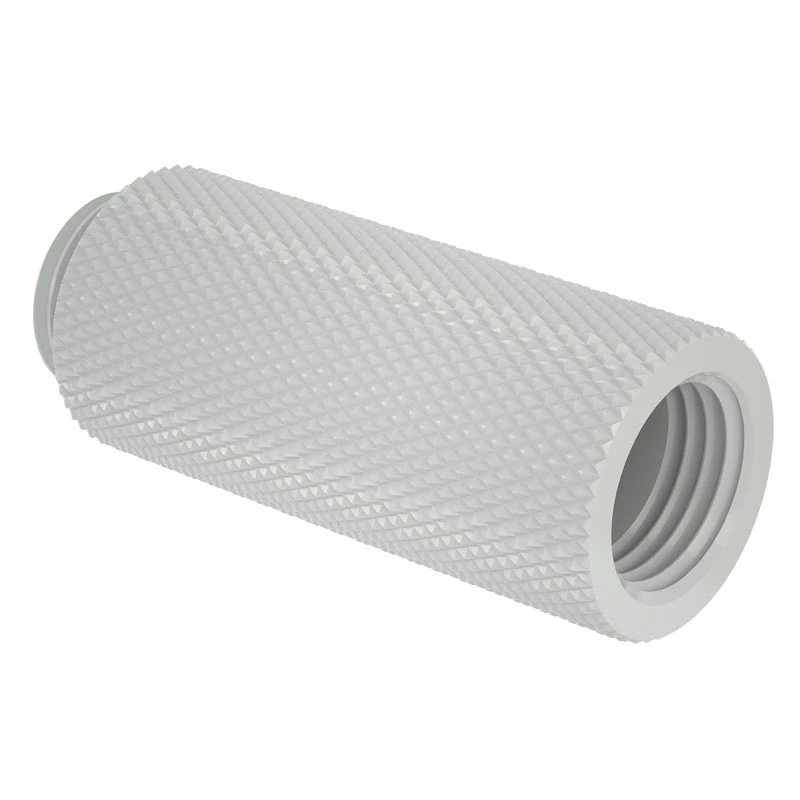

Barrow G1/4" straight extension fitting MF 40 — white (TNYZ-G40 w) is a metal inline adapter that extends G1/4" threaded connections by 40 mm. Built for use in low-pressure fluid systems, this straight extension fitting provides a direct connection between components with G1/4" male and female threads and is finished in white for visual consistency in installations such as PC water-cooling loops and custom plumbing assemblies.

Advantages

The straight extension fitting offers a precise 40 mm extension length and reliable G1/4" thread compatibility, ensuring consistent alignment and secure connections. Constructed from metal, it provides dimensional stability and resistance to deformation under normal operating conditions. The white finish allows integration with light-coloured tubing and chassis designs while maintaining a compact inline profile that does not add bends or offsets to the fluid path.

Suitable for

• PC liquid cooling loops and custom water-cooling builds
• Low-pressure fluid routing where a short inline extension is needed
• Plumbing assemblies requiring G1/4" thread continuity and precise spacing
• Pneumatic setups operating at low pressure that use G1/4" fittings

Key specifications

• Thread standard: G1/4" male to G1/4" female inline connection
• Extension length: 40 mm (inline distance added between threaded connections)
• Material: metal construction for durability and dimensional stability
• Finish: white coating suitable for visual matching in installations
• Form factor: straight inline adapter without bends or offsets
• Intended pressure range: suitable for low-pressure fluid and pneumatic systems (typical PC coolant pressures)

How to use

Thread the male end of the extension fitting into a compatible G1/4" female port or component and then attach the mating female side to the corresponding male-threaded component, ensuring both threads are clean and free of debris. Hand-start threads to avoid cross-threading, then tighten to a snug fit; final torque should follow the recommendations of the connected components or system builder. Use appropriate sealing (such as PTFE tape or thread sealant) only if required by the installation and compatible with system fluids.

Recommendations

Verify thread compatibility and orientation before installation, confirm that system pressure remains within the low-pressure range suitable for G1/4" fittings, and inspect threaded seals periodically for leakage. When used in PC water-cooling systems, avoid over-tightening to prevent damage to fittings or component ports.
