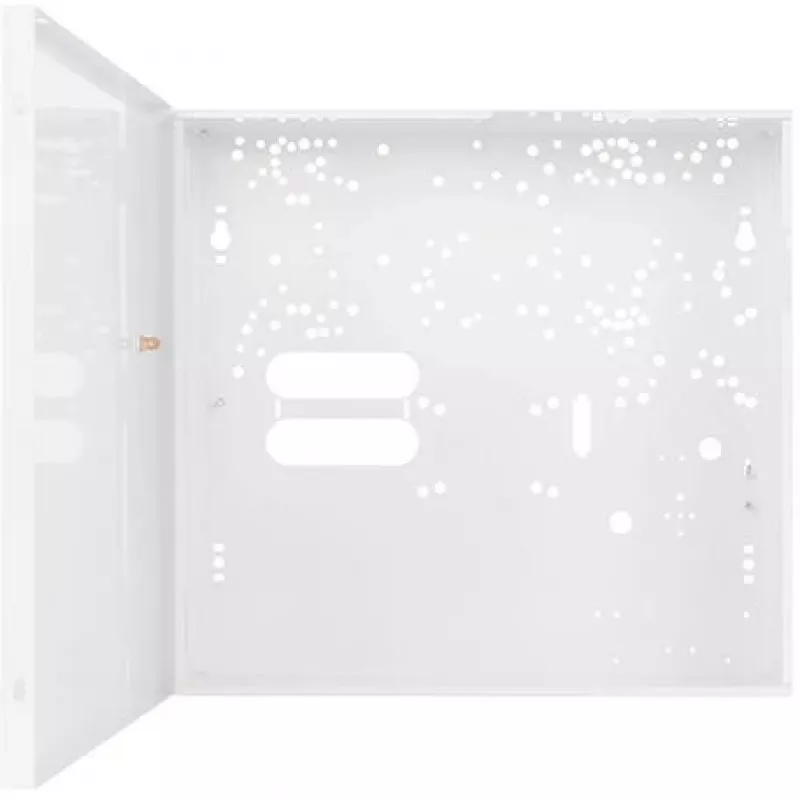

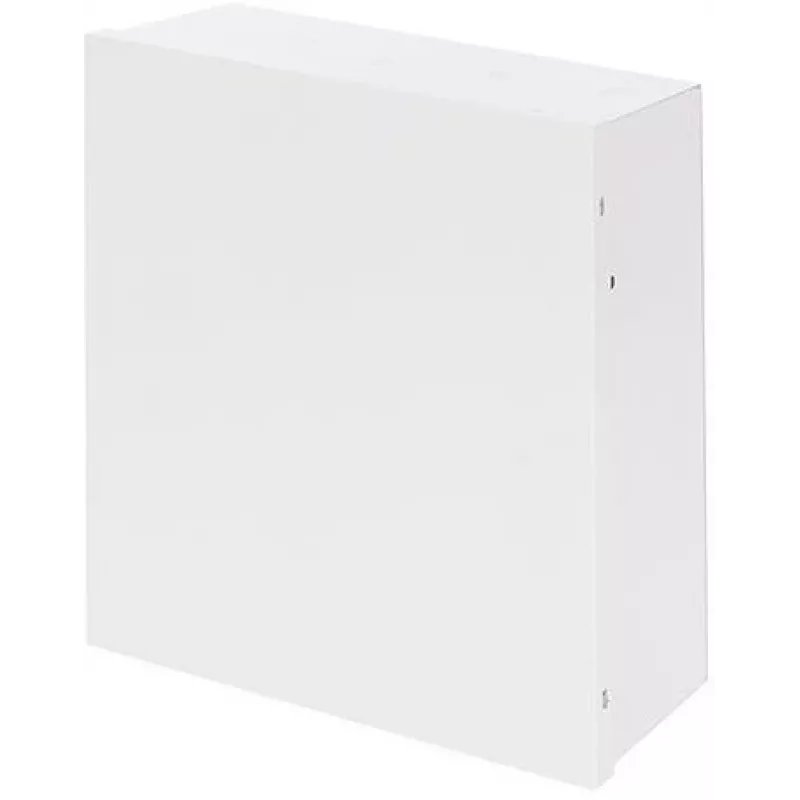

Pulsar AWO220EMT contenitore in metallo vuoto 17/40/DSPR/S/EMPTY bianco

The Pulsar AWO220EMT is a high-quality empty metal enclosure designed for alarm systems, access control, CCTV, and IT applications. Manufactured from 0.8 mm steel sheet with a white RAL 9003 finish, this surface-mounted enclosure offers robust protection for your electronic modules and power supplies.

Advantages

Durable steel construction with tamper protection ensures security. The hinged door with key lock (2 keys included) provides easy access while preventing unauthorized opening. Passive ventilation openings maintain optimal internal temperature, and multiple knock-out cable entry points allow flexible installation.

Suitable for

• Alarm system control panels
• Access control equipment
• CCTV system components
• IT and networking devices

Key specifications

• Material: Steel sheet, 0.8 mm thickness
• Colour: White (RAL 9003)
• Mounting: Surface-mounted
• Protection rating: IP20
• Tamper protection: Lid opening detection microswitch
• Lock: Key lock (2 keys included)
• Ventilation: Passive ventilation openings
• Cable entry: Multiple knock-out openings
• Usable internal depth: Approx. 160 mm
• Operating temperature: -10°C to +40°C
• Relative humidity: 20% to 90% (non-condensing)
• Certifications: CE, RoHS
• Grounding: Grounding terminal included

Recommendations

This enclosure is ideal for integrators and installers who need a reliable, empty housing for custom configurations. Ensure proper grounding and cable management for optimal performance.
