Raccordo EK Water Blocks ottone oro 7 mm altezza 2,3 cm diametro

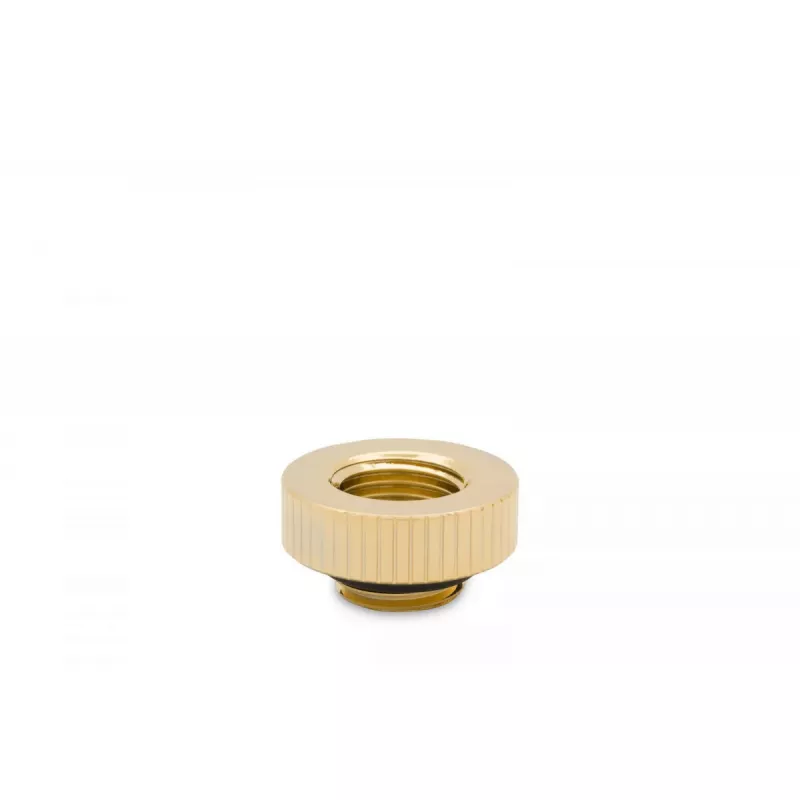

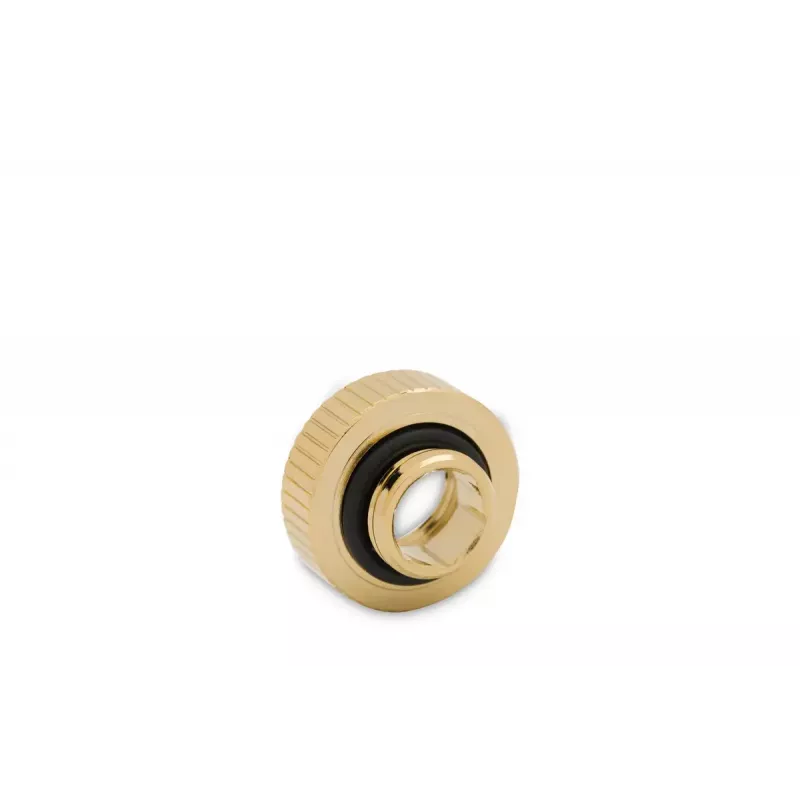

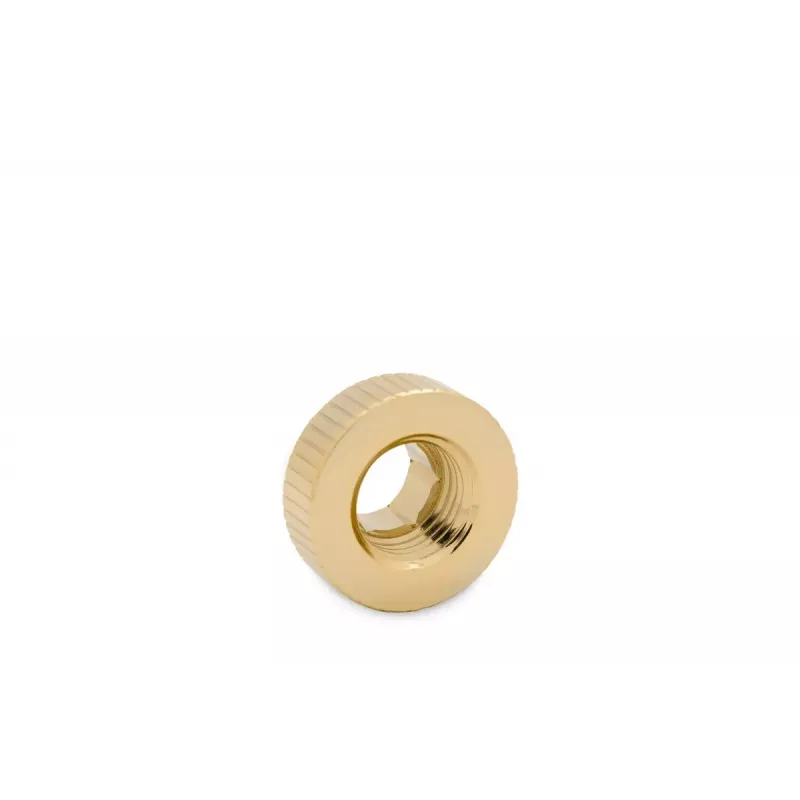

EK-Quantum Torque Extender Static MF 7 is a male+female G1/4" threaded extender designed to lengthen a port on a water-cooling block, radiator or other liquid-cooling component. It helps reduce tight bends and inaccessible fittings by providing additional reach between components while maintaining a fixed (non-revolving) connection. The extender is CNC-machined from brass, nickel-plated and finished with genuine gold plating, and it uses EPDM O-rings for sealing. Part of the EK-Quantum Torque family, this extender shares the series' industrial aesthetic and precise manufacturing quality.

Advantages

The static male+female G1/4" design provides a secure, fixed extension without rotation, simplifying hose routing in cramped builds. High-quality materials—CNC-machined brass with nickel and gold plating—offer corrosion resistance and a consistent visual finish. EPDM O-rings ensure reliable sealing. Being part of the Torque line, the extender matches other fittings and accessories for a cohesive system appearance.

Suitable for

• Extending G1/4" ports on water-cooling blocks
• Adding reach to radiators and reservoirs
• Reducing tight bends and improving fitting accessibility in compact PC cases

Key specifications

• Thread type: G1/4" male + female
• Type: Static extender (non-revolving)
• Material: CNC-machined brass with nickel plating and genuine gold finish
• Sealing: EPDM O-rings
• Manufacturer series: EK-Quantum Torque
• Height / visible size reference: 7 mm (product data)
• Diameter / visible size reference: 2.3 cm (product data)
• MPN / EAN: 3831109849842

How to use

Thread the extender into the component port (female end to component male thread or vice versa as applicable) and hand-tighten until contact is made with the O-ring seal; then secure with an appropriate wrench if needed, taking care not to over-tighten and damage the plating or O-rings. After installing the extender, connect the mating fitting, tube or hose and verify that the routing avoids excessive stress or sharp bends. Because this is a static extender, no rotation should be expected once installed.

Recommendations

Use the EK-Quantum Torque Extender Static MF 7 to increase port reach in tight spaces and to align fittings for straighter tubing paths. Inspect O-rings before installation and replace them if damaged. Avoid excessive torque to preserve plating and ensure long-term sealing performance.
