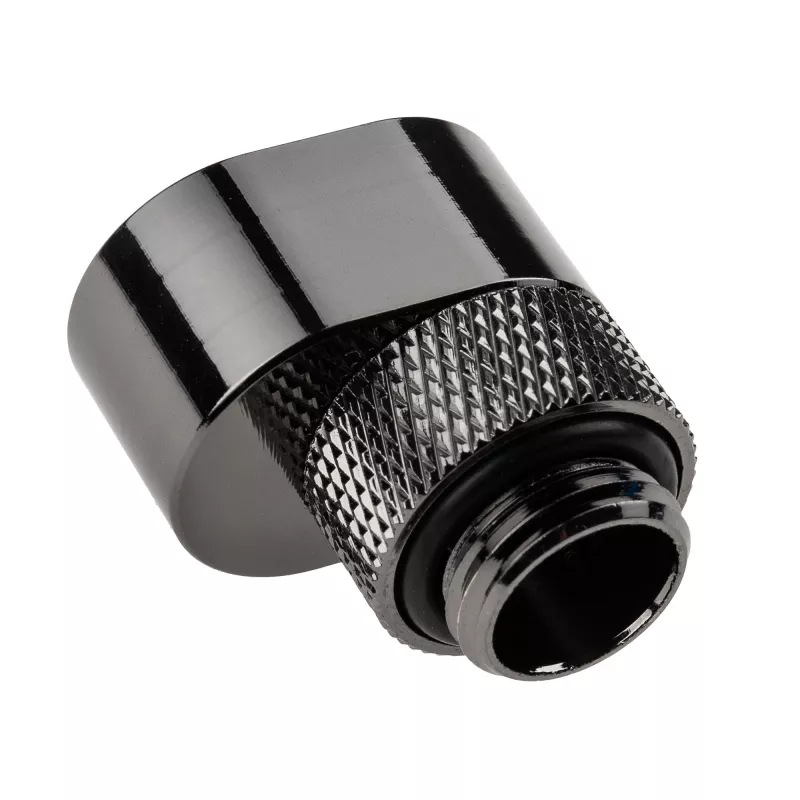

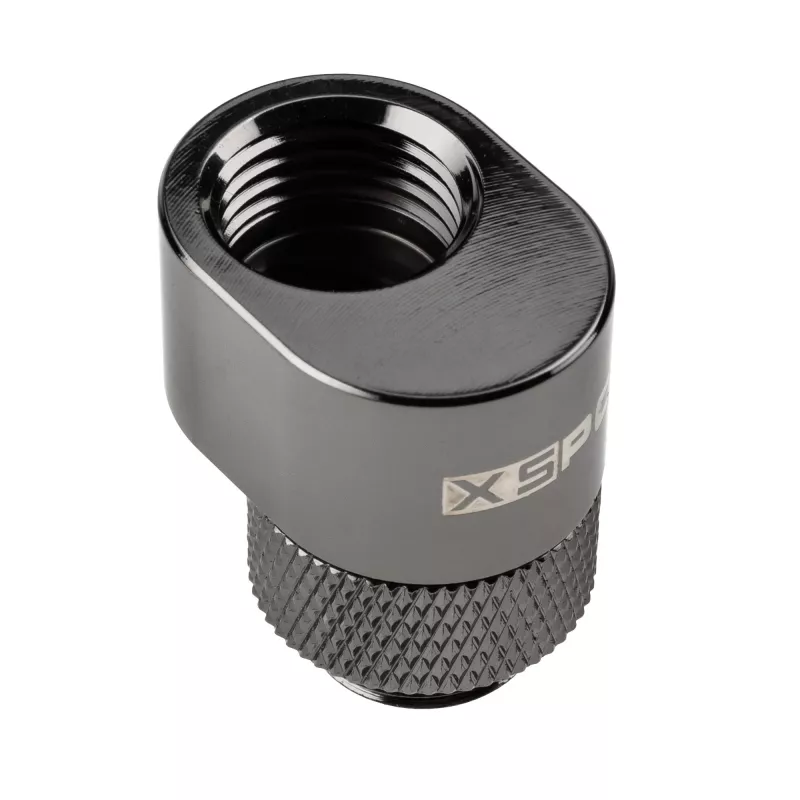

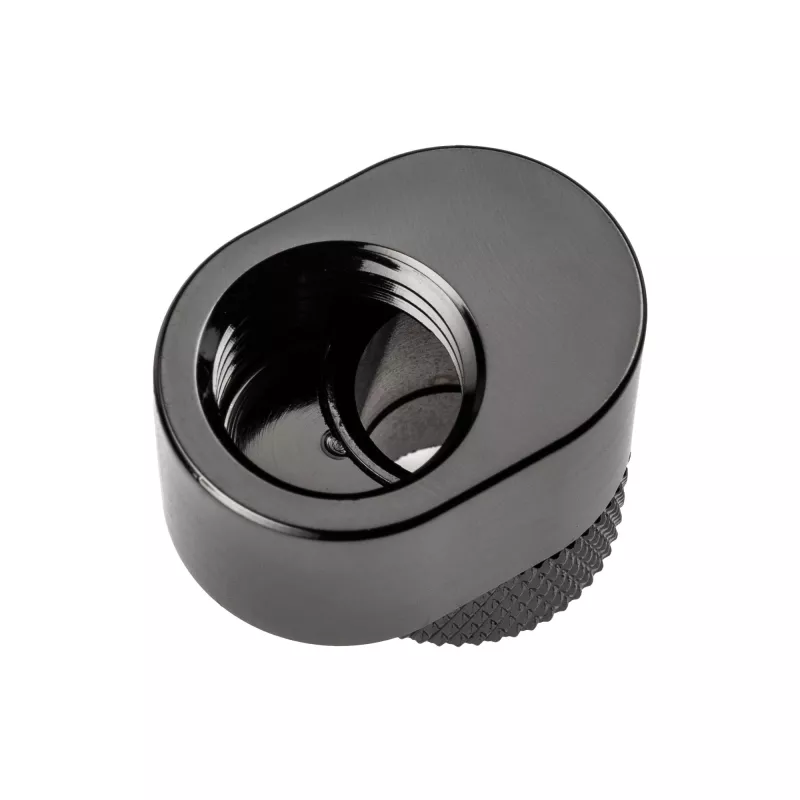

Raccordo offset rotante 7mm XSPC G1/4 in cromo nero di XSPC

The Rotary 7mm Offset Fitting XSPC G1/4 in Black Chrome is a G1/4 threaded rotary connector engineered for PC liquid cooling systems. It creates a 7 mm lateral offset between the threaded port and the tubing connection, enabling angled hose routing where straight fittings would cause stress or interfere with nearby components. The rotary function lets the fitting swivel during installation to align tubing precisely without twisting the hose or the cooling block.

Advantages

This fitting reduces mechanical strain on tubing and connectors by providing an adjustable angled connection with a 7 mm offset. The rotary joint allows clockwise and counterclockwise adjustment to achieve optimal orientation without forcing the tubing into position. The black chrome finish offers corrosion resistance and a subdued metallic appearance that integrates with a range of builds. The compact offset design helps manage tight clearances inside cases and around other water-cooling hardware.

Suitable for

• PC custom water-cooling loops requiring angled hose routing
• Installations with limited clearance near ports or blocks
• Setups where precise hose alignment is needed to prevent kinking

Key specifications

• Thread standard: G1/4 compatible threaded connection
• Offset distance: 7 mm lateral displacement from port axis
• Rotational feature: swivel/rotary joint for orientation adjustment
• Material and finish: metal construction with black chrome plating
• Connection type: fittings for flexible tubing in liquid cooling loops

How to use

Hand-start the fitting into a G1/4 threaded port to avoid cross-threading, then tighten with the appropriate wrench until secure while observing manufacturer torque recommendations for fittings. Connect flexible tubing to the barb or compression interface as applicable, ensuring the 7 mm offset directs the tubing along the desired path. Rotate the fitting as needed to align the tubing before fully securing clamps or compression rings, taking care not to over-tighten and distort the tubing.

Recommendations

Use the Rotary 7mm Offset Fitting in combination with compatible G1/4 components and tubing sizes recommended for your cooling loop. Inspect seals and hose clamps periodically for leaks, and avoid excessive bending radii at the offset to maintain flow integrity and prolong tubing life.
