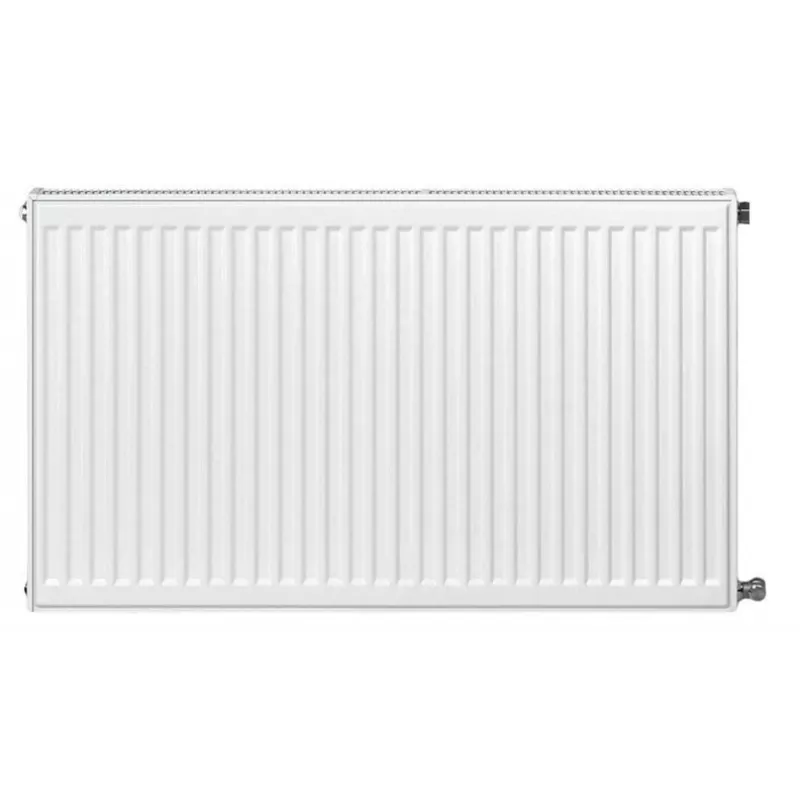

RADIATORE KLASIK-R 22 550X1100

The RADIATOR KLASIK-R 22 550X1100 is a high-quality panel radiator designed for efficient and reliable heating in residential and commercial spaces. Manufactured from premium steel with a durable powder-coated finish in white (RAL 9016), this Type 22 double panel double convector radiator delivers exceptional heat output while maintaining a sleek, classic appearance.

Advantages

This radiator offers superior heat distribution thanks to its double panel and double convector design, ensuring rapid warm-up and consistent comfort. The corrosion-protected steel construction guarantees long-lasting performance, while the wall-mounted installation saves valuable floor space. With a maximum operating pressure of 10 bar and temperature tolerance up to 110°C, it is built to withstand demanding heating systems.

Suitable for

• Central heating systems in homes, offices, and public buildings
• Replacement or new installations requiring a Type 22 radiator
• Rooms where a classic, clean white radiator is desired

Key specifications

• Type: Panel Radiator, Type 22 (Double Panel, Double Convector)
• Dimensions: Height 550 mm x Width 1100 mm x Depth 100 mm
• Heat Output: 2096 W (ΔT 50K), 1070 W (ΔT 30K)
• Water Volume: 6.7 Liters
• Connection: Side connection with 4 x G 1/2" internal thread
• Max. Operating Pressure: 1.0 MPa (10 bar)
• Max. Operating Temperature: 110 °C
• Surface Finish: Powder coated, White (RAL 9016)
• Standard Compliance: EN 442

Recommendations

For optimal performance, ensure proper sizing based on room heat loss calculations. Professional installation by a qualified heating engineer is recommended. Pair with compatible thermostatic radiator valves for precise temperature control.
