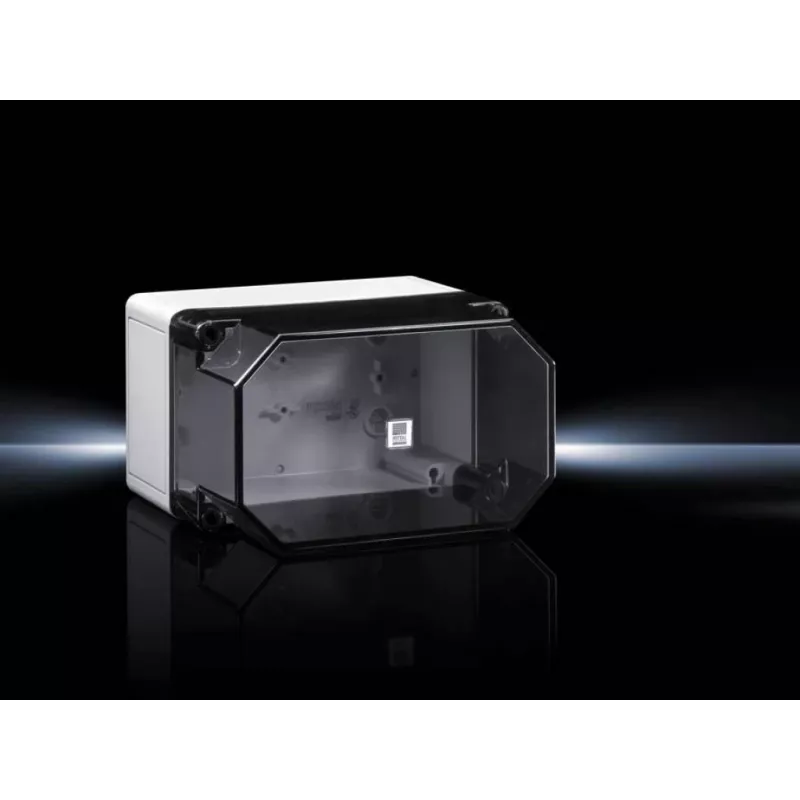

Rittal PK 9516.100 custodia in policarbonato, 180x165x110 mm, grigio chiaro, IP66

This compact polycarbonate enclosure delivers robust protection for electrical and electronic components in demanding industrial environments. Its IP66 rating and impact resistance make it a reliable housing for control systems, sensors, and terminal blocks.

Advantages

The enclosure is crafted from halogen-free, silicone-free polycarbonate, offering excellent chemical resistance and durability. The light grey RAL 7035 finish provides a clean, professional appearance suitable for a wide range of applications. Quick-release plastic screws on the lid allow for fast access without tools, reducing maintenance time. The textured surface resists scratches and hides fingerprints, keeping the enclosure looking new even in high-traffic areas.

Suitable for

• Industrial control panels and junction boxes
• Outdoor sensor housings (with appropriate cable glands)
• Marine and offshore installations requiring corrosion resistance
• Food processing equipment where hygiene and chemical washdowns are common
• Renewable energy systems such as solar inverters and wind turbine controls

Key specifications

• External dimensions: 180 mm width x 165 mm depth x 110 mm height
• Material: Polycarbonate (PC), halogen-free and silicone-free
• Colour: Light grey (RAL 7035)
• Protection: IP66 and NEMA 4X
• Impact resistance: IK08
• Operating temperature: -35 °C to +80 °C
• Flammability rating: UL 94 V-2
• Lid: Opaque with 4 quick-release plastic screws
• Mounting: Direct wall mounting or with accessories
• Approvals: UL, cUL, VDE, CSA, Germanischer Lloyd, EAC

Recommendations

For optimal sealing, use appropriate cable glands and ensure the lid screws are tightened evenly. When mounting outdoors, consider additional UV protection if prolonged direct sunlight is expected. Pair with Rittal mounting plates and cable entry accessories for a complete solution.
