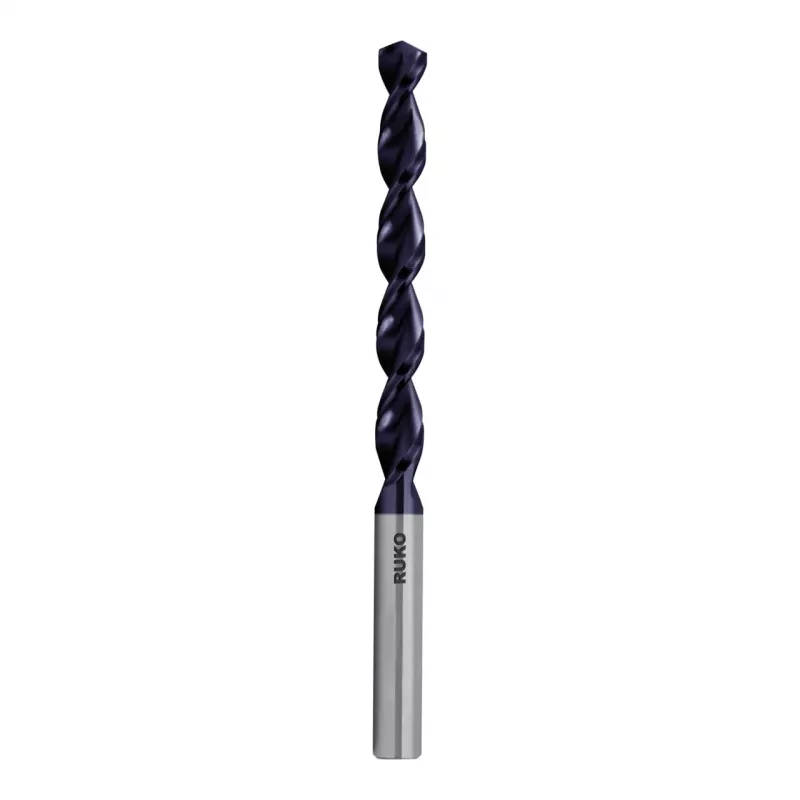

Punta elicoidale RUKO SPB-DIN338-HSS-TiAlN 1,0 mm

Twist drill bit with TiAlN coating, engineered for high-performance drilling in steel up to 1100 N/mm² tensile strength. The titanium aluminum nitride coating provides high heat and wear resistance, ensuring long tool life and reliable performance.

Advantages

Ground from solid HSS with a 130° point angle for excellent self-centering and precise hole positioning. The TiAlN coating reduces friction and enhances chip evacuation, enabling efficient drilling in a wide range of materials.

Suitable for

• Steel
• Cast iron
• Non-ferrous metals
• Plastics
• Wood

Key specifications

• Drill bit type: Twist drill bit
• Standard: DIN 338
• Material: High-speed steel (HSS)
• Coating: Titanium aluminum nitride (TiAlN)
• Diameter: 1.0 mm
• Overall length: 34 mm
• Working length (flute length): 12 mm
• Shank type: Cylindrical
• Point angle: 130°
• Cutting direction: Right-hand cutting
• Tolerance: h8
• Manufacturing process: Ground from solid
• Max material tensile strength: 1100 N/mm²
• Colour: Bronze/Anthracite

Recommendations

For best results, use appropriate cutting speed and feed rate based on the material being drilled. Apply cutting fluid when drilling metals to extend tool life.
