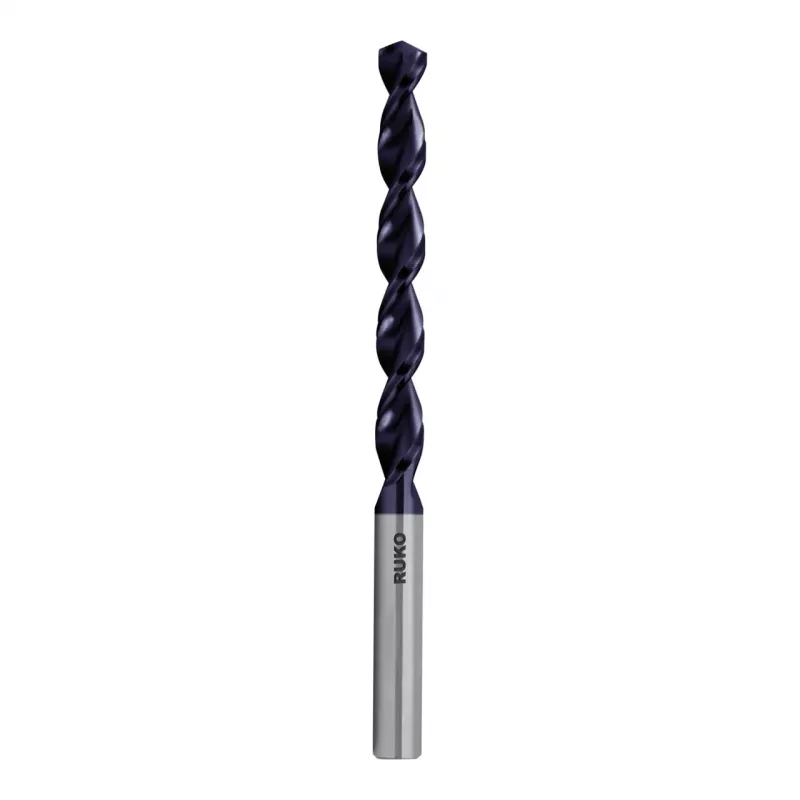

Punta elicoidale RUKO SPB-DIN338-HSS-TiAlN 13,5 mm

Precision-ground HSS twist drill bit with TiAlN coating for high-performance drilling in steel, alloyed steel, cast iron, non-ferrous metals, and plastics. The 13.5 mm diameter and DIN 338 standard make it a reliable choice for industrial and workshop applications.

Overview

This RUKO twist drill bit is manufactured from high-speed steel (HSS) and features a titanium aluminum nitride (TiAlN) coating, providing excellent wear resistance and heat resistance up to 800°C. The split point design ensures self-centering and reduces walking, while the fully ground flutes deliver precise holes.

What stands out

• TiAlN coating for extended tool life and high-temperature performance
• Split point tip for accurate positioning without center punching
• DIN 338 standard dimensions for compatibility with standard drill chucks
• Suitable for a wide range of materials including steel, cast iron, and non-ferrous metals

Technical details

• Drill bit type: Twist drill bit
• Standard: DIN 338
• Material: High-speed steel (HSS)
• Coating: Titanium aluminum nitride (TiAlN)
• Drill diameter: 13.5 mm
• Shank type: Cylindrical
• Shank diameter: 13.5 mm
• Overall length: 151 mm
• Working length: 101 mm
• Point angle: 130°
• Point type: Split point
• Tolerance: h8
• Cutting direction: Right-hand
• Manufacturing process: Fully ground

Our verdict

A professional-grade drill bit that delivers precision and durability for demanding drilling tasks.
