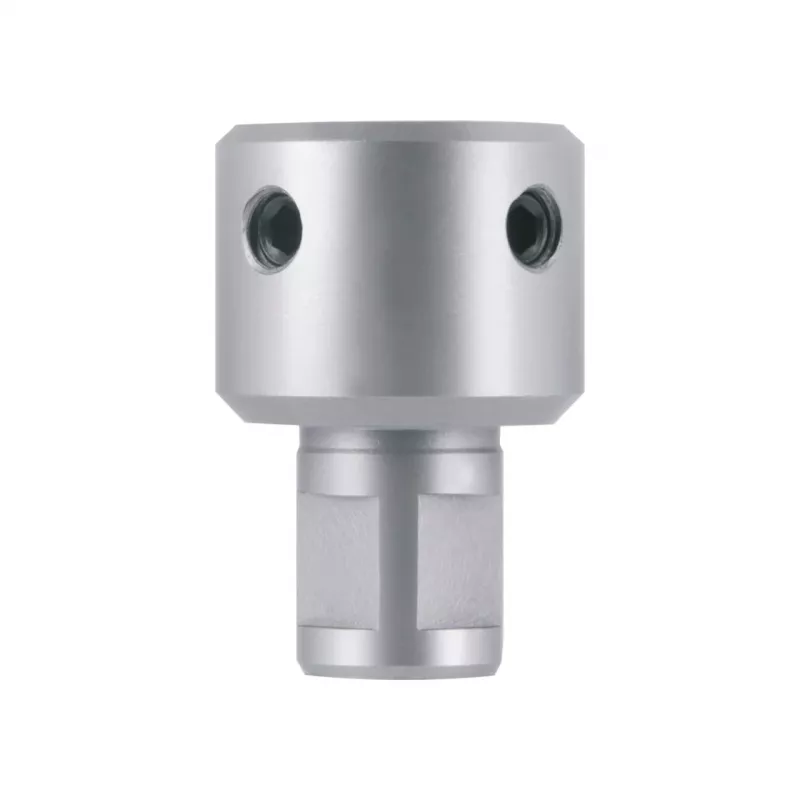

RUKO adattatore per KEB Quick-In su Weldon

In CNC machining, the mismatch between a KEB Quick-In holder and a Weldon-shank tool can halt production. This adapter bridges that gap, allowing tools with Weldon shanks to be securely mounted in KEB Quick-In holders.

Who is it for

Machinists and CNC operators who use KEB Quick-In tool holding systems and need to run Weldon-shank drills, reamers, or milling cutters.

Main features

• Converts KEB Quick-In interface to Weldon shank (DIN 1835 B)
• Accepts tools with 19 mm (3/4 inch) Weldon shank
• Side lock clamping for secure tool retention
• Precision ground for high concentricity and runout accuracy
• Hardened high-grade tool steel for wear resistance
• External coolant supply compatible

Specifications

• Adapter Type: Quick-In to Weldon
• Machine Side Interface: KEB Quick-In
• Tool Side Interface: Weldon Shank (DIN 1835 B)
• Weldon Shank Diameter: 19 mm (3/4 inch)
• Material: High-grade Tool Steel
• Clamping Mechanism: Side Lock
• Coolant Supply: External
• Standard Compliance: DIN 1835 B
• System Type: Modular Tool Holding System
• Corrosion Resistance: Yes

Tips

Ensure the Weldon shank flat is aligned with the side lock screw for proper clamping. Use with KEB Quick-In holders for quick tool changes.
