RUKO HGB Set maschi per filettatura a mano M10 x 0,75 mm DIN 2181, 2 pezzi, HSS-G

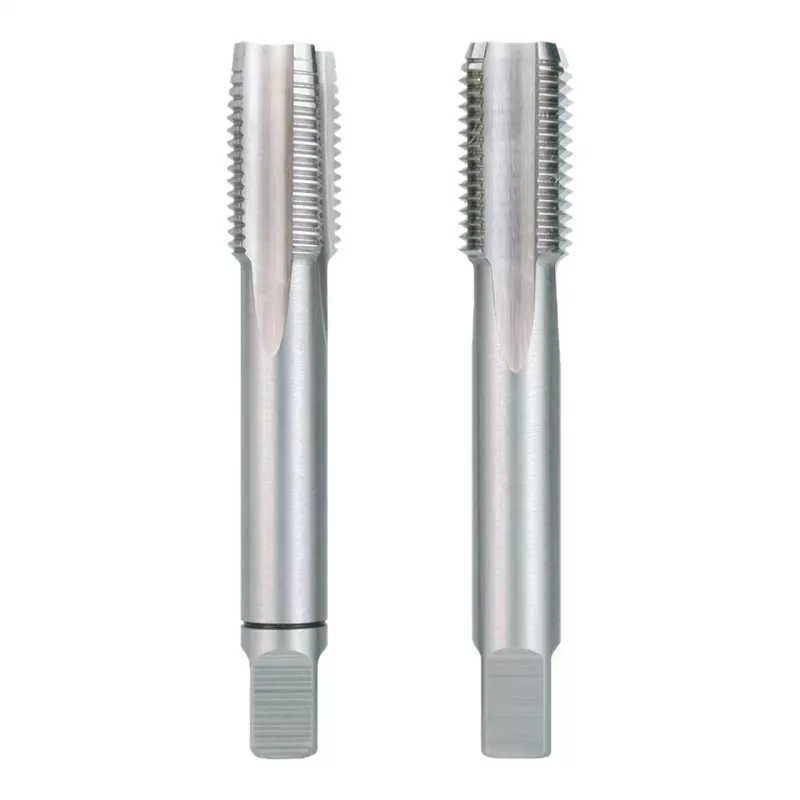

Hand tap set for cutting metric fine threads with a nominal diameter of 10 mm and a pitch of 0.75 mm. The set includes a pre-cutter and a finishing tap, both made of high-speed steel (HSS-G) with a bright finish. The taps conform to DIN 2181 and have a right-hand cutting direction with ISO 2 (6H) thread tolerance. They are suitable for unalloyed and low-alloyed steels up to 800 N/mm².

Advantages

The two-piece set enables efficient thread cutting: the pre-cutter removes most of the material, and the finishing tap produces the final precise thread. HSS-G provides good wear resistance and cutting performance in steel. The bright finish reduces friction and improves chip flow.

Suitable for

• Unalloyed and low-alloyed steels up to 800 N/mm²
• Through holes and blind holes (with appropriate technique)
• Manual thread cutting with a tap wrench

Key specifications

• Thread: M10 x 0.75 (metric fine)
• Standard: DIN 2181
• Material: HSS-G
• Cutting direction: right-hand
• Thread tolerance: ISO 2 (6H)
• Total length: 70 mm
• Thread length: 22 mm
• Shank diameter: 7.0 mm
• Square size: 5.5 mm
• Recommended core hole diameter: 9.25 mm

Recommendations

Use a suitable cutting oil or lubricant to extend tool life and improve thread quality. Ensure the tap is aligned perpendicular to the workpiece. For blind holes, clean chips regularly.
