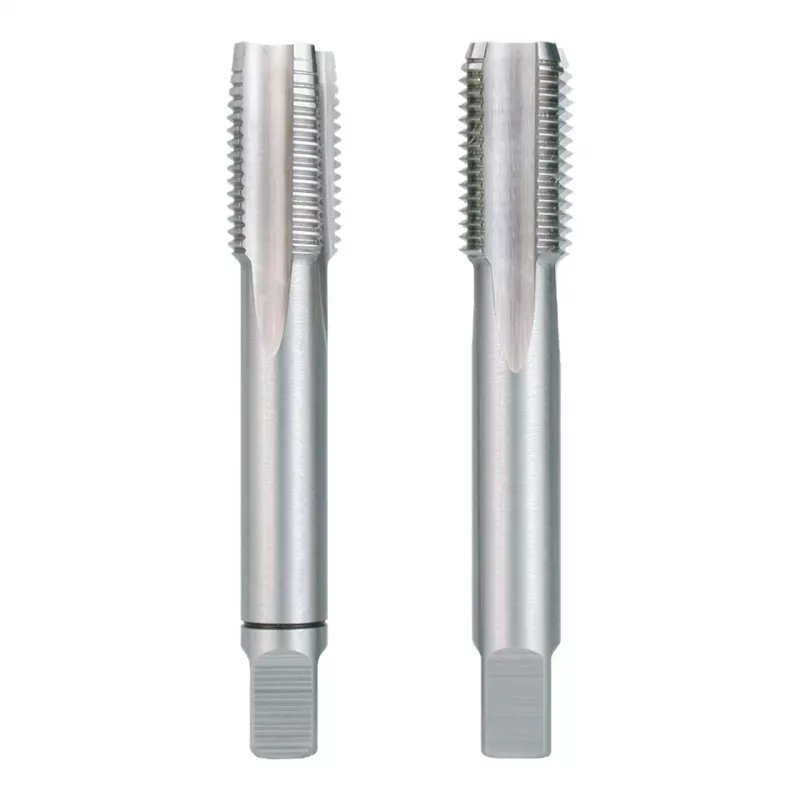

RUKO HGB-Set set di 2 maschi a mano DIN 2181 M13 x 1,0 metrica fine HSS-E

Precision hand tap set for cutting M13 x 1.0 metric fine threads. The two-piece set includes a pre-cutter and a finishing tap, enabling clean, accurate threads in through and blind holes. Made from HSS-E high-speed steel with cobalt for enhanced durability and heat resistance.

Advantages

HSS-E cobalt steel provides high wear resistance and long tool life. The two-tap system reduces cutting force and improves thread quality. Suitable for a wide range of materials including steel, stainless steel, cast iron, and non-ferrous metals.

Suitable for

• Steel
• Stainless steel
• Cast iron
• Non-ferrous metals

Key specifications

• Thread type: Metric Fine (MF)
• Thread size: M13 x 1.0
• Standard: DIN 2181
• Material: HSS-E (High Speed Steel with Cobalt)
• Number of pieces: 2
• Set composition: Pre-cutter and finishing tap
• Cutting direction: Right-hand cut
• Tolerance class: ISO 2 (6H)
• Surface finish: Bright (uncoated)
• Shank type: Square drive
• Recommended core hole diameter: 12.0 mm
• Overall length per tap: 90 mm
• Shank diameter per tap: 10.0 mm
• Square drive size per tap: 8.0 mm

Recommendations

Use with appropriate cutting oil for best results. Ensure correct core hole diameter before tapping.
